2026 Redline Release 29 1 SM/15.5 5'4"-5'7"

Get in Touch

    Description

    2026 Redline Release 29 1 SM/15.5 5'4"-5'7"

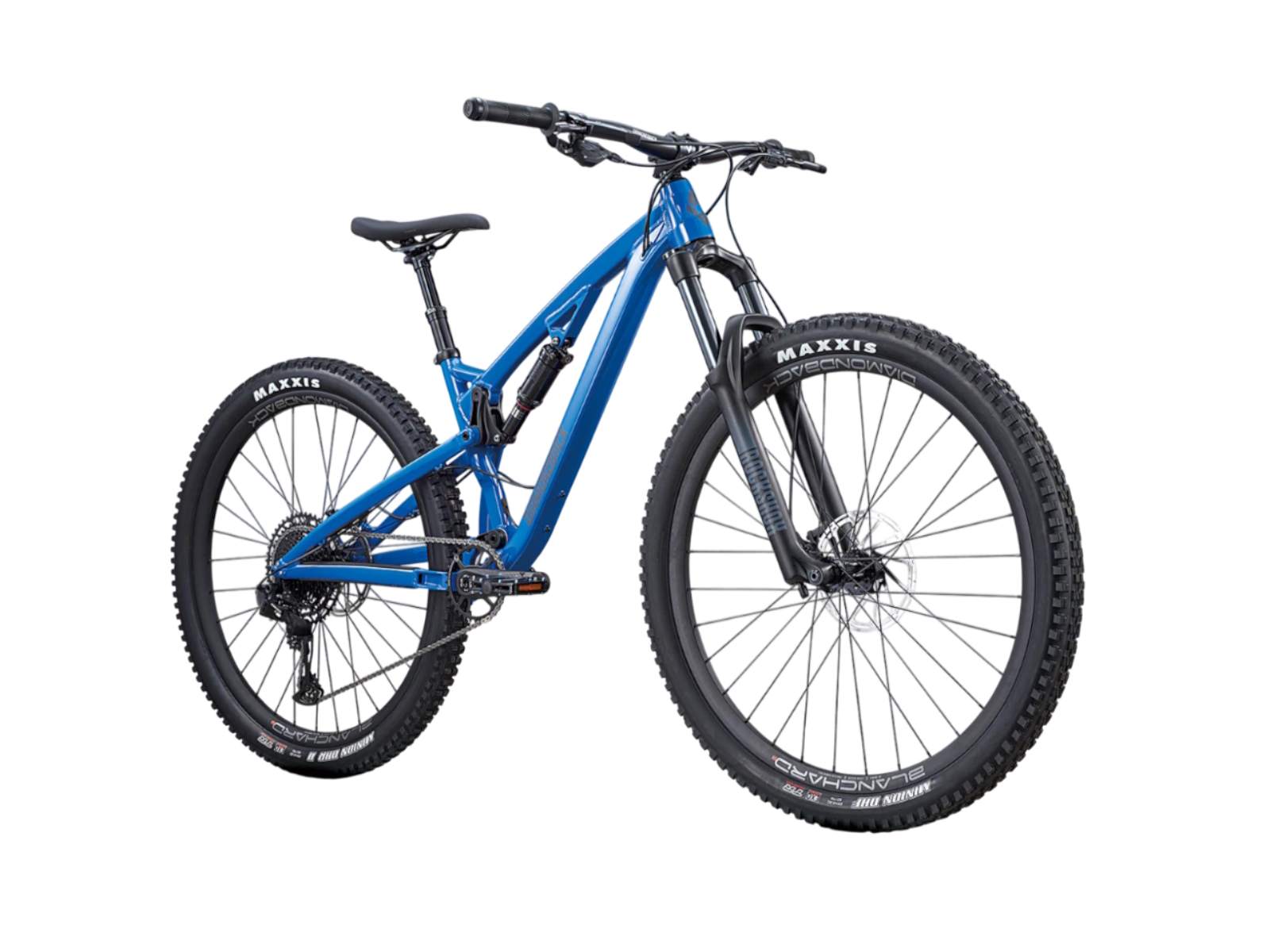

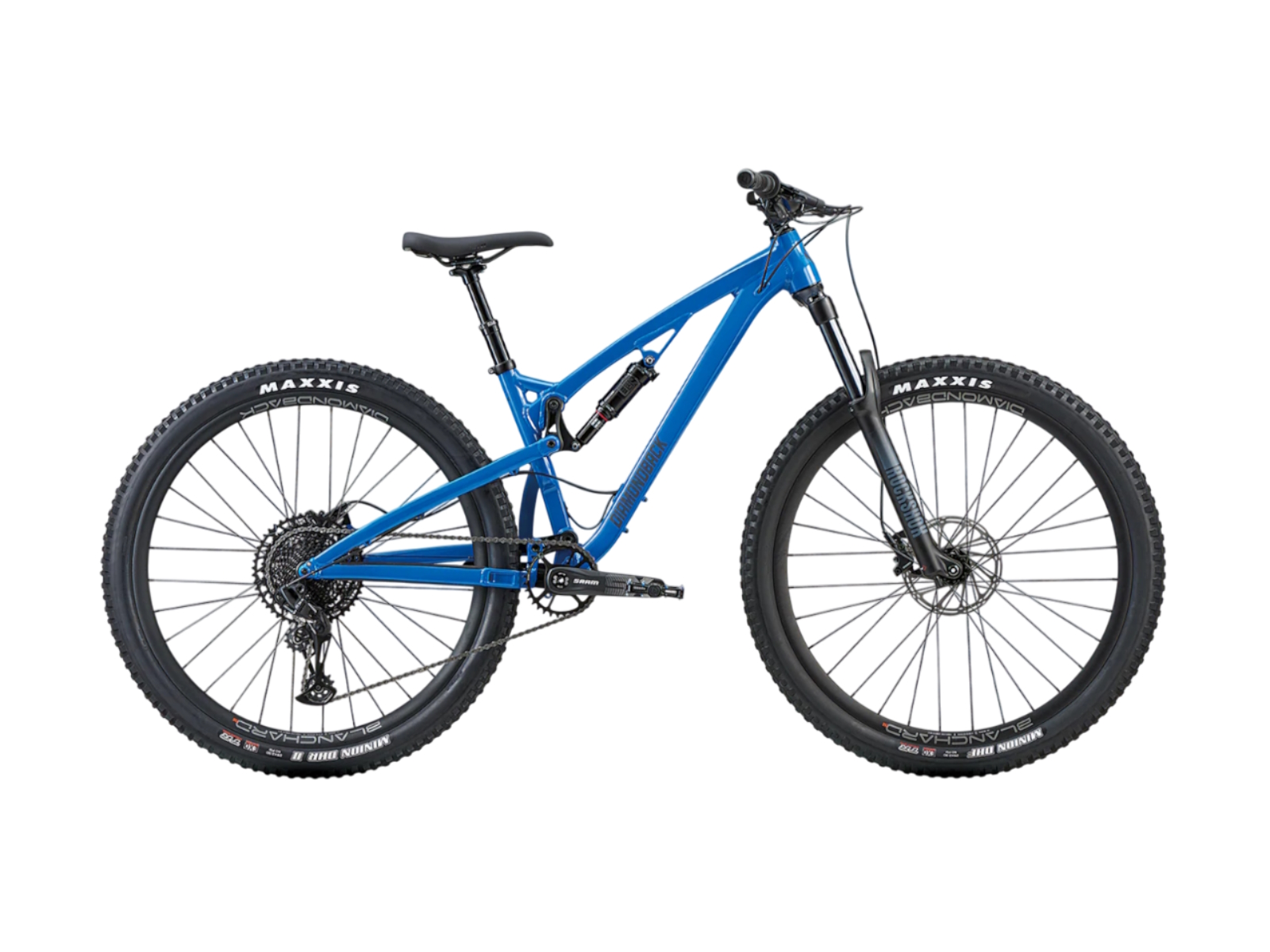

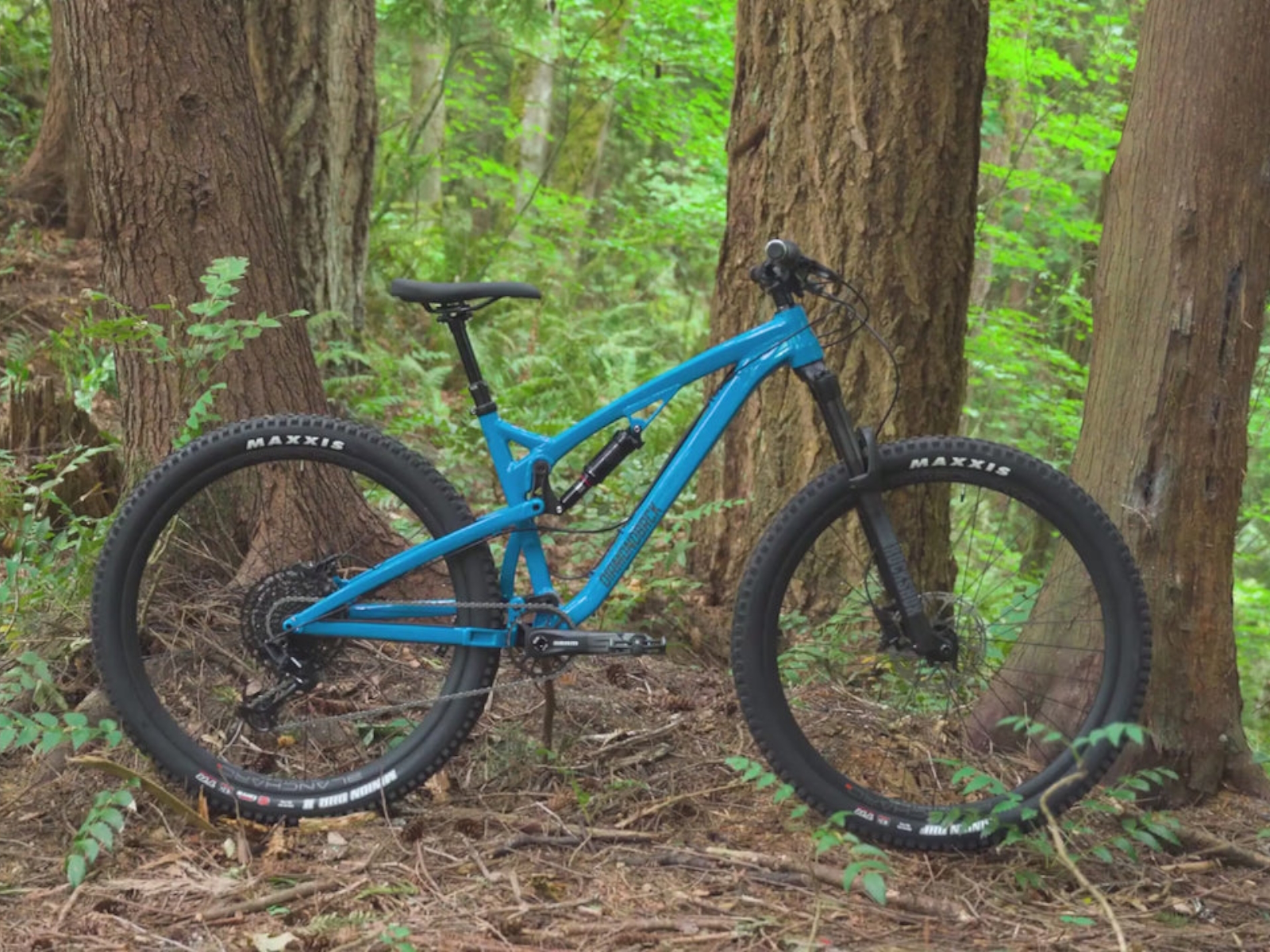

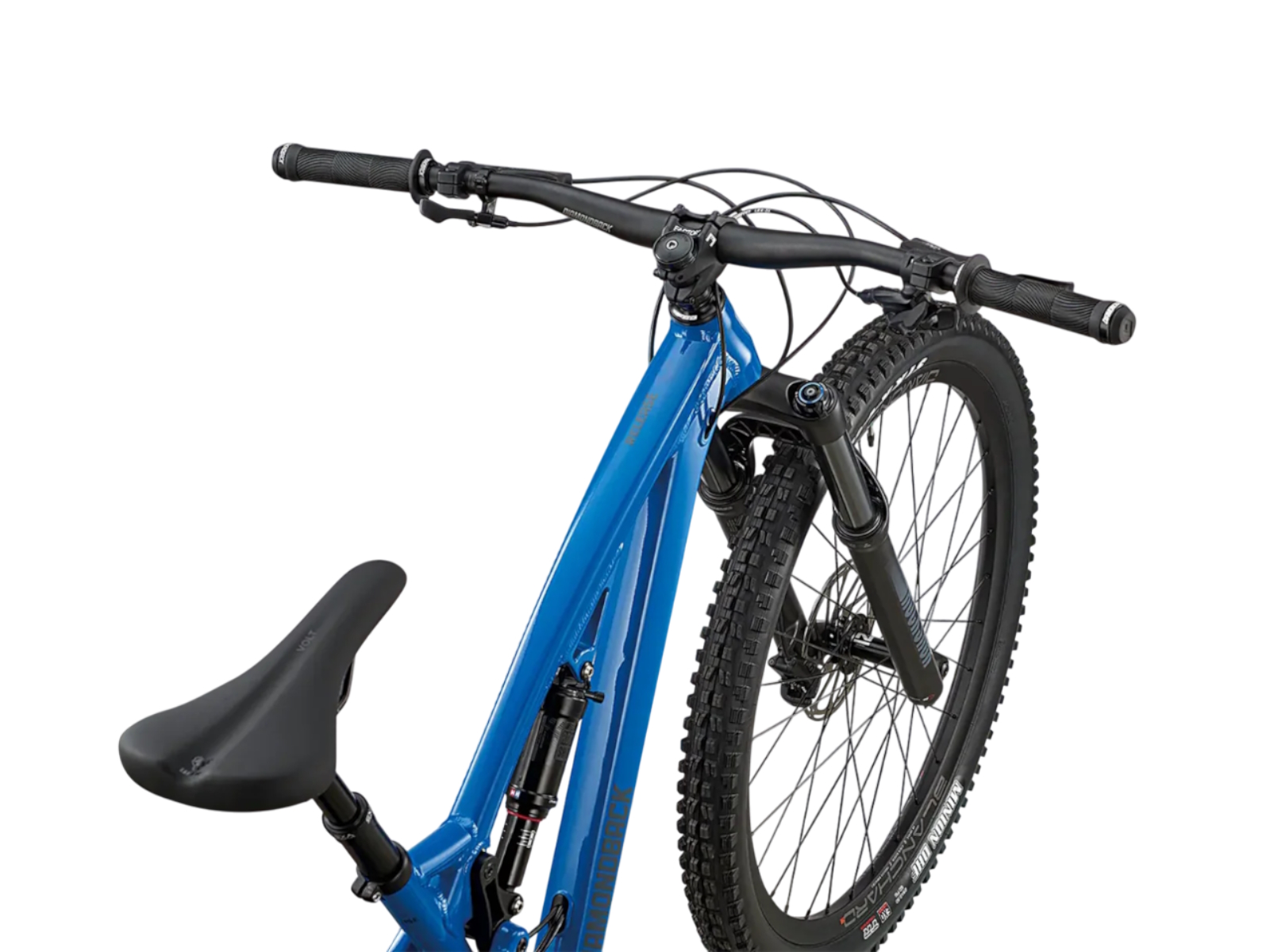

    The Release 29 1 is a big-wheeled ripper made for long days and big lines. This aluminum 29er is built on a 130mm travel Level Link suspension platform. We’ve adjusted the geometry for 29-inch wheels while keeping the same playful attitude of all our Level Link bikes. A RockShox 35 Silver suspension fork and a RockShox Monarch R rear shock soak up the rough stuff, while Sram SX Eagle drivetrain components keep you cranking. Our Blanchard wheelset is tubeless ready and comes with 2.3-inch wide Maxxis Minion tires for unwavering traction. When it’s time to slow down, SRAM Level hydraulic disc brakes keep you on your line all the way down the mountain.

    Features May Include:

    • Crankset

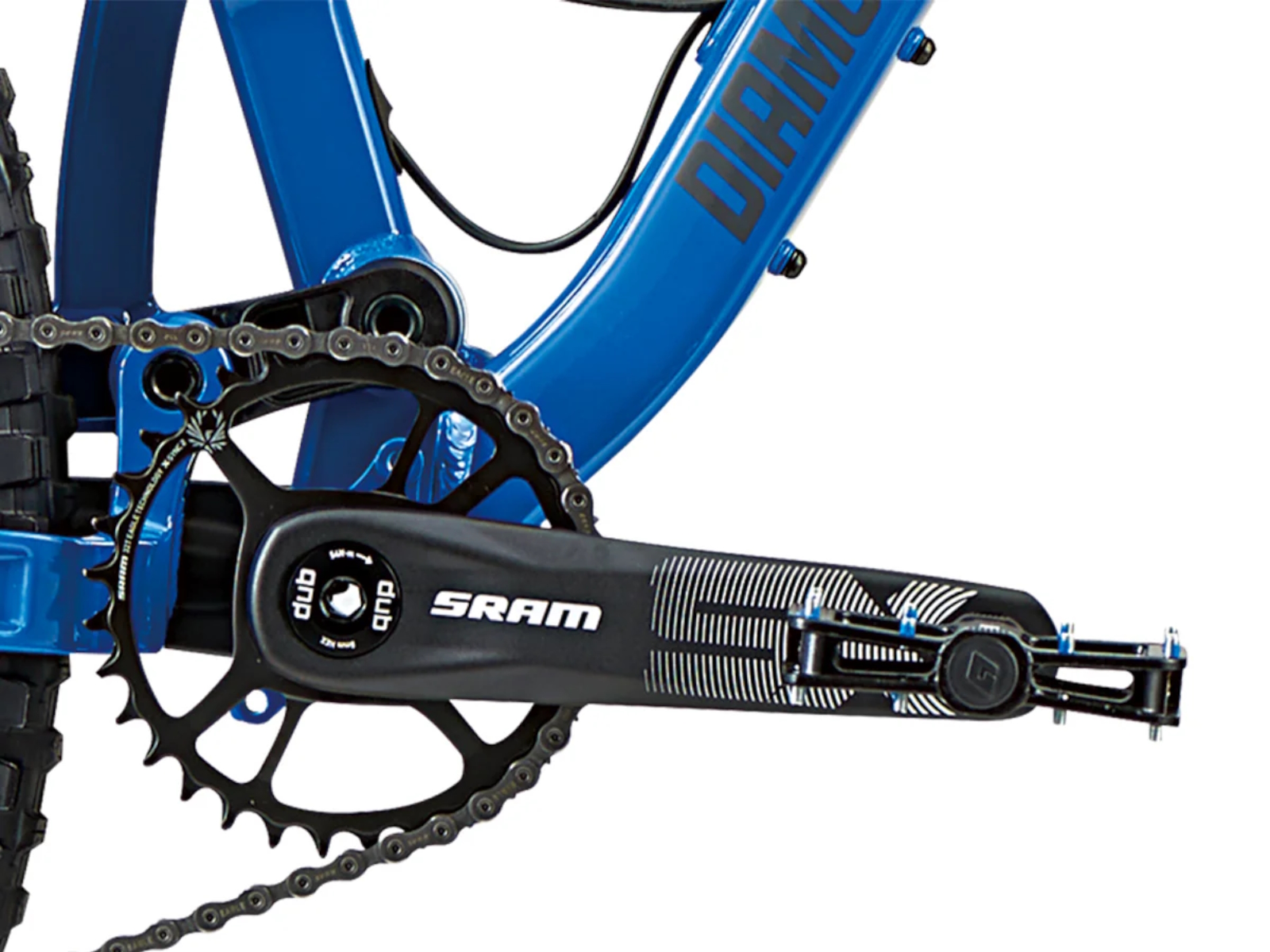

      SRAM Eagle SX 1x drivetrain technology is lighter, more durable and easier to use. Same chain retention performance as seen in all of the higher-level Eagle drivetrain cranks.
    • Fork

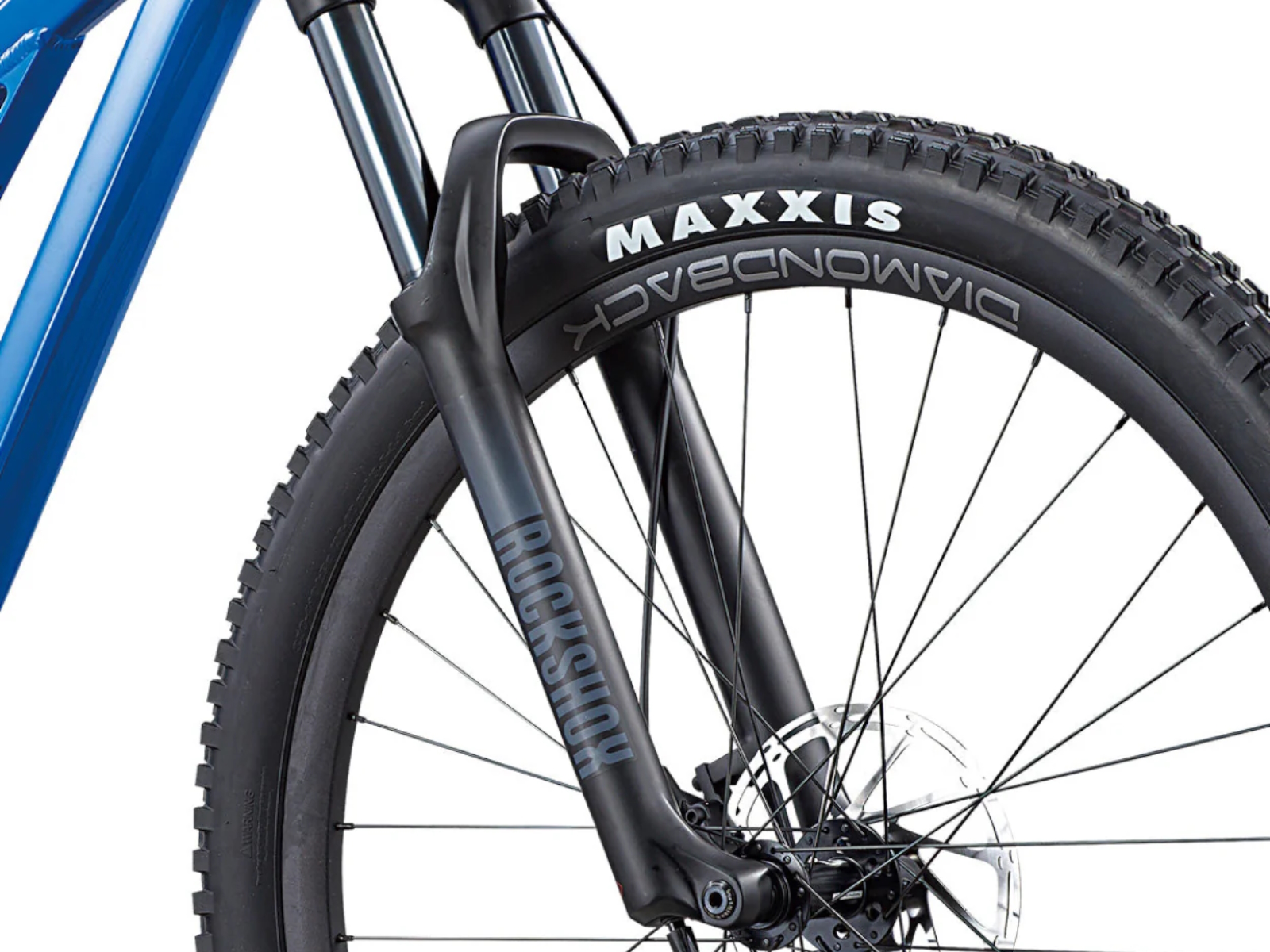

      The RockShox 35 Silver is a robust and versatile suspension fork designed for mountain biking, offering performance features suitable for trail and enduro riders. 140mm of Travel, TurnKey Lock-Out, 15x110mm, 1.5" Tapered Steer.
    • Rear Derailleur

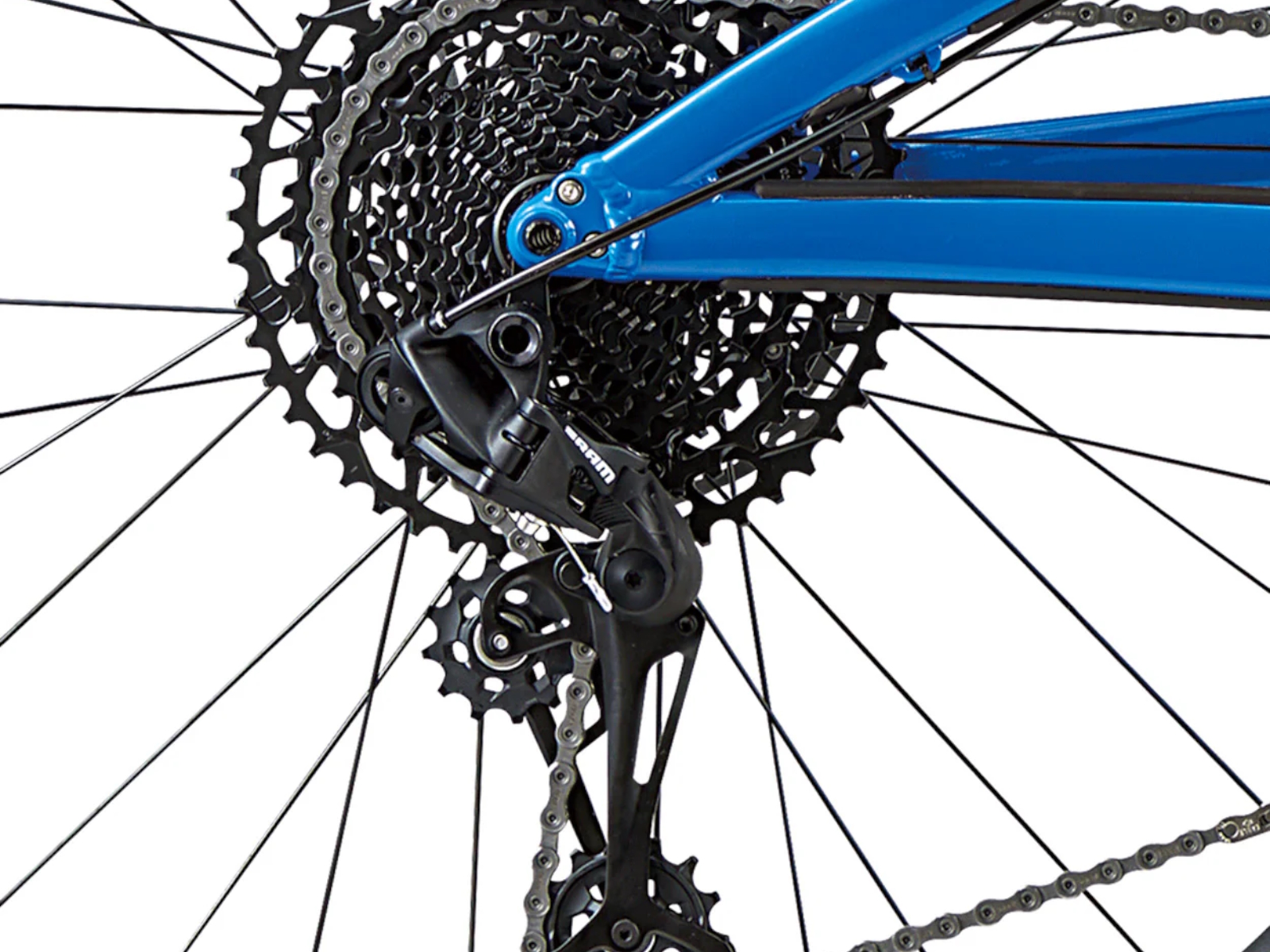

      SRAM SX Eagle 12 Speed rear derailleur uses X-SYNC™ pulley technology, providing greater efficiency, crisper shifting, and quieter operation.

    Info

    Industry

    Powersports

    Make

    Redline

    Model

    Release 29 1

    Trim

    SM/15.5 5'4"-5'7"

    Year

    2026

    MSRP

    2850

    Category

    Bicycle

    Subcategory

    Mountain


    Specs

    Chassis

    Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube

    Rear Shocks

    RockShox Monarch R, 200x57mm

    Wheels

    Diamondback Blanchard 28R, Taped for Tubeless, 32h

    Front Tire

    Maxxis Minion DHF 29x2.3" EXO, TR (Tubeless Ready), Folding

    Rear Tire

    Maxxis Minion DHR II 29x2.3" EXO, TR (Tubeless Ready), Folding

    Height

    Rider: 5 ft 4 in - 5 ft 7 in | Bike Stand Over Height: 775.0 mm | Bike Bb Height : 348.0 mm

    Length

    Bike Seat Tube Length: 394.0 mm | Bike Top Tube Length: 585.0 mm

    Wheelbase

    1134.0 mm
