Description

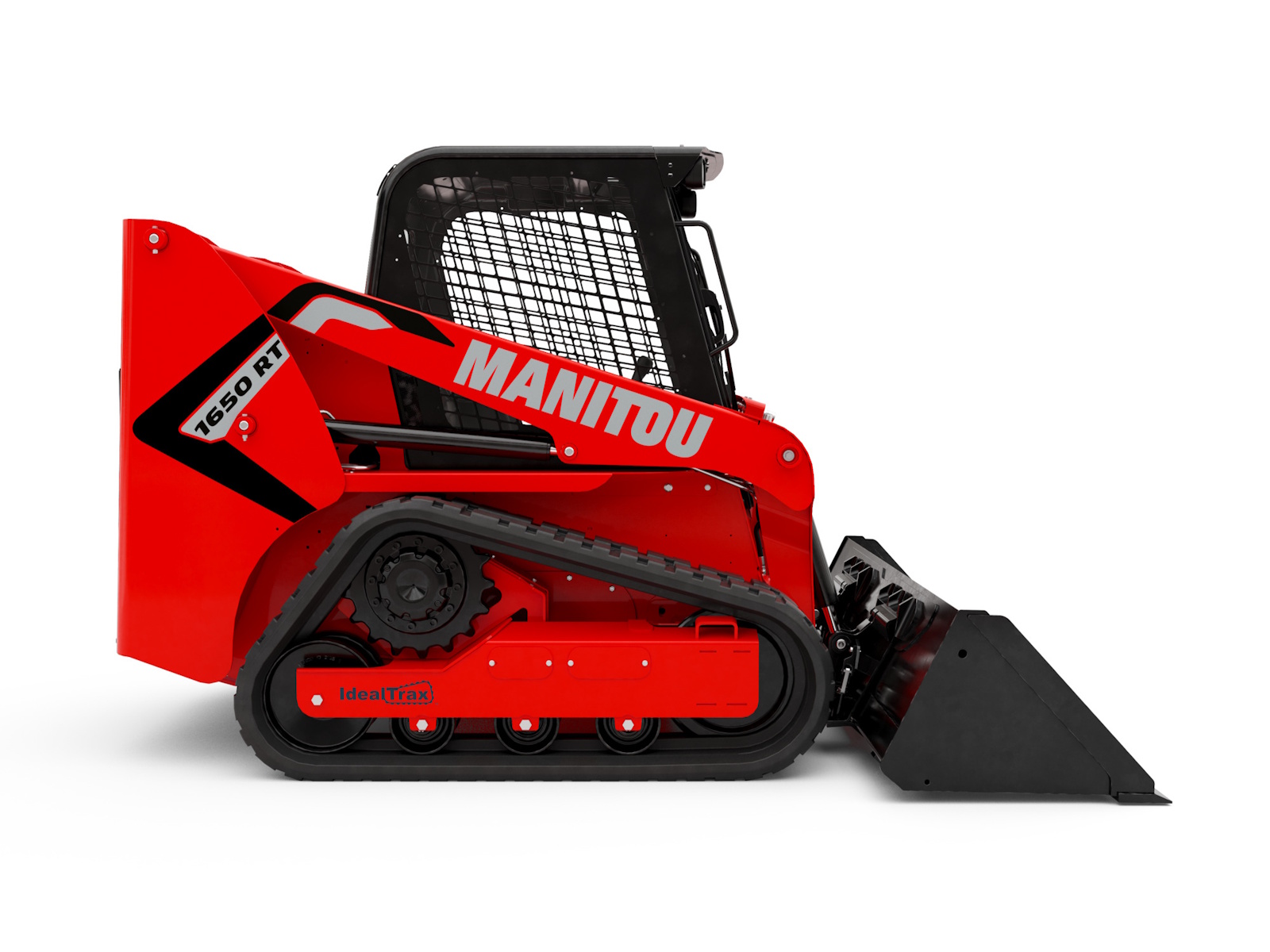

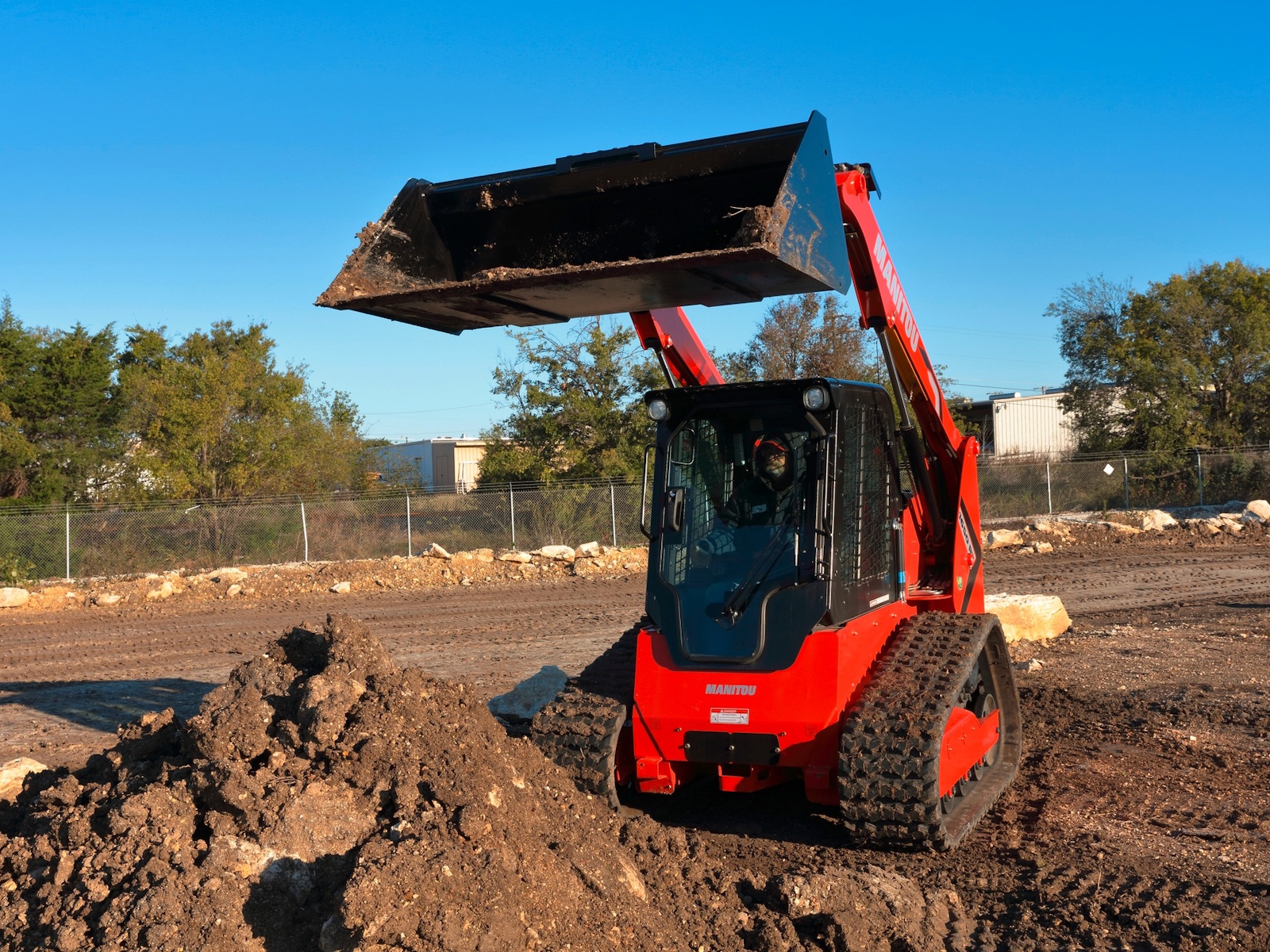

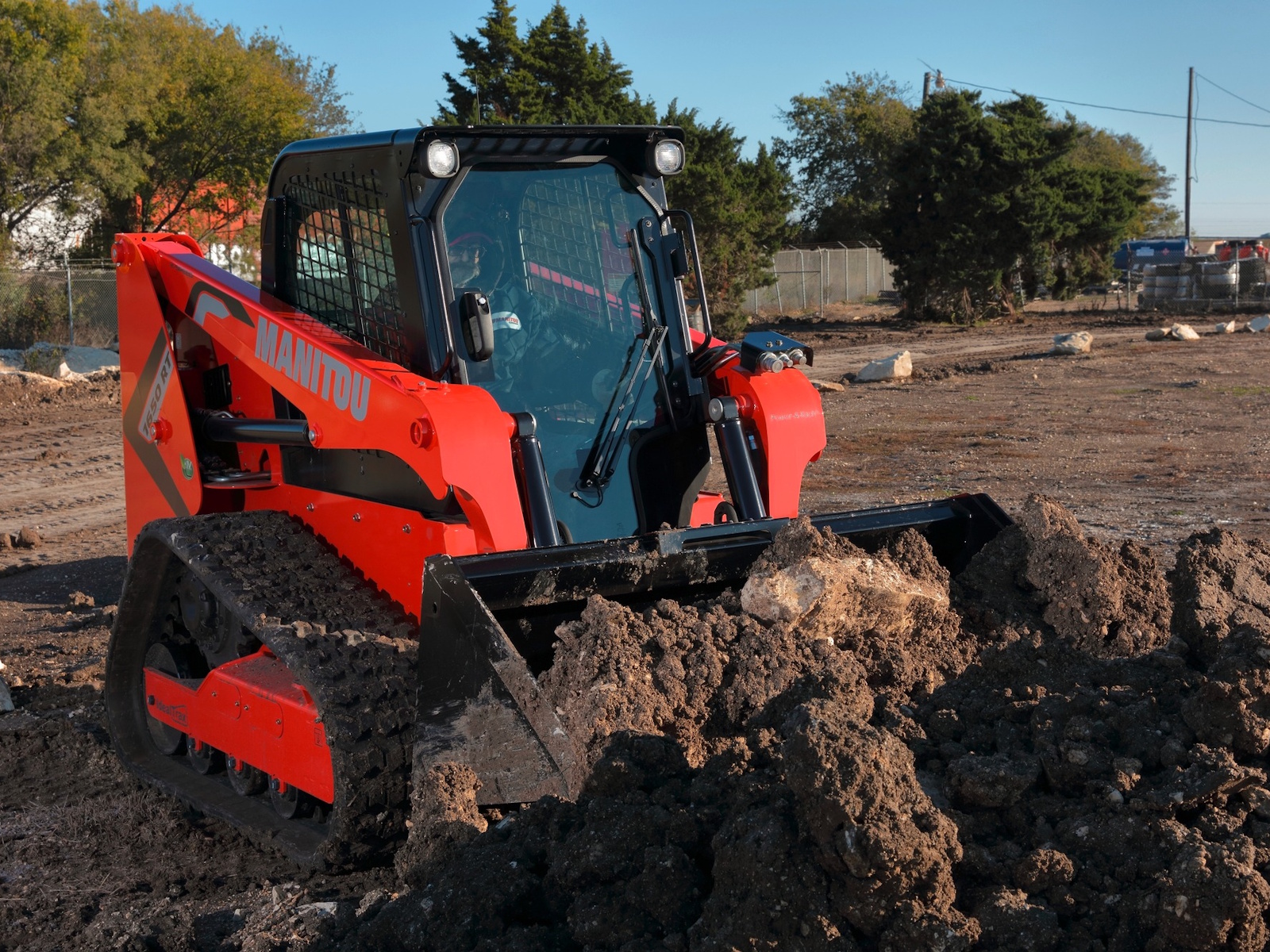

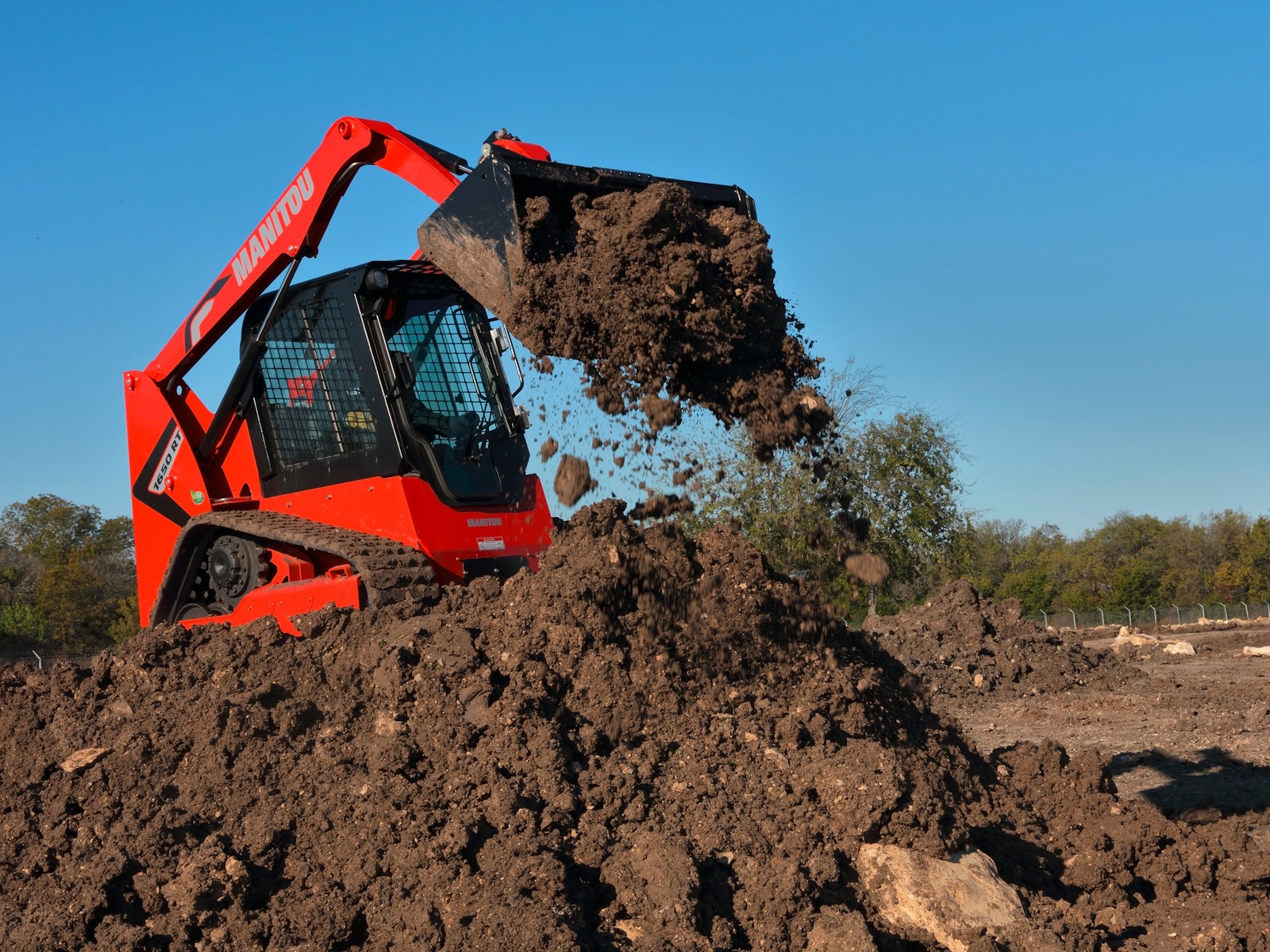

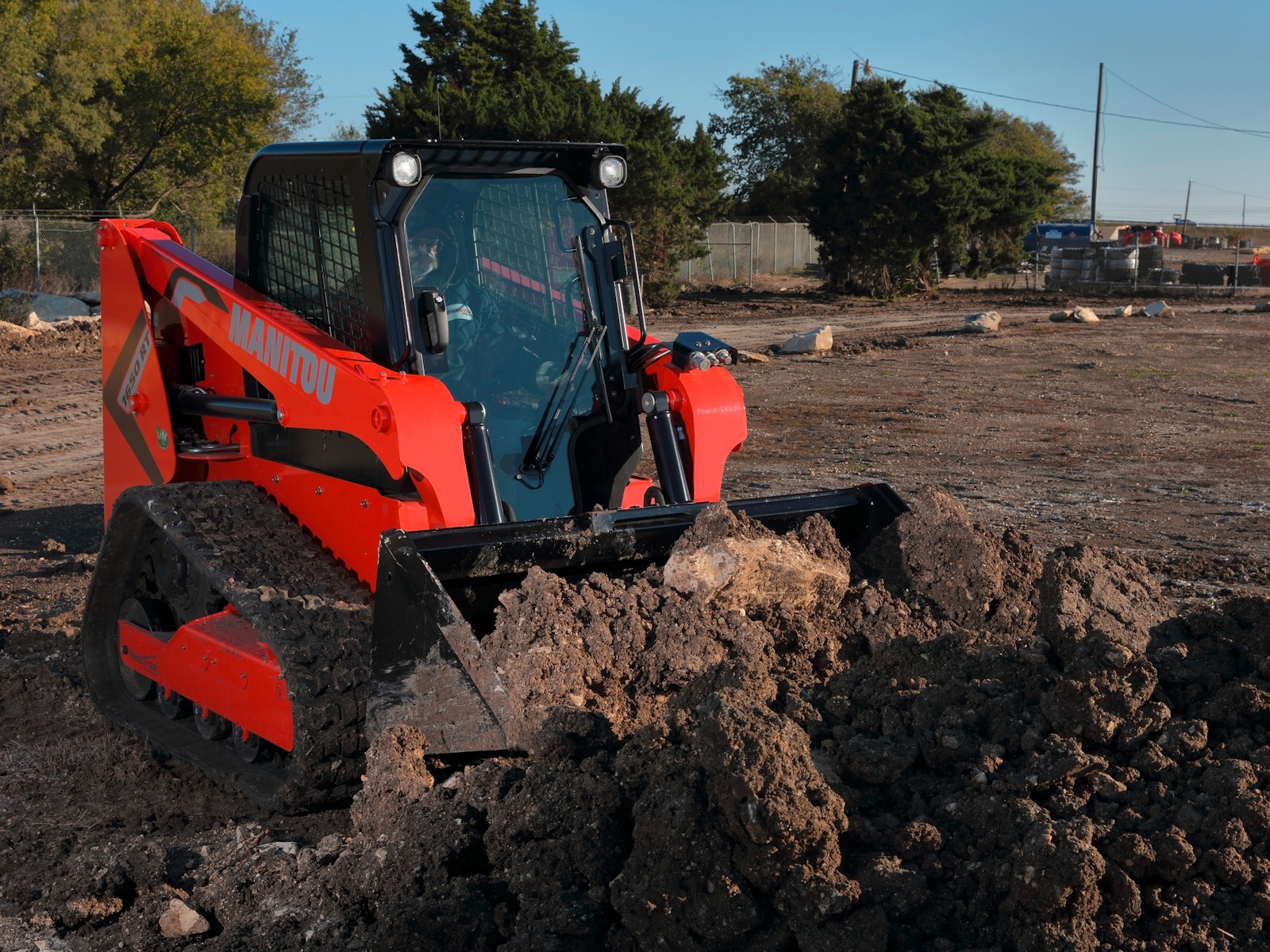

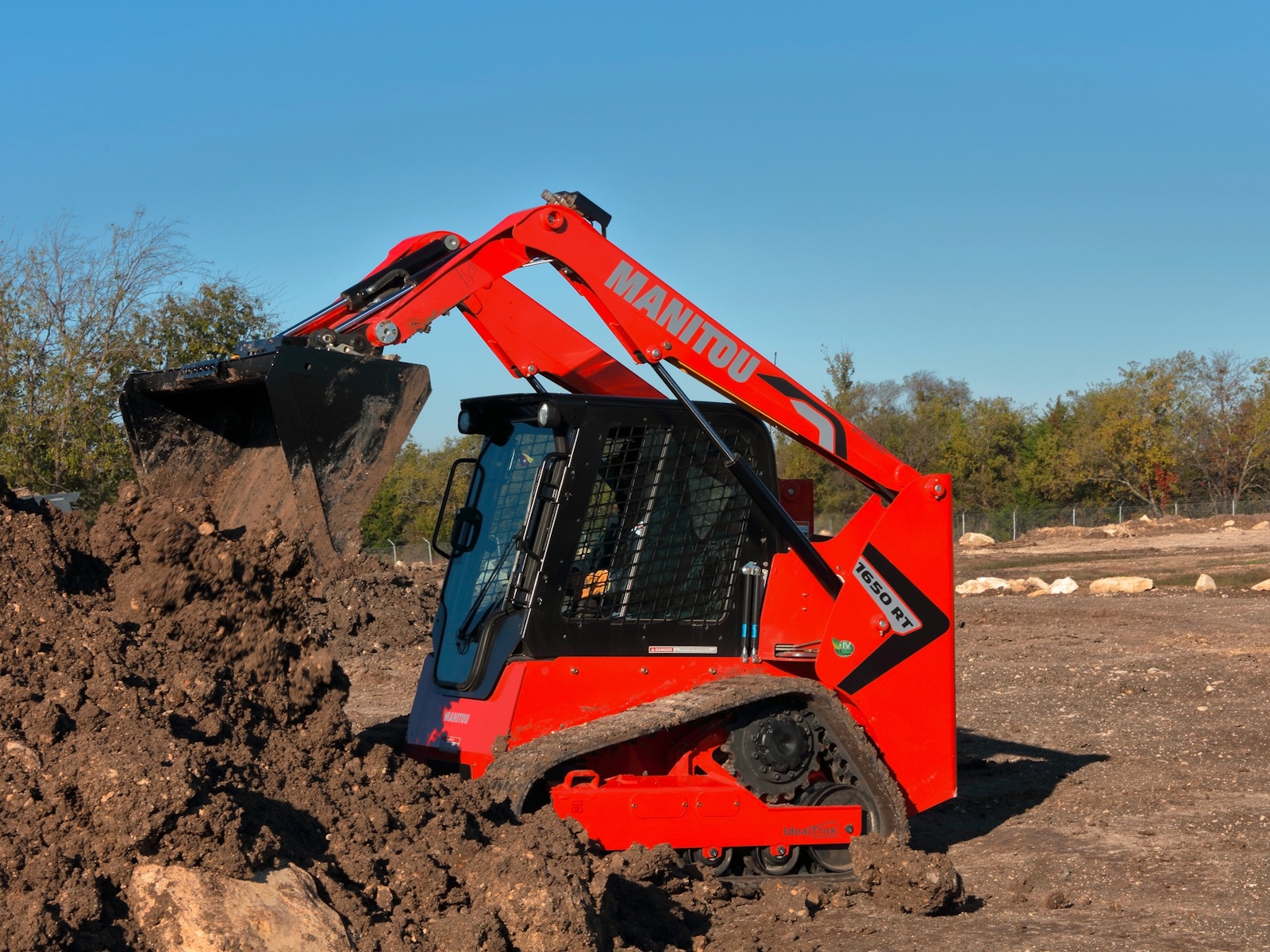

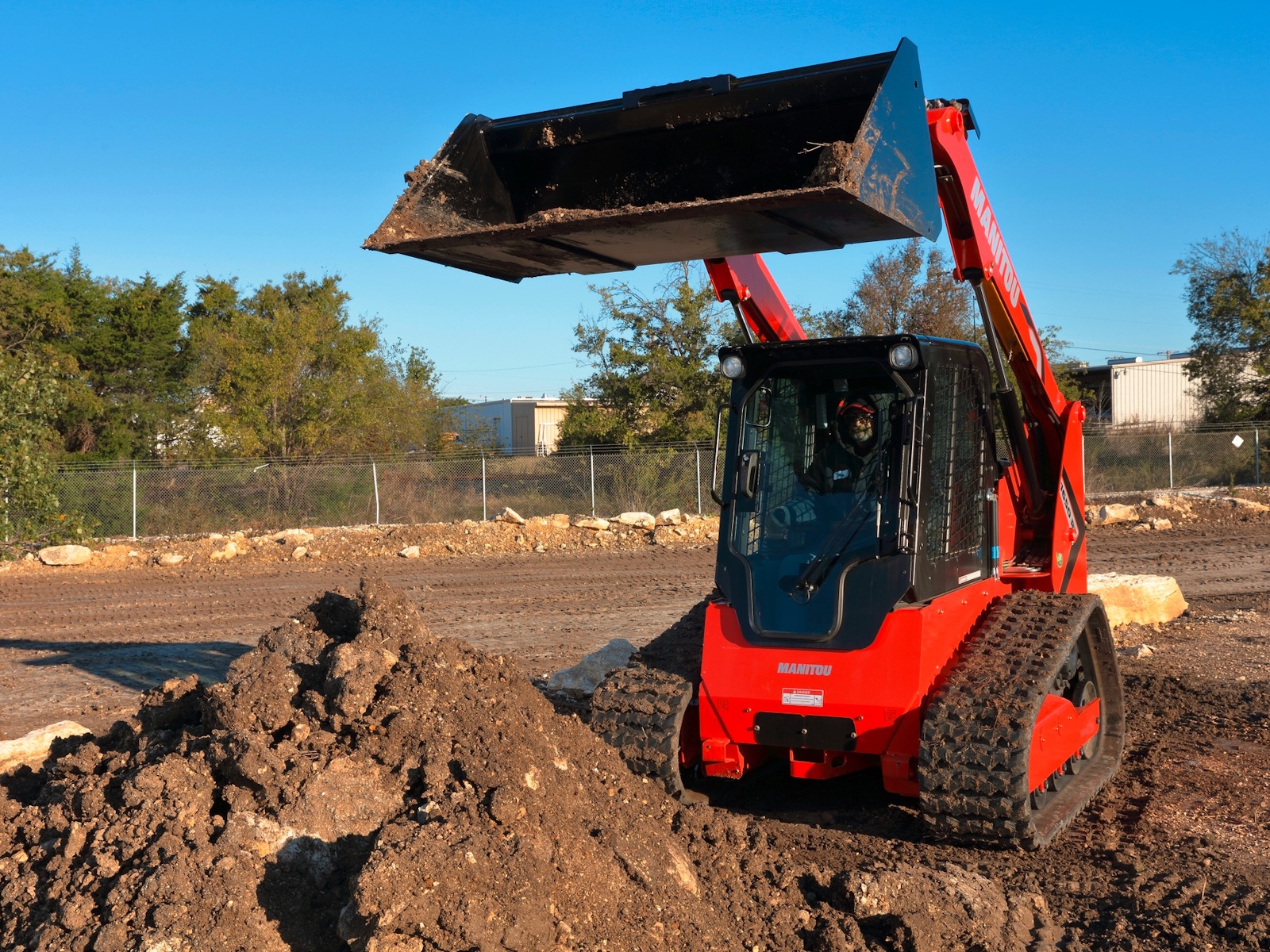

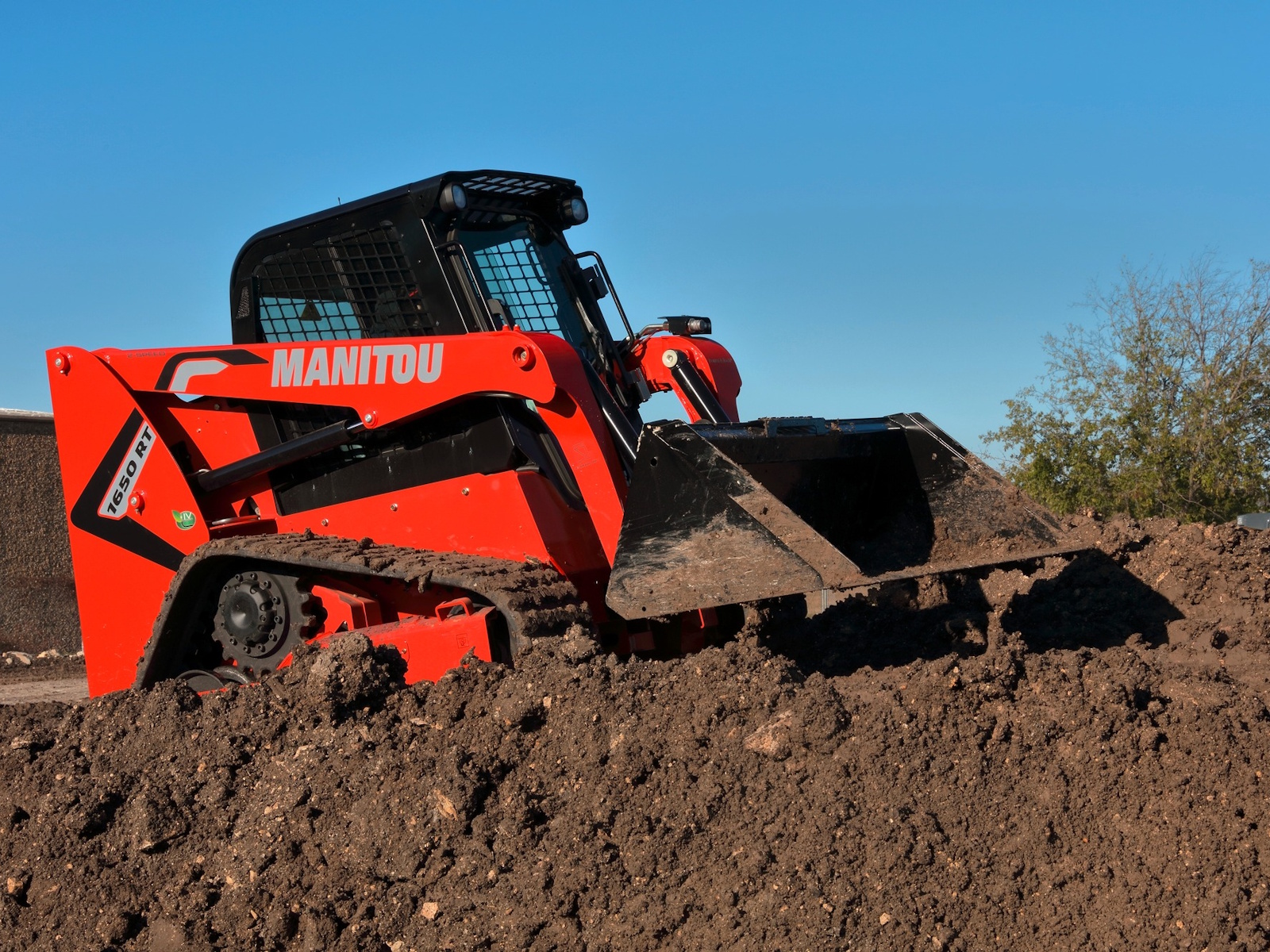

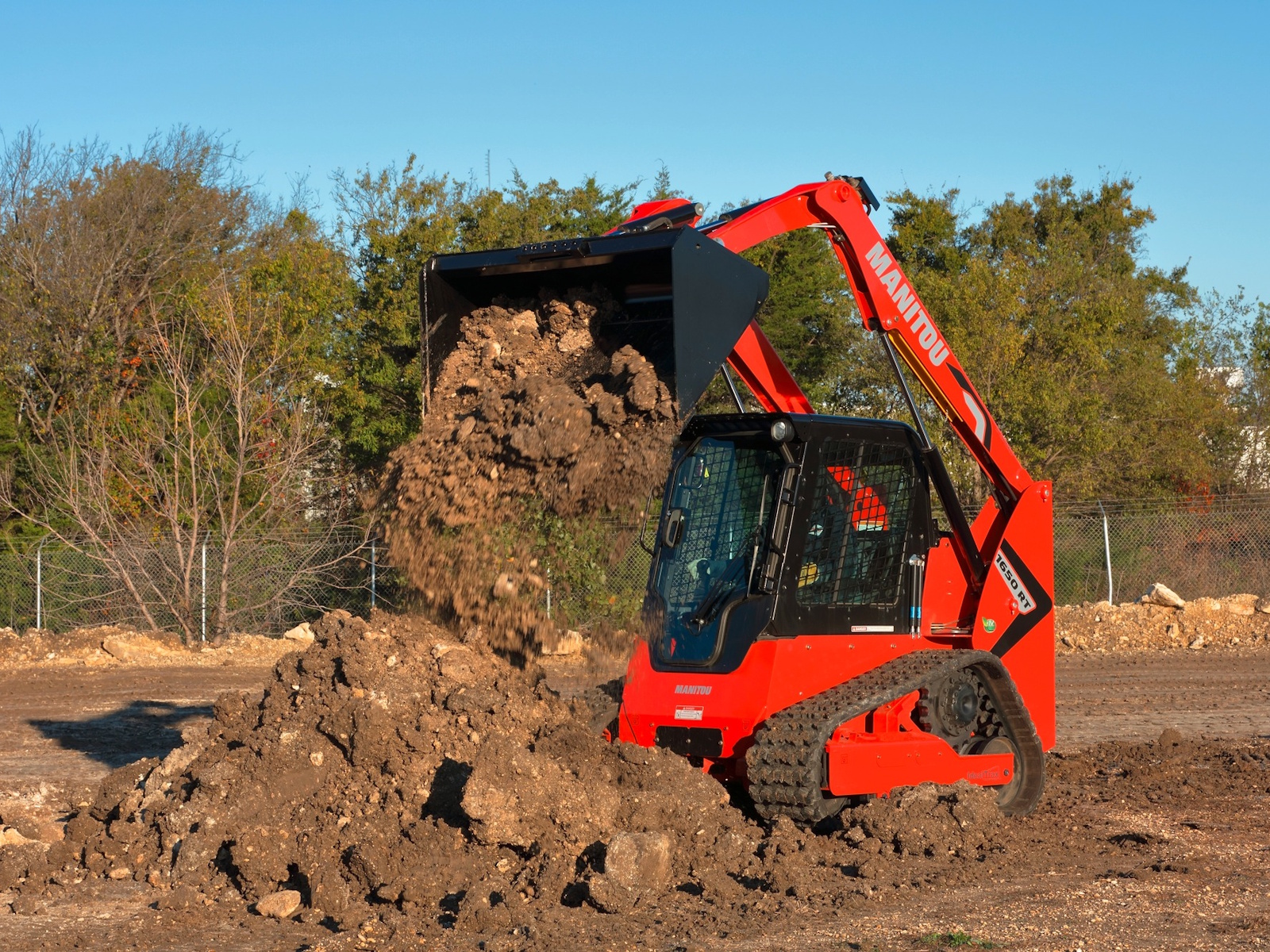

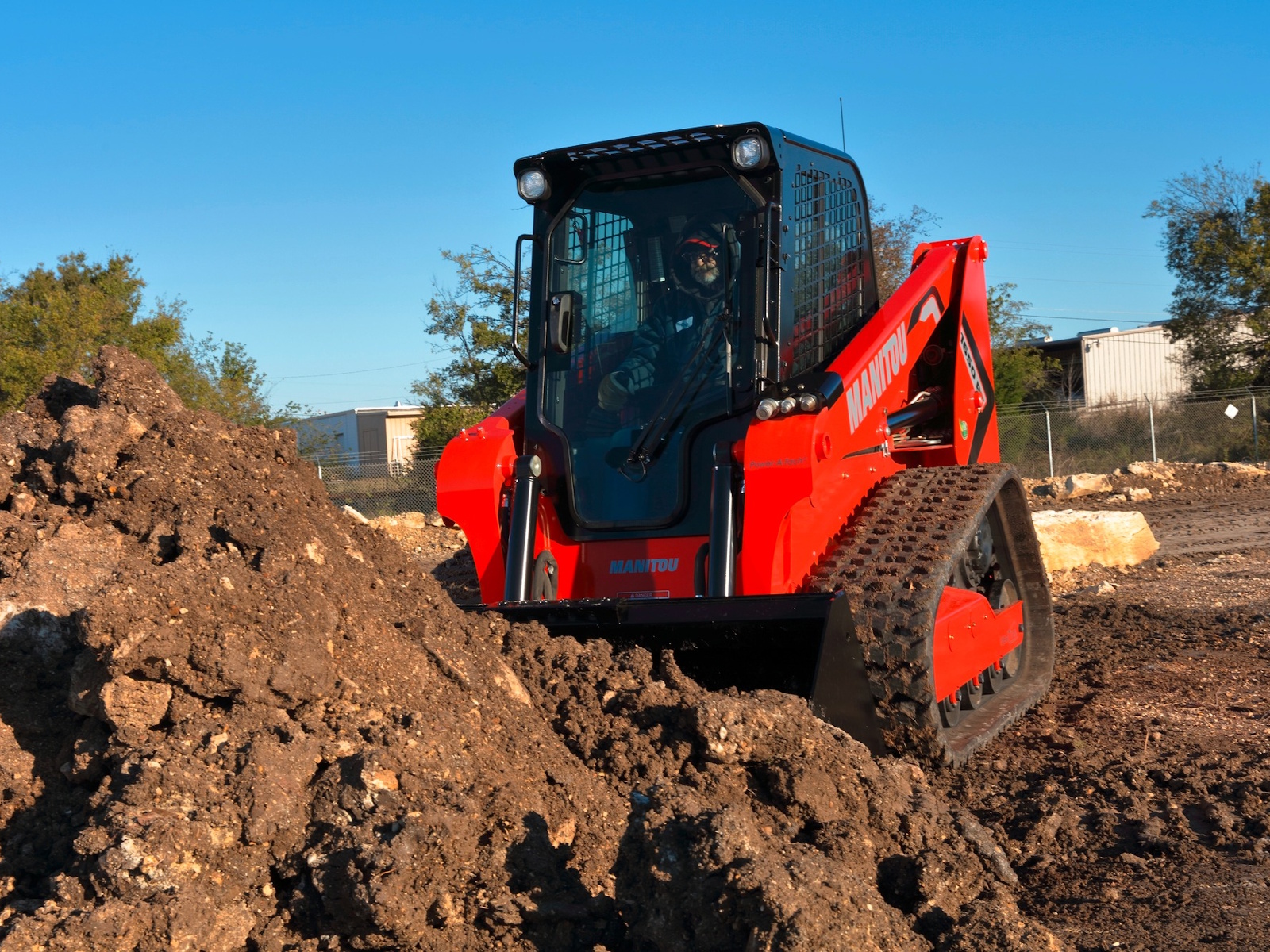

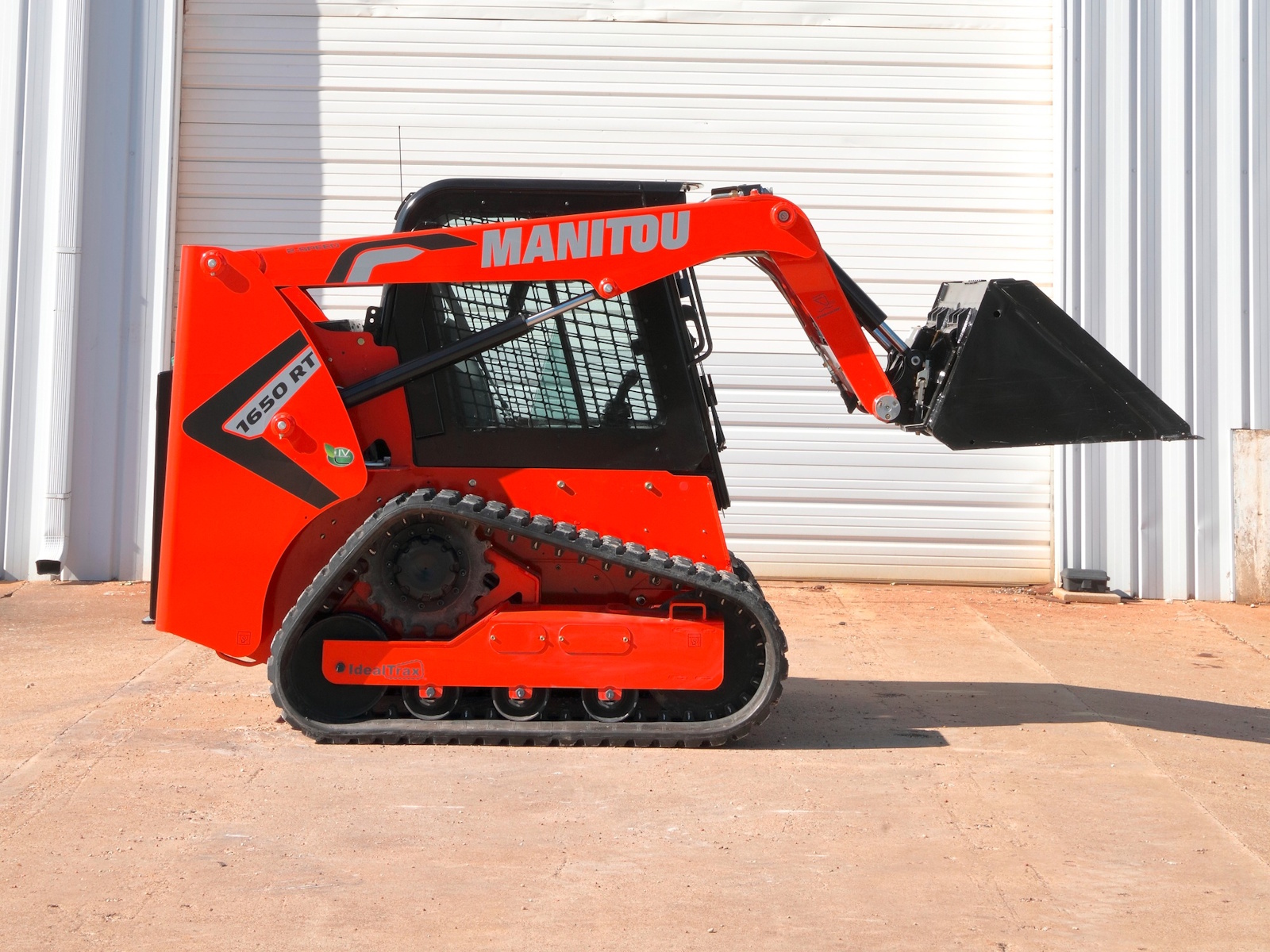

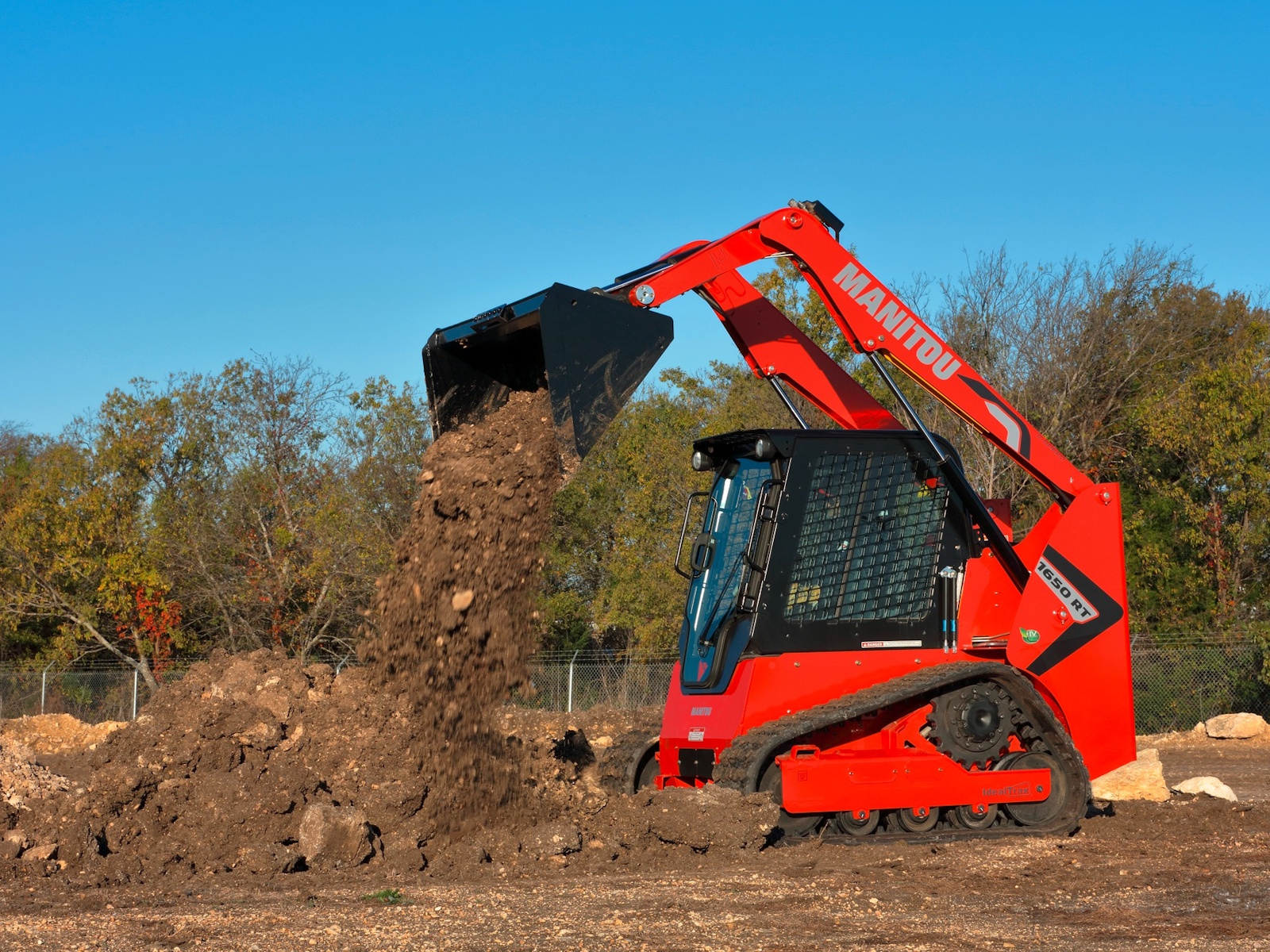

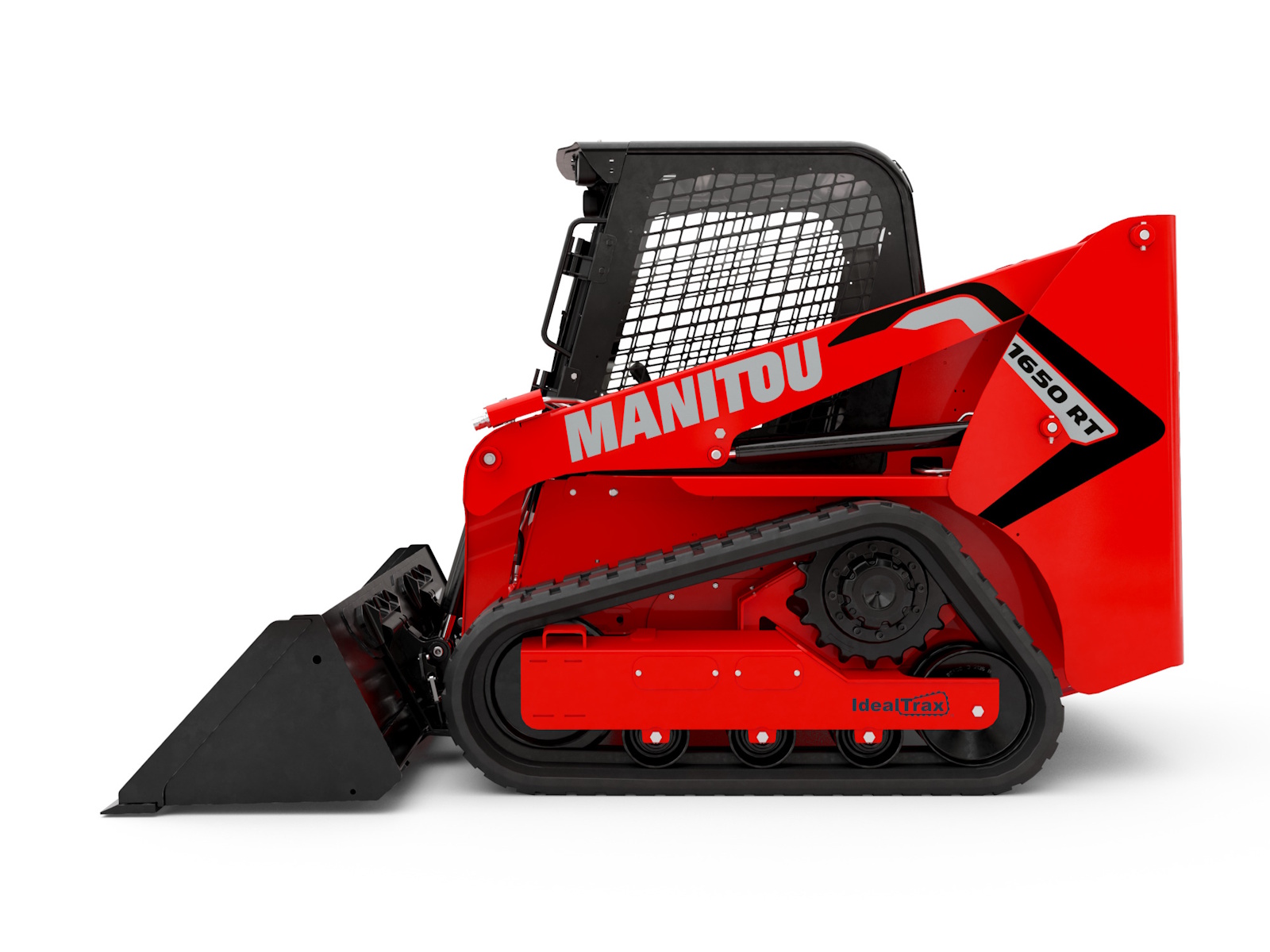

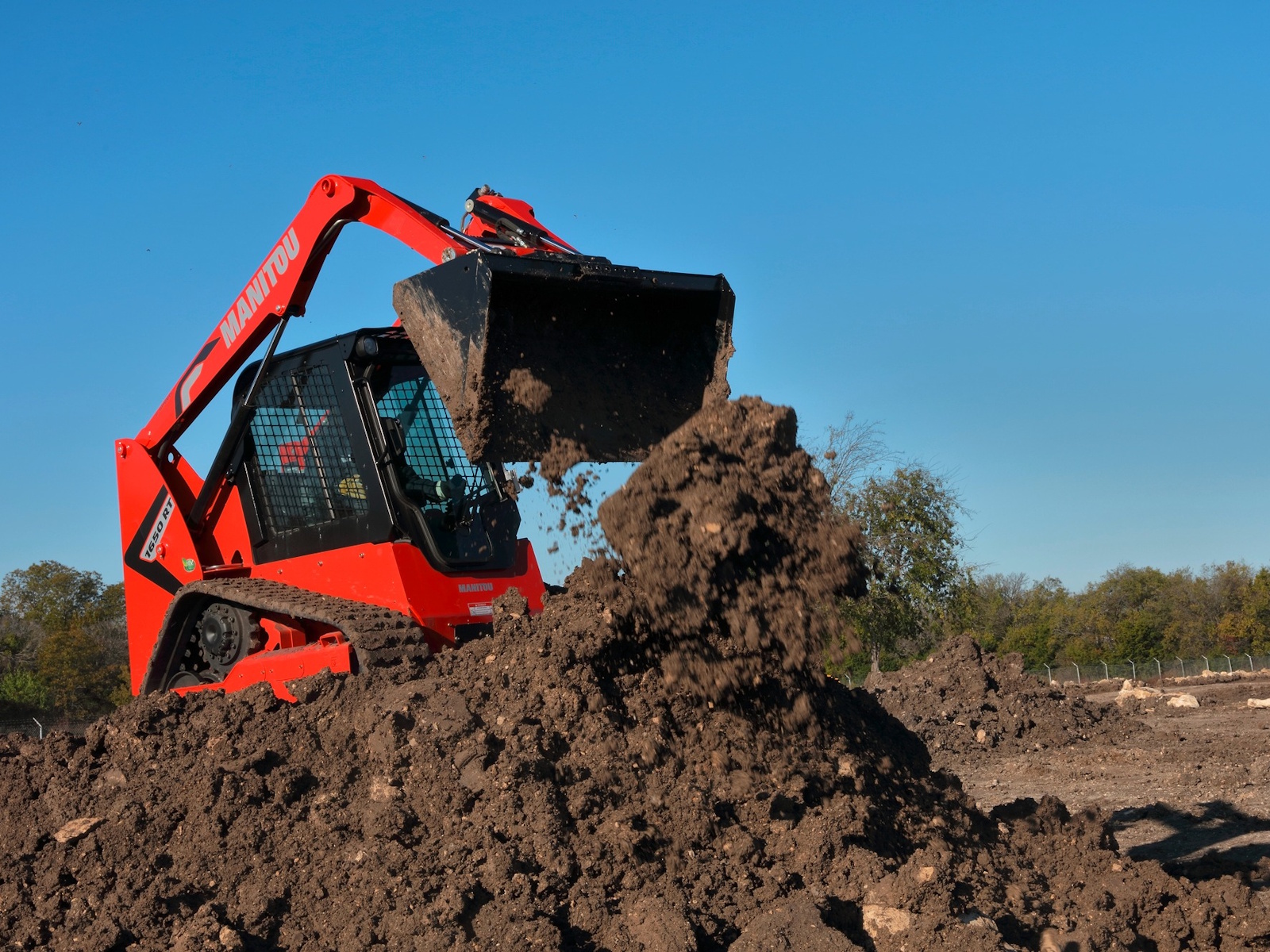

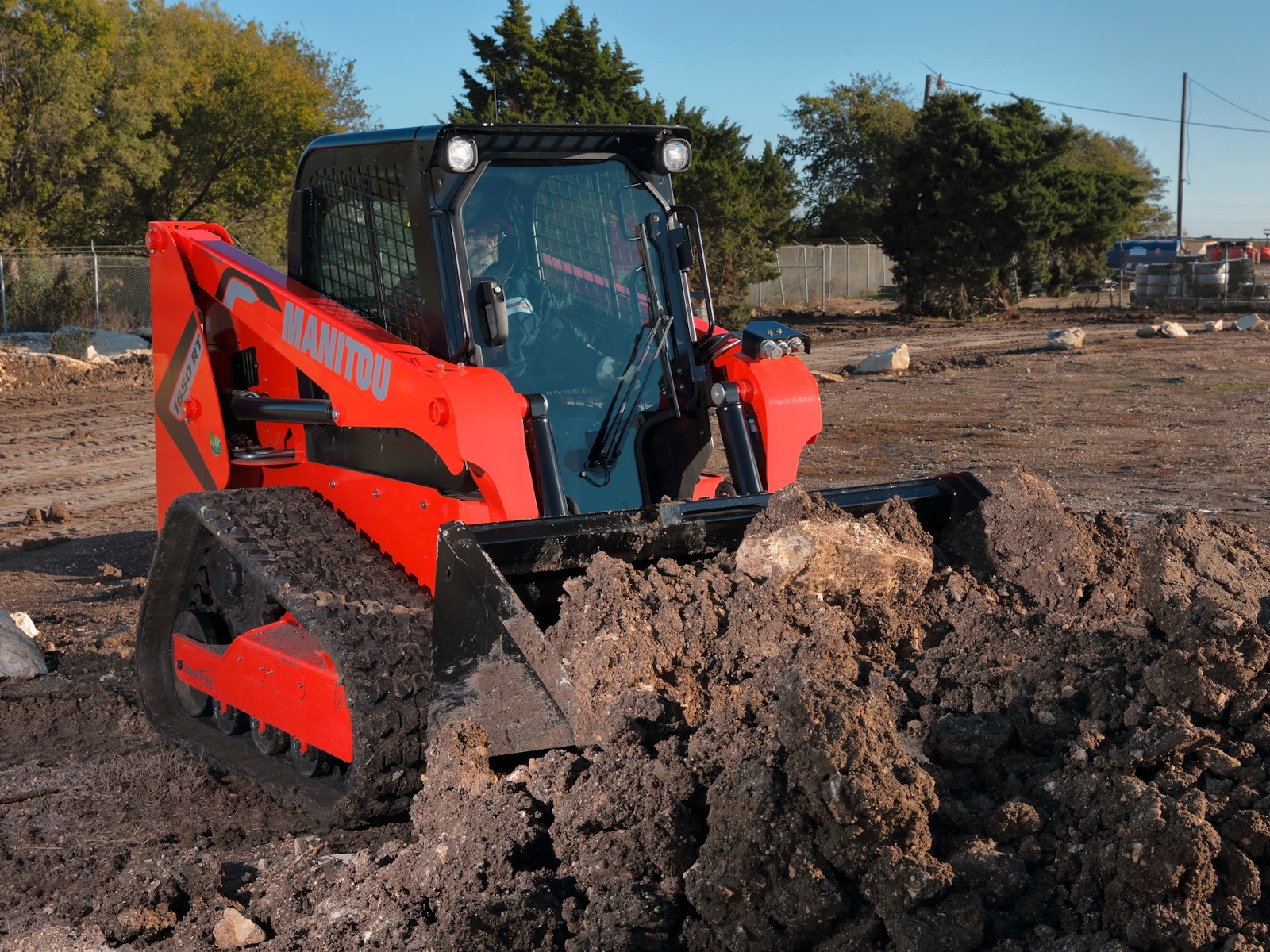

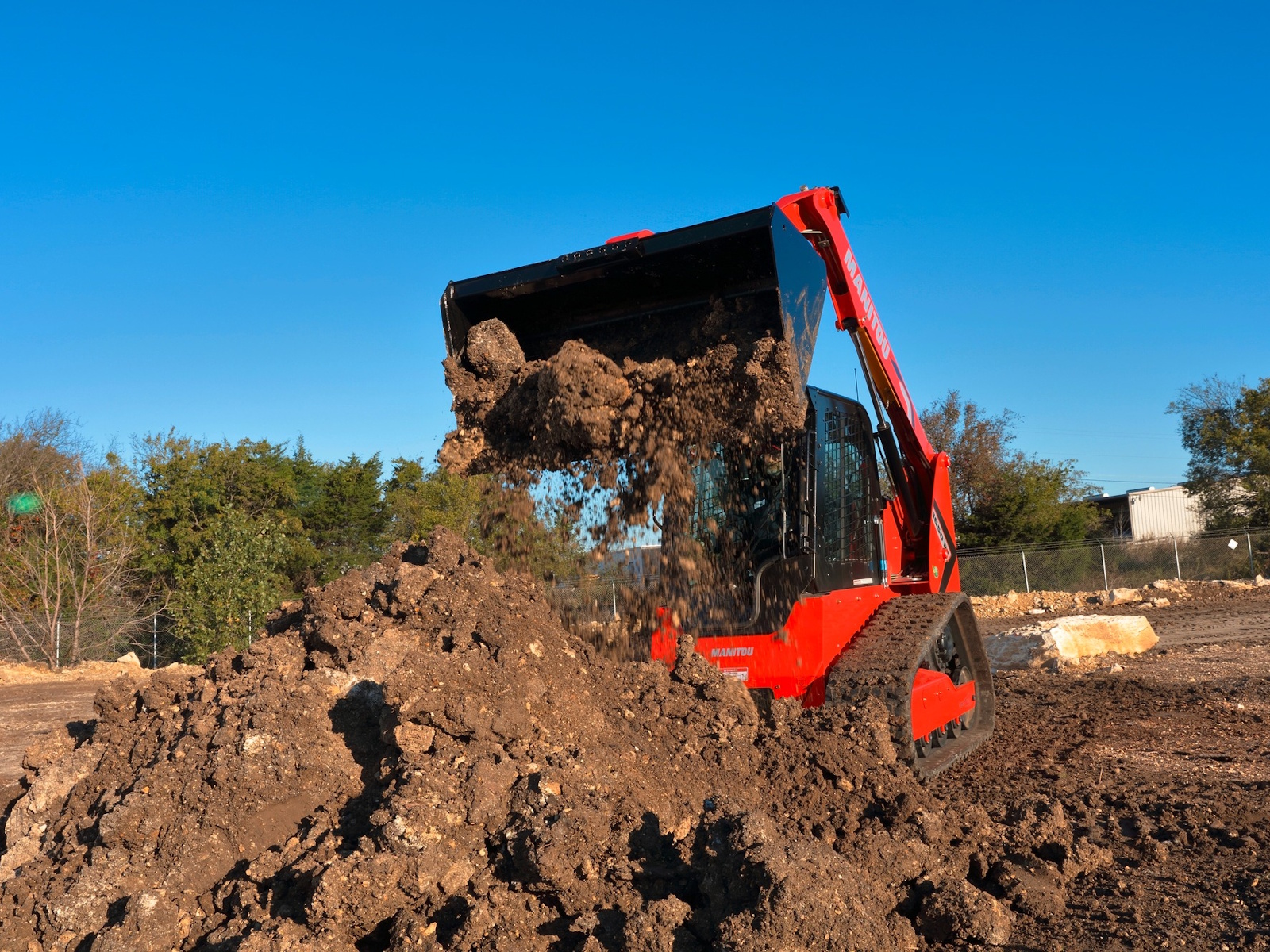

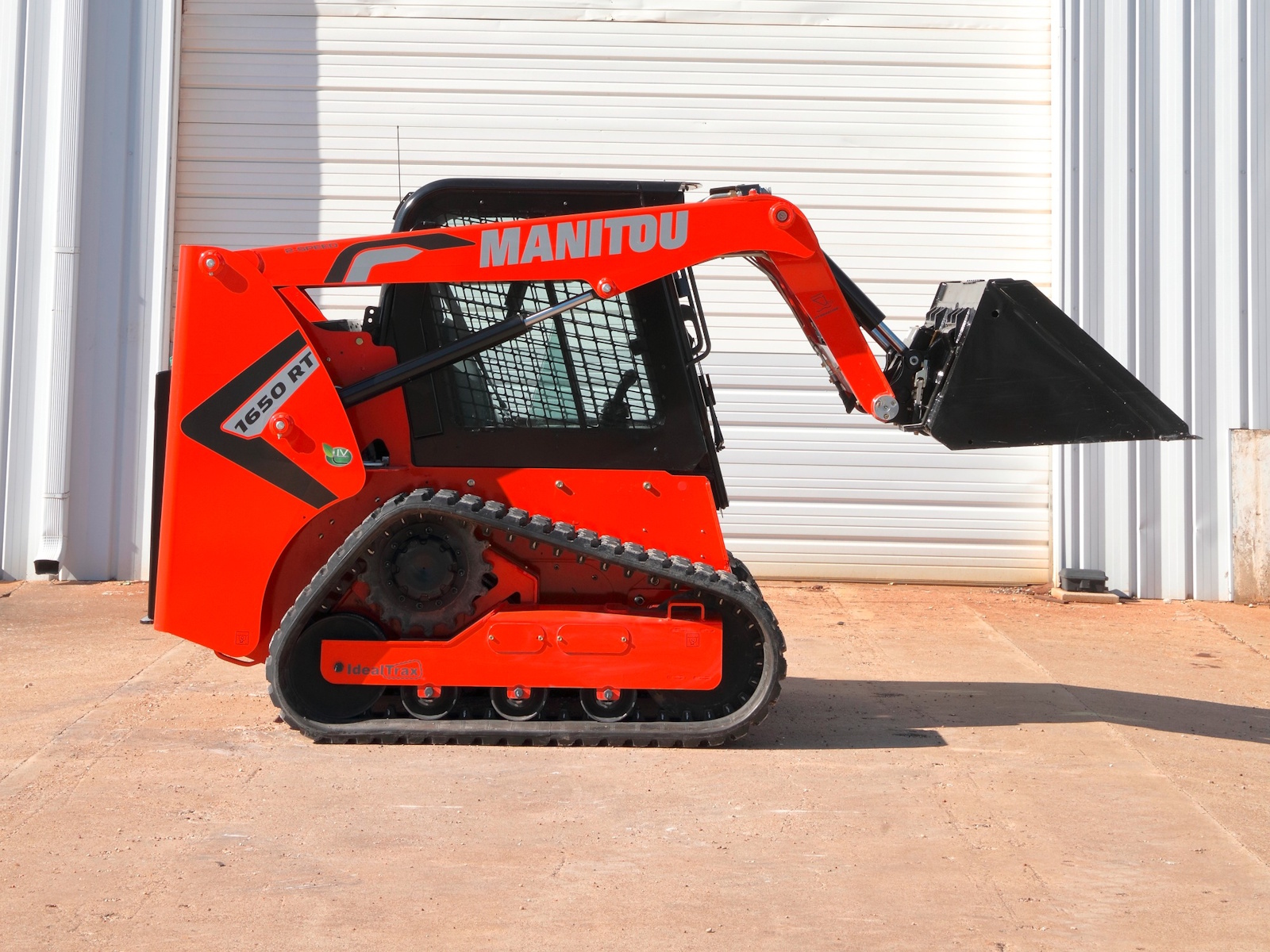

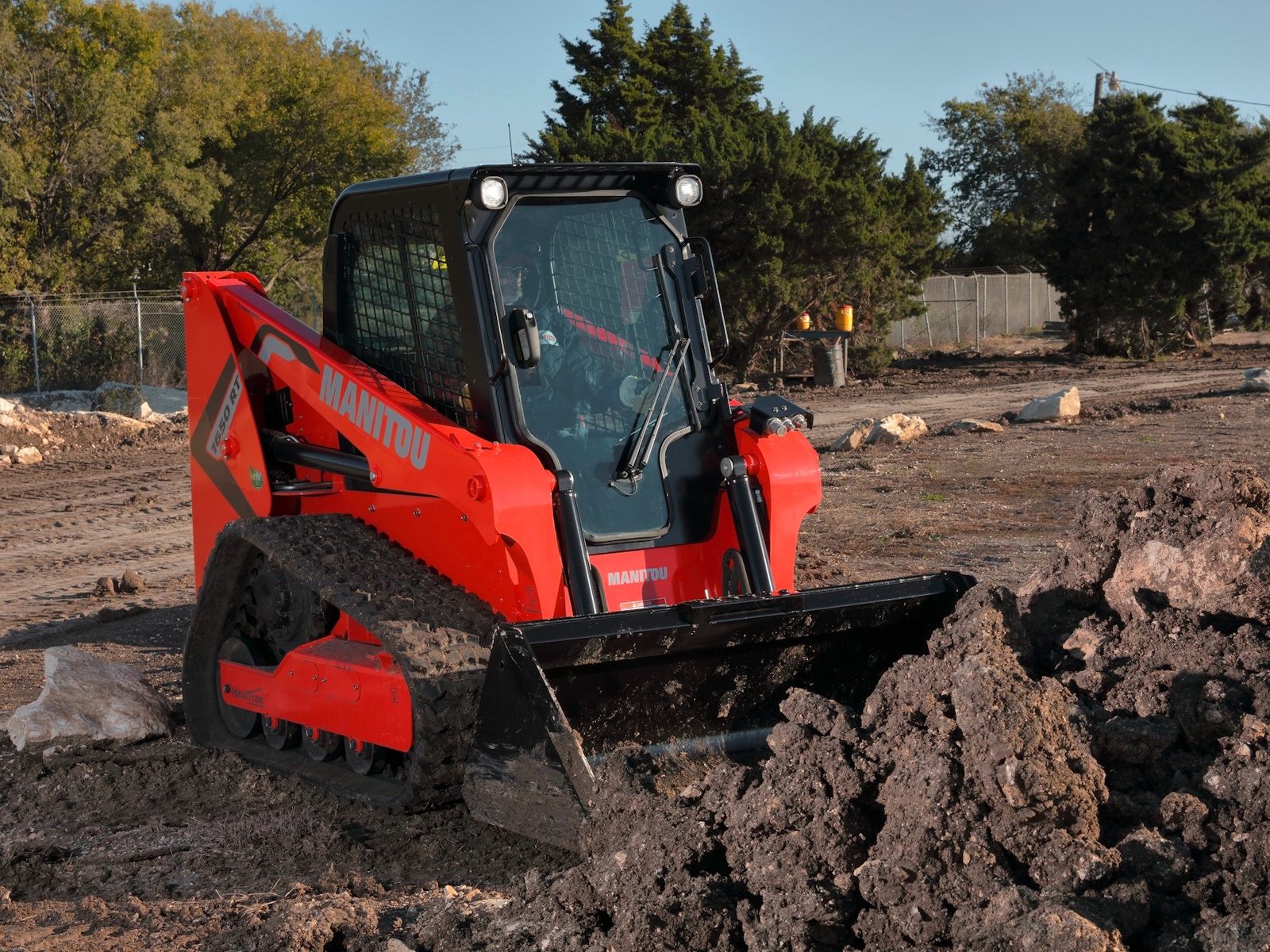

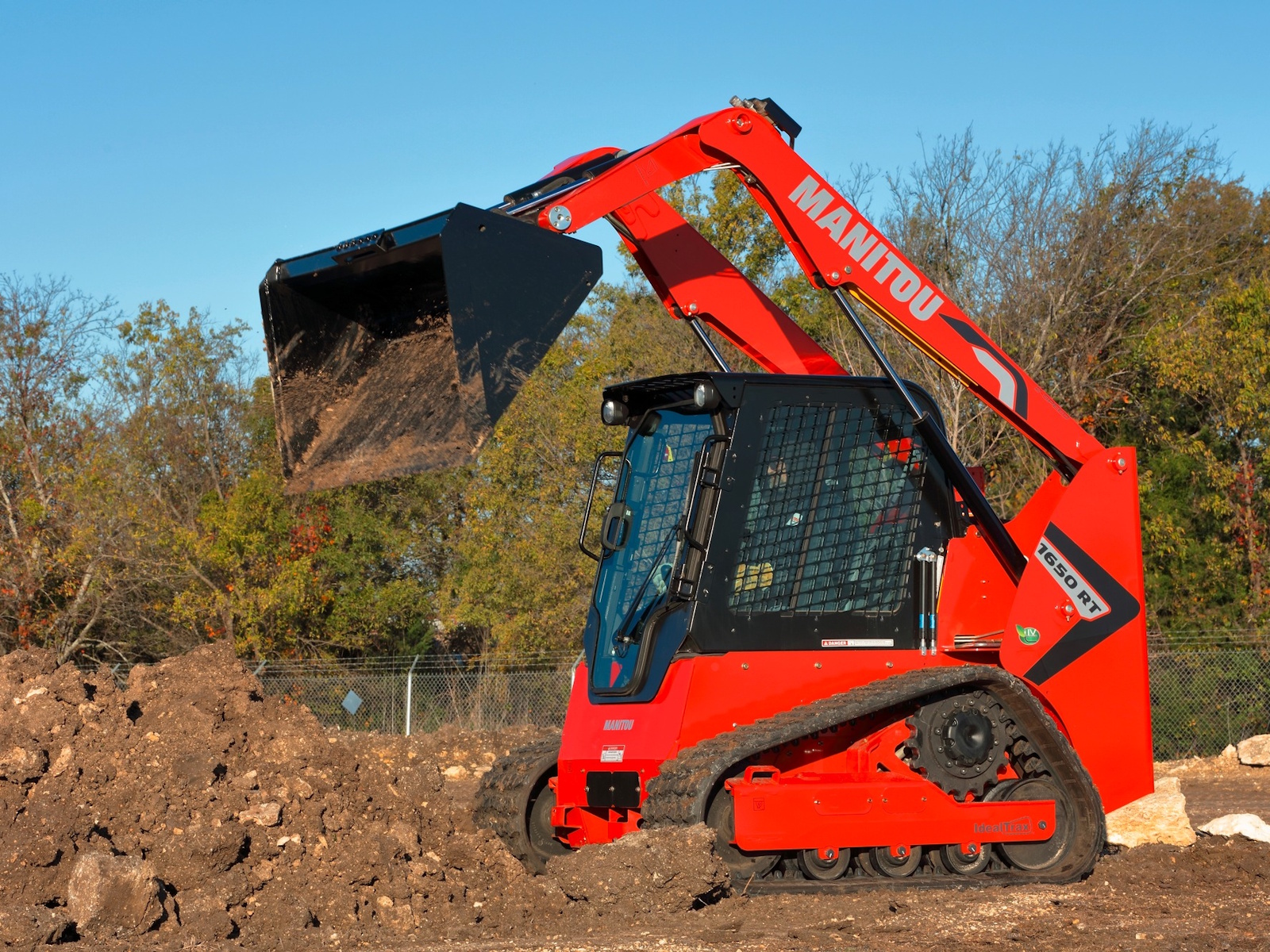

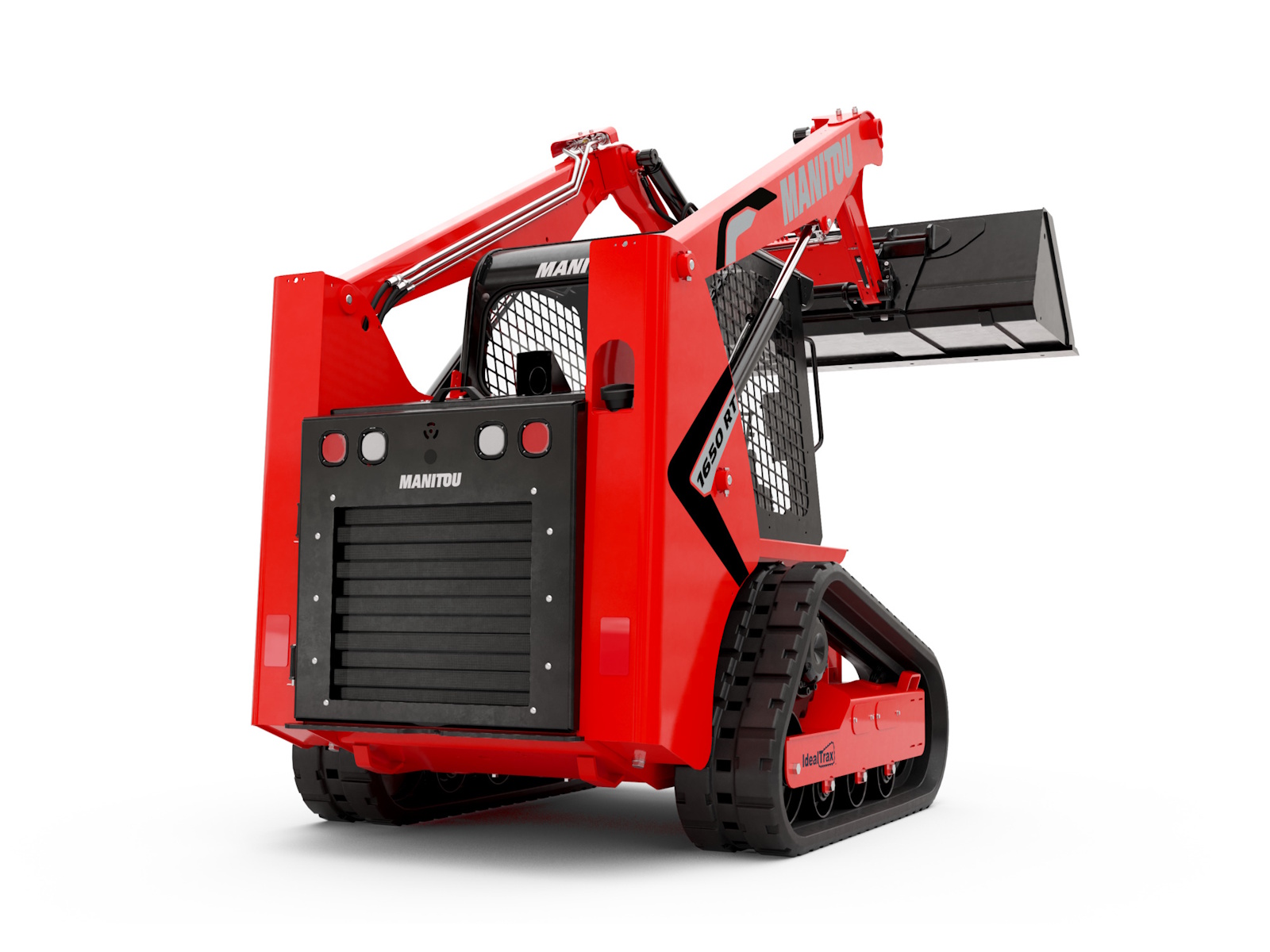

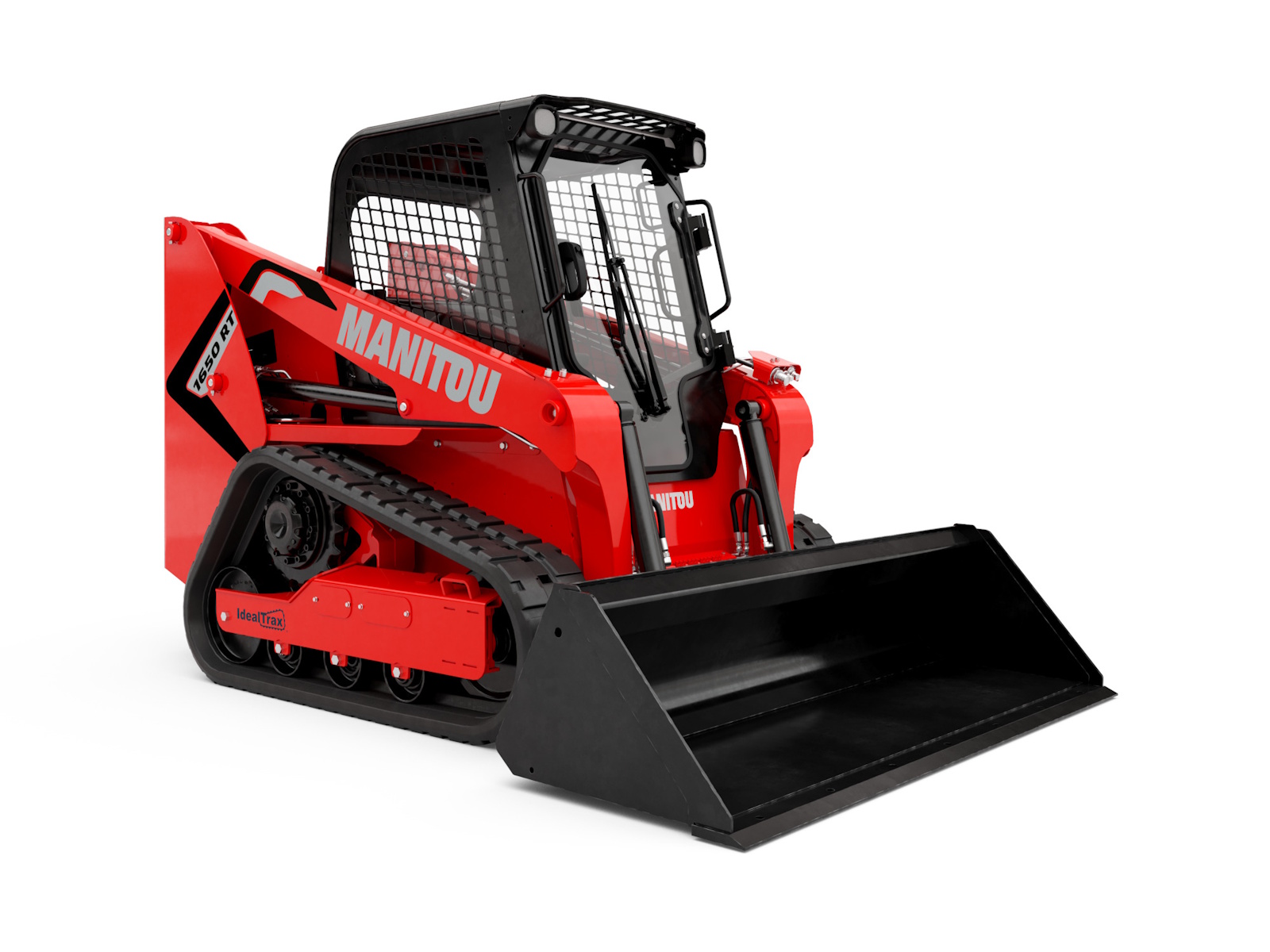

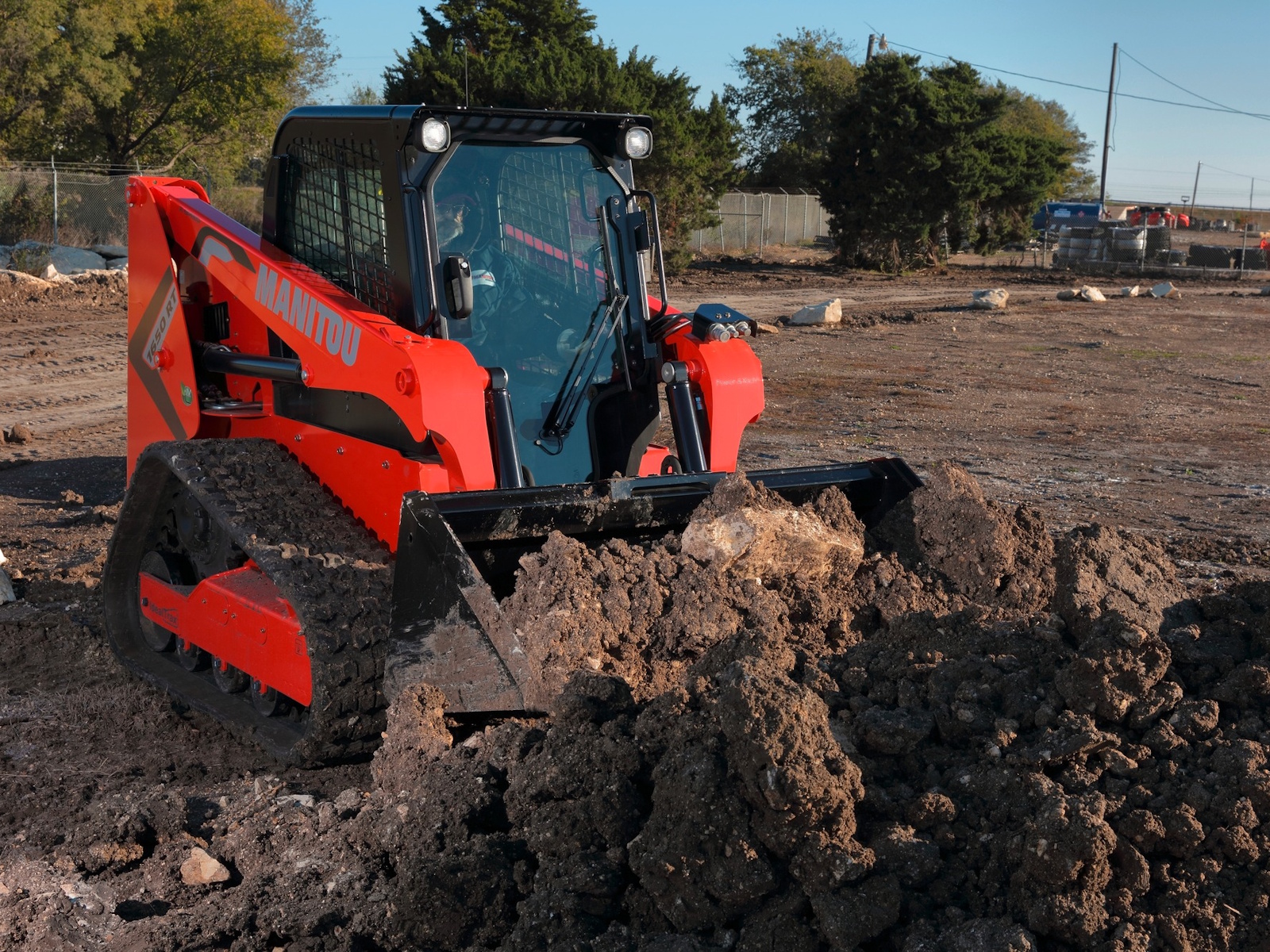

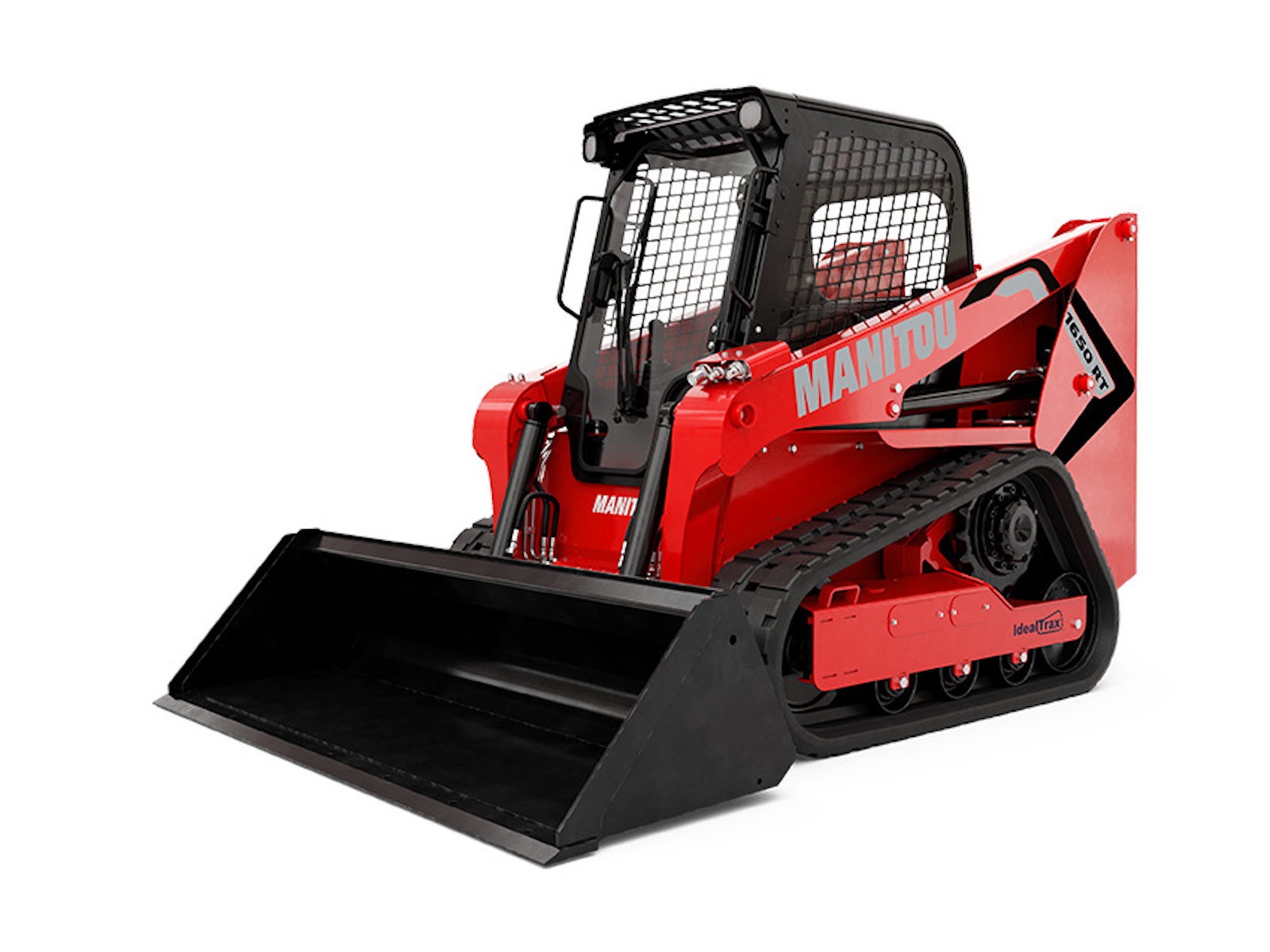

2026 Manitou Group 1650RT

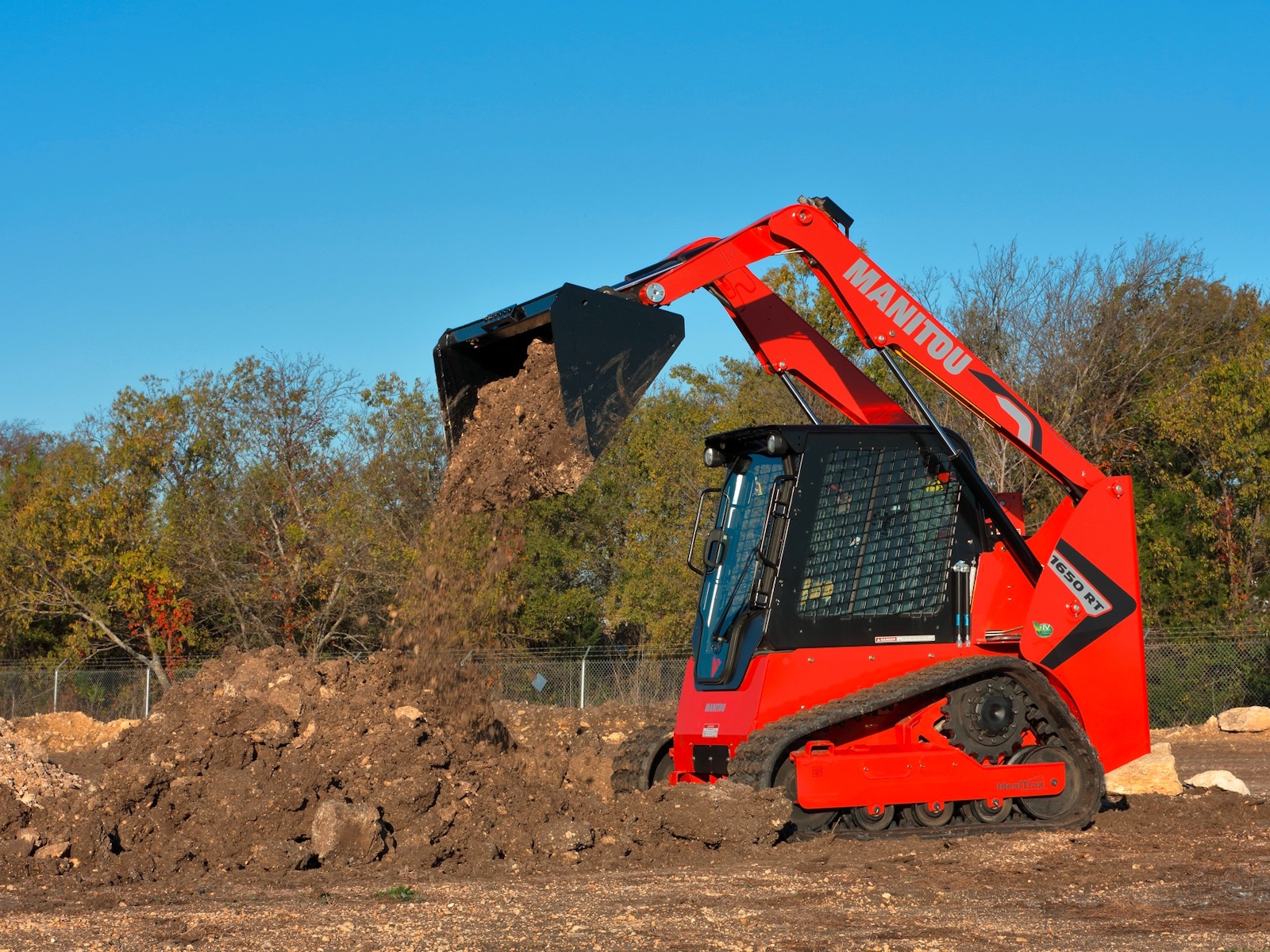

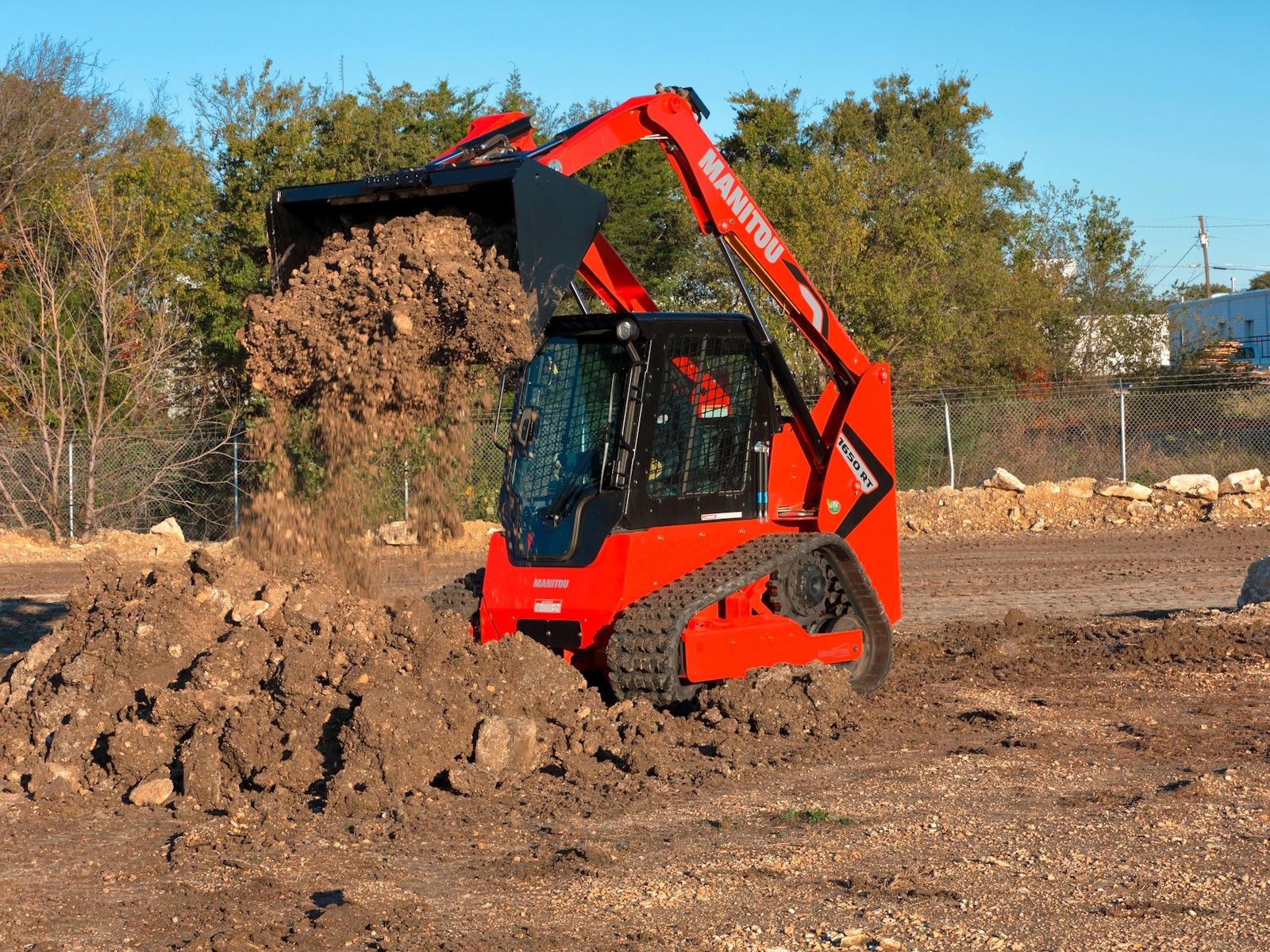

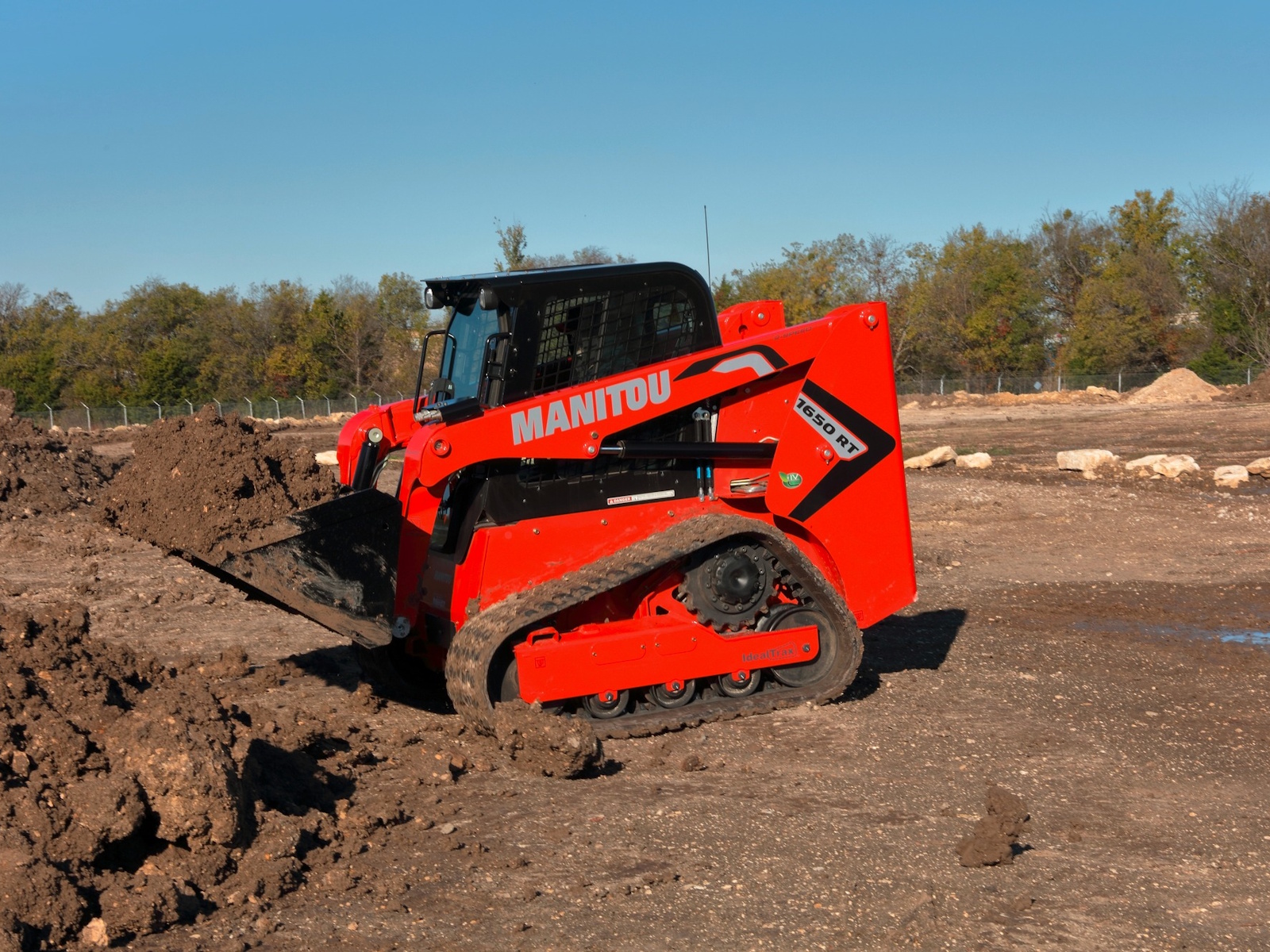

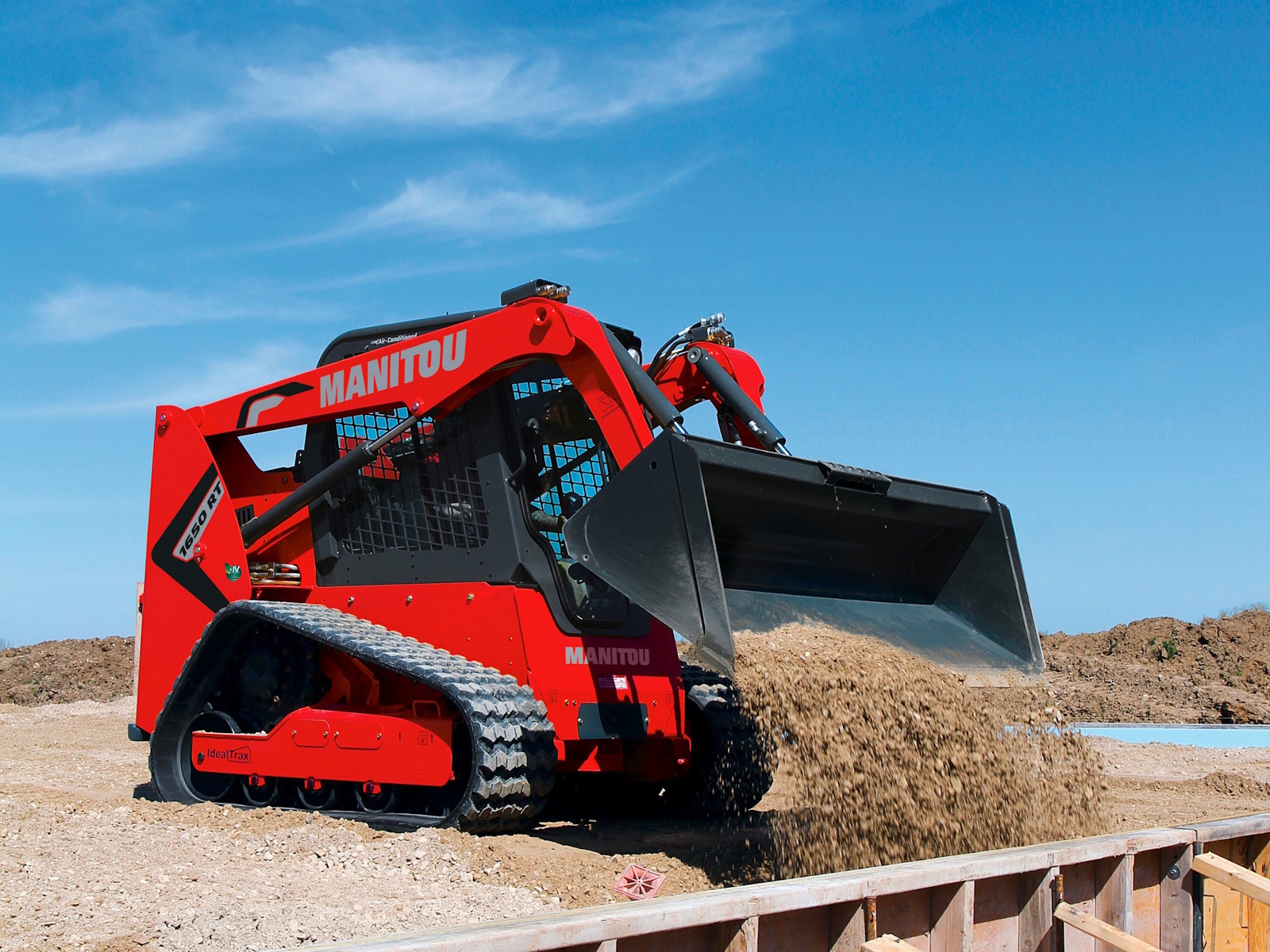

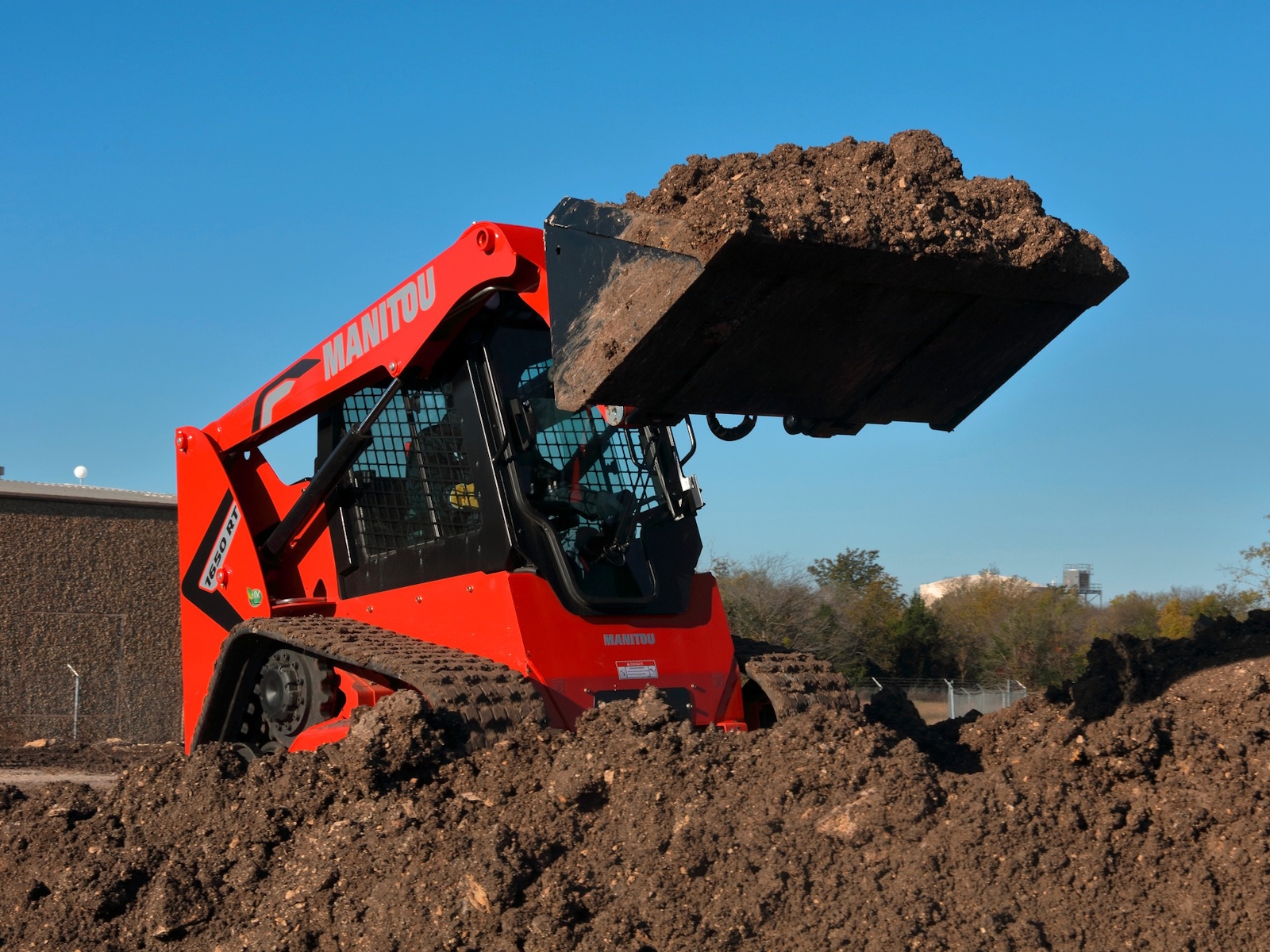

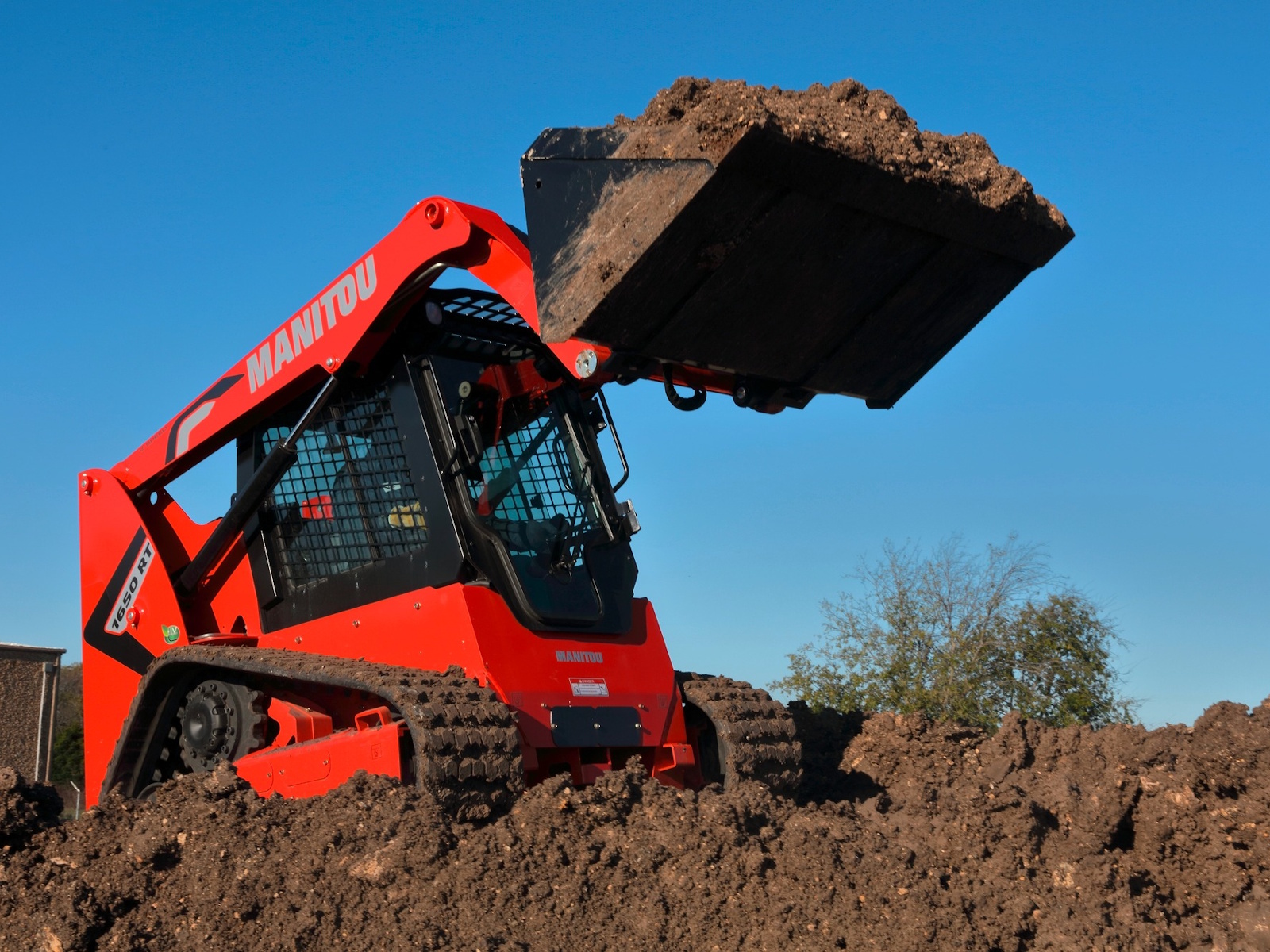

Looking for a compact track loader for your next landscaping or earth-moving project? Discover the improved performance of the Manitou 1650 RT track loader. With its compact design and strong structure, this latest machine allows you to dig, load, unload or transport materials on land of all types. To improve productivity, the 1650 RT track loader is compatible with several high-end attachments. Manitou track loaders are world renowned for their reliability, take the opportunity to demo this track loader and see how many operations can be done with a single machine.
Info
Industry
Agriculture
Make
Manitou Group
Model
1650RT
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Weight
Operating Weight: 8020 lb | Unladen weight: 8020 lb
Notes
Operating Capacity at 35% Tipping Load: 1649 lb | Operating Capacity At 50% Tipping Load: 2357 lb | Tipping capacity: 4716 lb | Maximum Rollback Angle - Fully Raised: 98 ° | Carry Position: 8 in | Maximum Rollback Angle at Carry Position: 28 ° | Digging Position: 2 in | Angle of Departure with STD Counterweight: 28 ° | Track gauge: 53 in | Crawler base: 50 in | Clearance Radius - Front with Bucket: 78 in | Angle of Approach: 90 ° | Track Type / Track Rollers / Roller Type: Rubber / 3 / Steel | Ground Speed - Single Speed: 7 mph | Ground Speed - Two Speed: 10 mph | Drawbar Pull/Tractive Effort: 9579 lb | Bucket Breakout - Tilt Cylinder: 4231 lb | Bucket Breakout - Lift Cylinder: 5060 lb | Cold Cranking Amps at Temperature (CCA): 950 A | Standard flow - Auxiliary hydraulics: 19 US gpm | Cooling liquid: 3 US gal | Ground Pressure: 7 PSI
Height
Overall Operating Height - Fully Raised: 158 in | Height to Hinge Pin - Fully Raised: 120 in | Dump reach - Full height: 25 in | Dump angle at full height: 39 ° | Dump Height - Fully Raised: 92 in | Overall Height to top of ROPS: 78 in | Specified Height: 64 in | Reach at Specified Height: 22 in | Dump angle at specified height: 73 ° | Grouser Height: 0.98 in
Length
Overall length with bucket: 126 in | Overall Length without Bucket: 94 in
Ground Clearance
7 in
Width

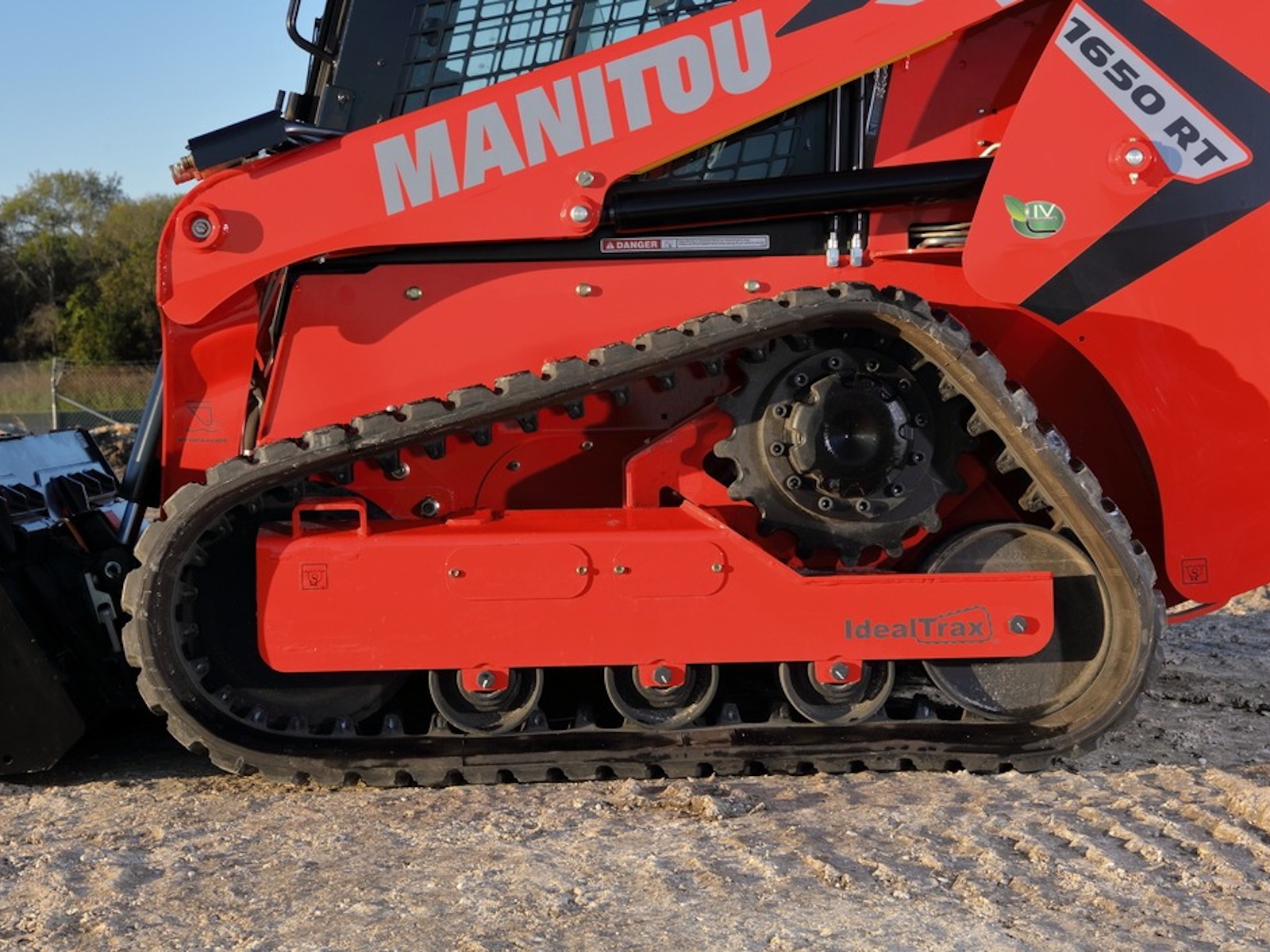

Track Shoe Width: 13 in | Overall width less bucket: 69 in | Bucket Width: 66 in
Engine
Yanmar
Engine Type
Motor Type: Radial Piston
Power/Horsepower
69.30 Hp / 51 kW
Torque
178 ft/lbs
Battery
Battery voltage: 12 V
Alternator
Voltage / Ampere: 12 V / 100 A
Oil Capacity
Oil Pan Capacity: 2 US gal
Fuel Capacity
17 US gal | Hydraulic tank capacity: 10 US gal
Displacement
0.87 US gal
