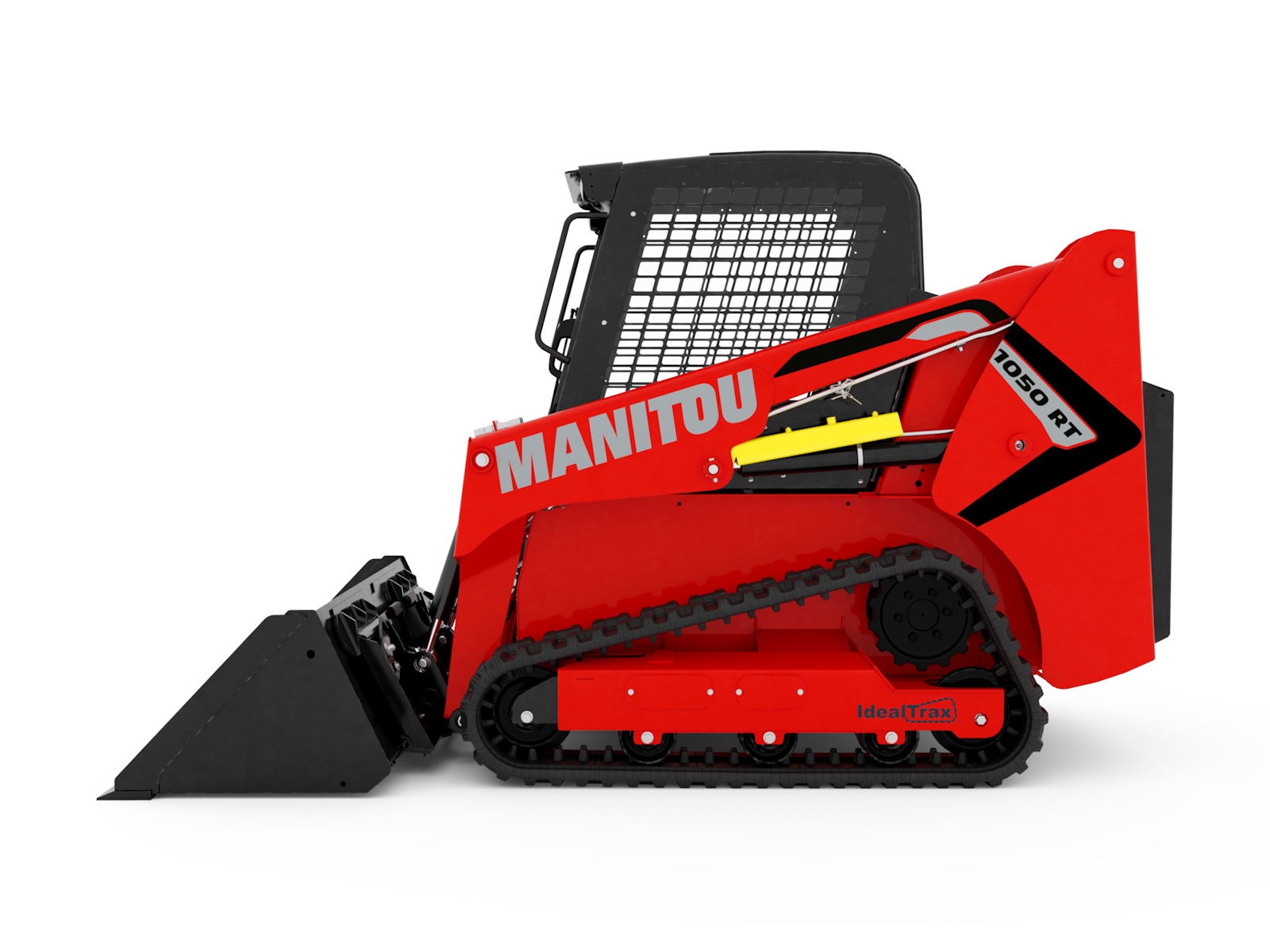

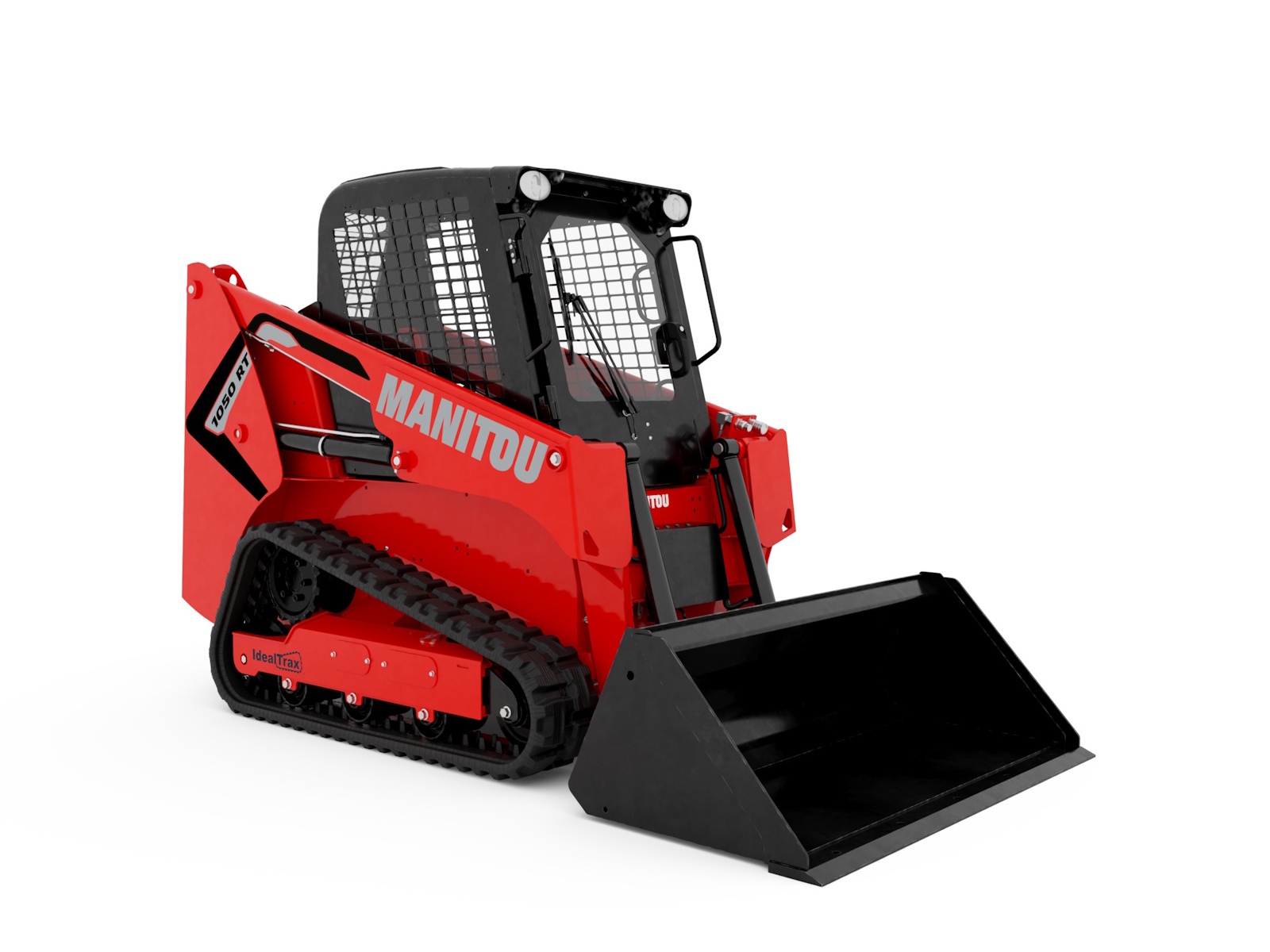

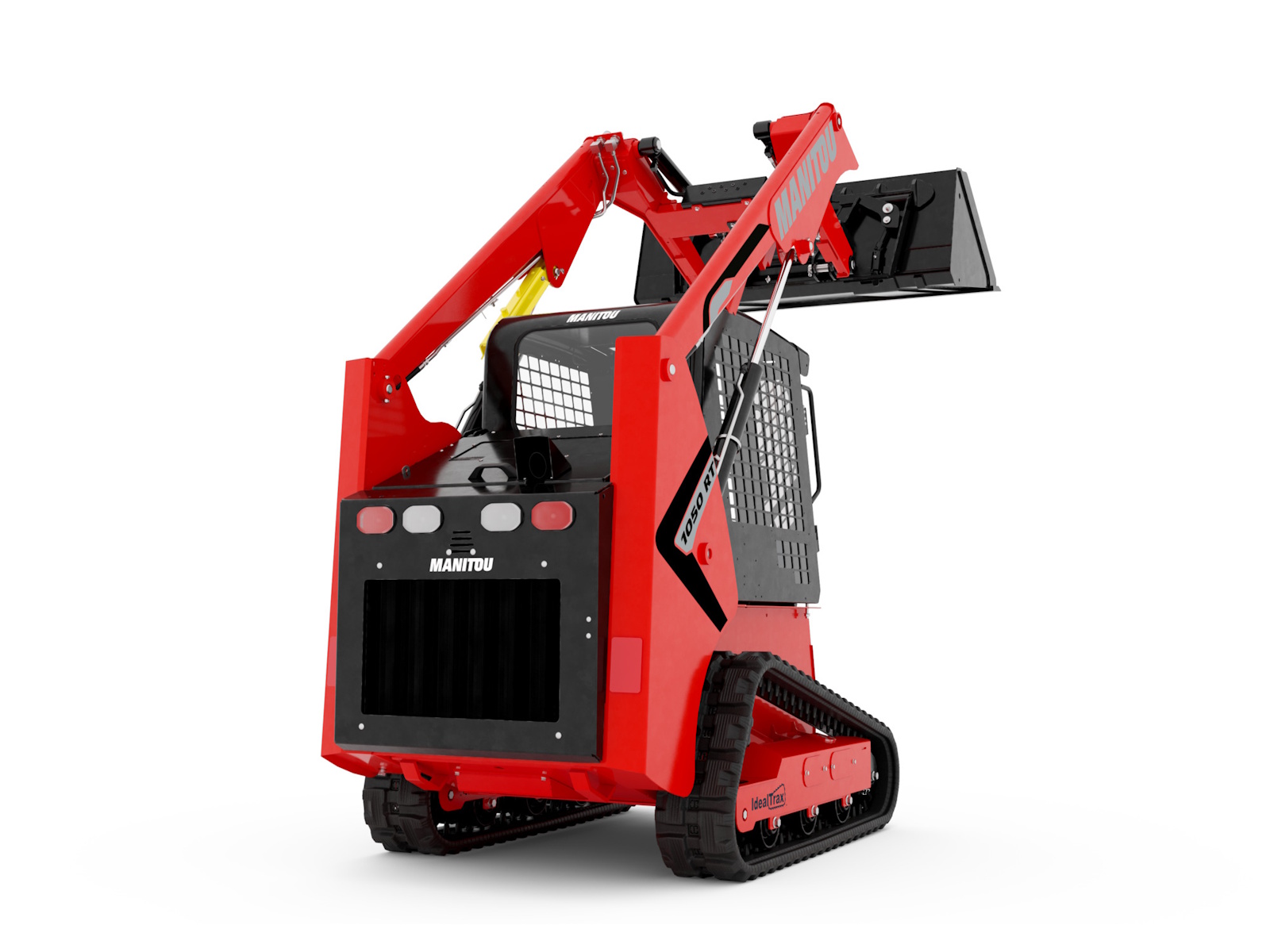

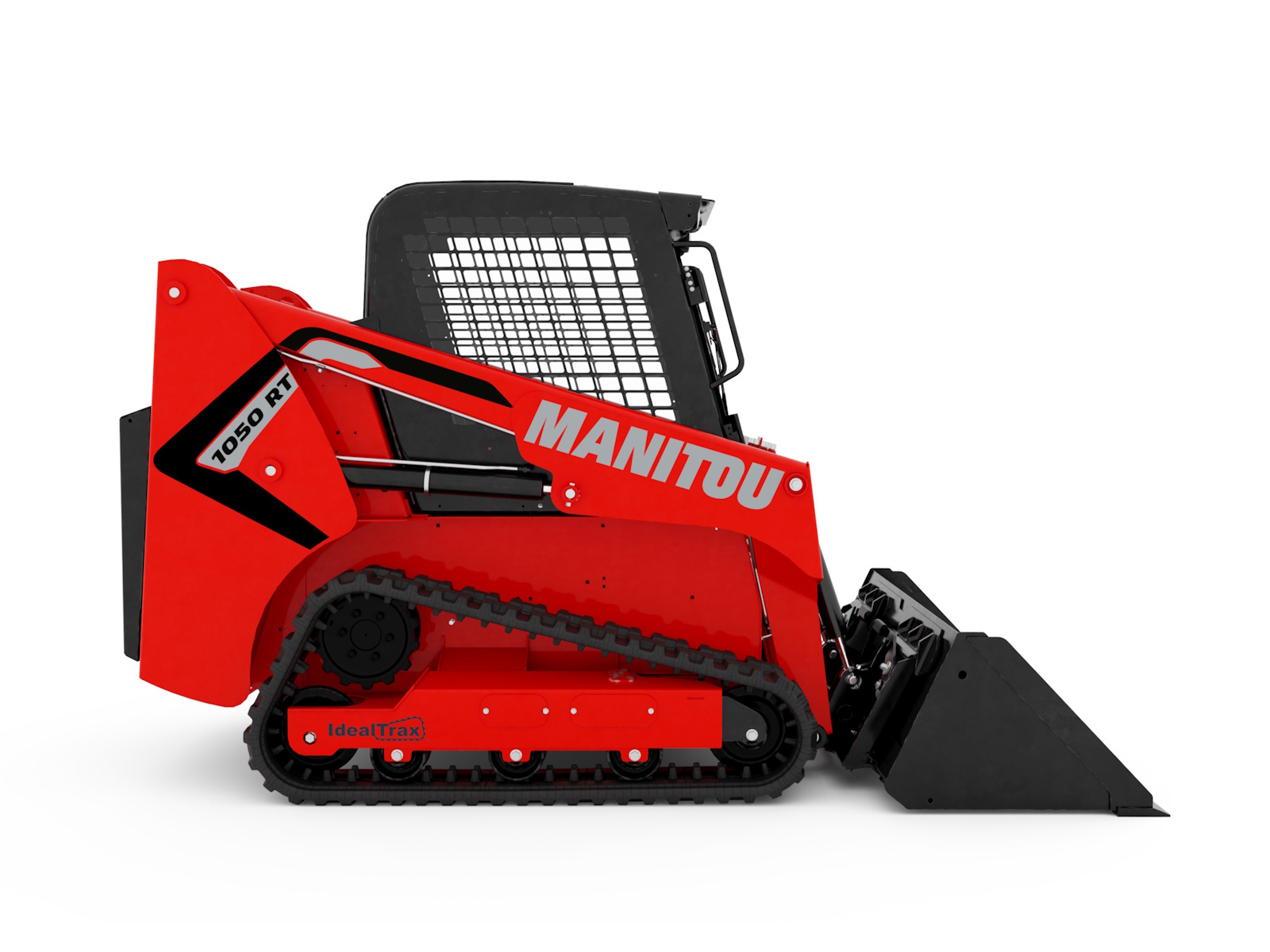

2026 Manitou Group 1050RT
Discover the performance of the ultra-compact 1050 RT track loader. Equipped with IdealTrax, this machine allows you to work effectively on all types of soils including; rough terrain, muddy and uneven ground. Take advantage of its compactness and its power to achieve all of your operations: excavation under the ground level, leveling, excavation, loading / unloading, transportation of materials, positioning loads at height .... Add more versatility with the ability to change out attachments within minutes and get a solution for all your business projects!
Info
Industry
Agriculture
Make
Manitou Group
Model
1050RT
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Weight
Operating Weight: 4720 lb | Unladen weight: 4251 lb
Load Capacity
Notes
Operating Capacity at 35% Tipping Load: 1049 lb | Operating Capacity At 50% Tipping Load: 1499 lb | Tipping capacity: 3000 lb | Maximum Rollback Angle - Fully Raised: 102 ° | Carry Position: 5 in | Maximum Rollback Angle at Carry Position: 32 ° | Angle of Departure with STD Counterweight: 35 ° | Track gauge: 41 in | Crawler base: 51 in | Clearance Radius - Front with Bucket: 73 in | Angle of Approach: 90 ° | Track Type / Track Rollers / Roller Type: Rubber / 4 / Steel | Ground Speed - Single Speed: 6 mph | Drawbar Pull/Tractive Effort: 4400 lb | Bucket Breakout - Tilt Cylinder: 2967 lb | Bucket Breakout - Lift Cylinder: 3034 lb | Cold Cranking Amps at Temperature (CCA): 800 A | Standard flow - Auxiliary hydraulics: 15 US gpm | Oil Pan Capacity: 2 US gal | Cooling liquid: 2 US gal | Noise to environment (LwA): 101 dB | Noise at driving position (LpA): 85.80 dB | Ground Pressure: 5 PSI
Height
Overall Operating Height - Fully Raised: 144 in | Height to Hinge Pin - Fully Raised: 109 in | Dump reach - Full height: 26 in | Dump angle at full height: 38 ° | Dump Height - Fully Raised: 84 in | Overall Height to top of ROPS: 71 in | Specified Height: 58 in | Reach at Specified Height: 39 in | Dump angle at specified height: 72 ° | Grouser Height: 0.98 in
Length
Overall length with bucket: 118 in | Overall Length without Bucket: 89 in
Ground Clearance
8 in
Width
Track Shoe Width: 10 in | Overall width less bucket: 51 in | Bucket Width: 54 in
Engine
Yanmar
Engine Type
Motor Type: Radial Piston
Power/Horsepower
34.20 Hp / 23.70 kW
Torque
81 ft/lbs
Battery
Battery voltage: 12 V
Alternator
Voltage / Ampere: 12 V / 55 A
Fuel Capacity
10 US gal | Hydraulic tank capacity: 8 US gal
Displacement
0.43 US gal
Cylinders
3
