2026 Kubota TE10511C

2026 Kubota TE10511C

TE10511C

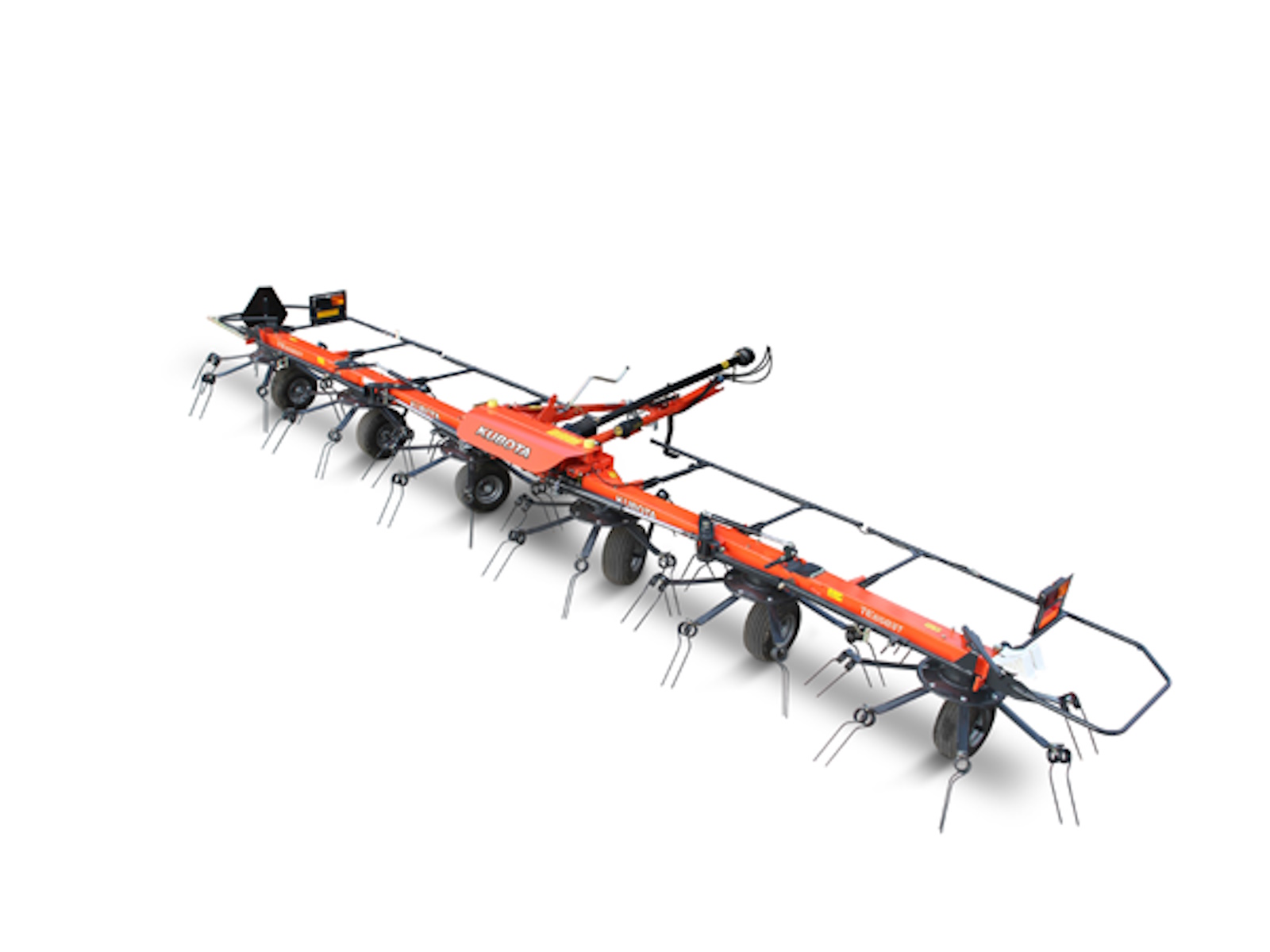

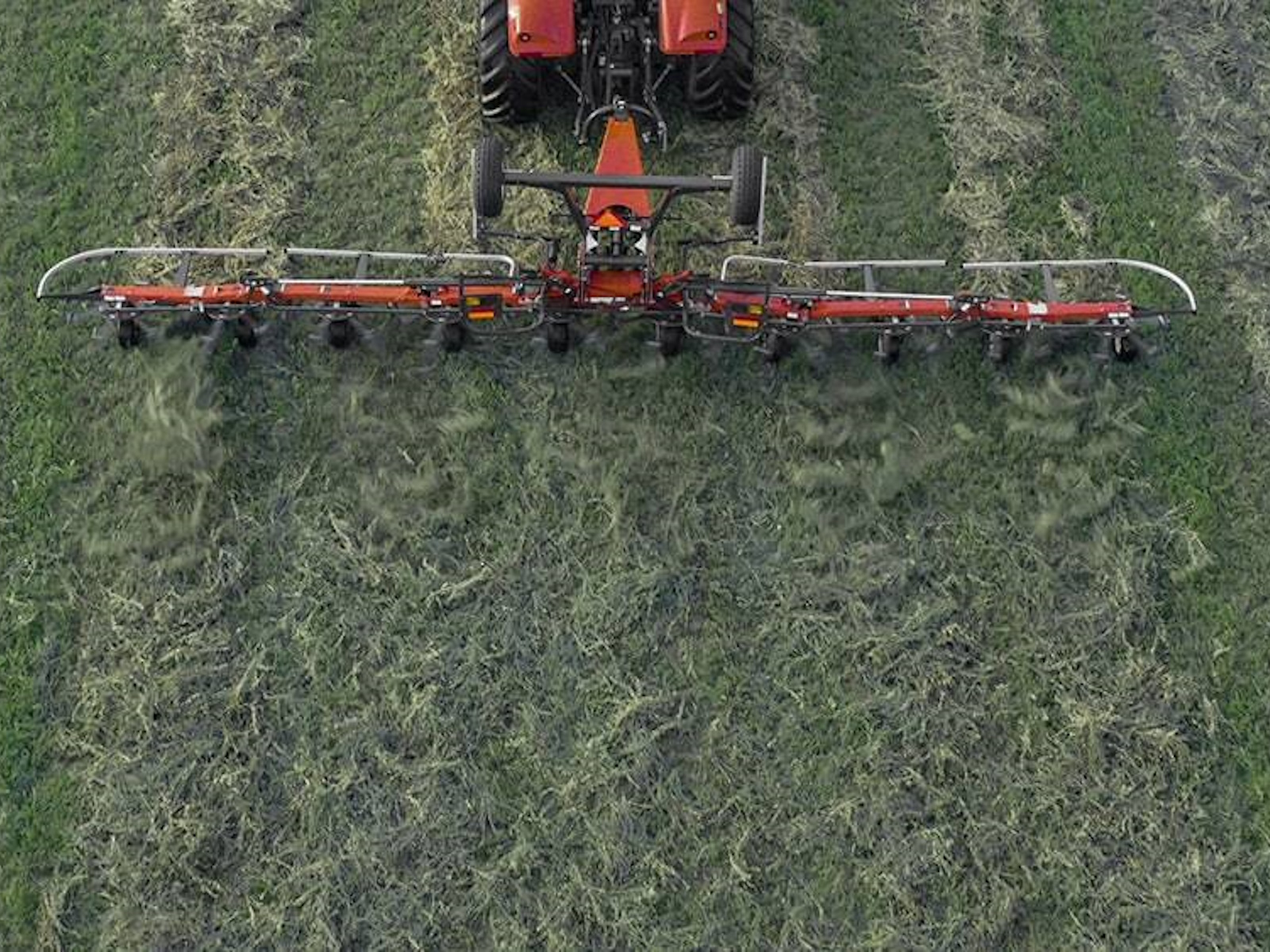

The premier tedder experience is easily found in the Kubota TE10511C and its 36’ 9” working width makes haymaking efficient! The tedder’s Super-C tines spread the crop in an inverted fashion, meaning the lower crop is placed on top, providing you with an even dry down. Kubota’s commitment to durability is showcased in the tedder’s rotor gearbox and chassis, and with a transport width of just 9’ 7”, you’ll swear the TE10511C is your new best friend.

Features May Include:

Easy Transport

• Kubota's TE10511C is easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Model is approved for 25 mph.

Strong Chassis Design

• All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

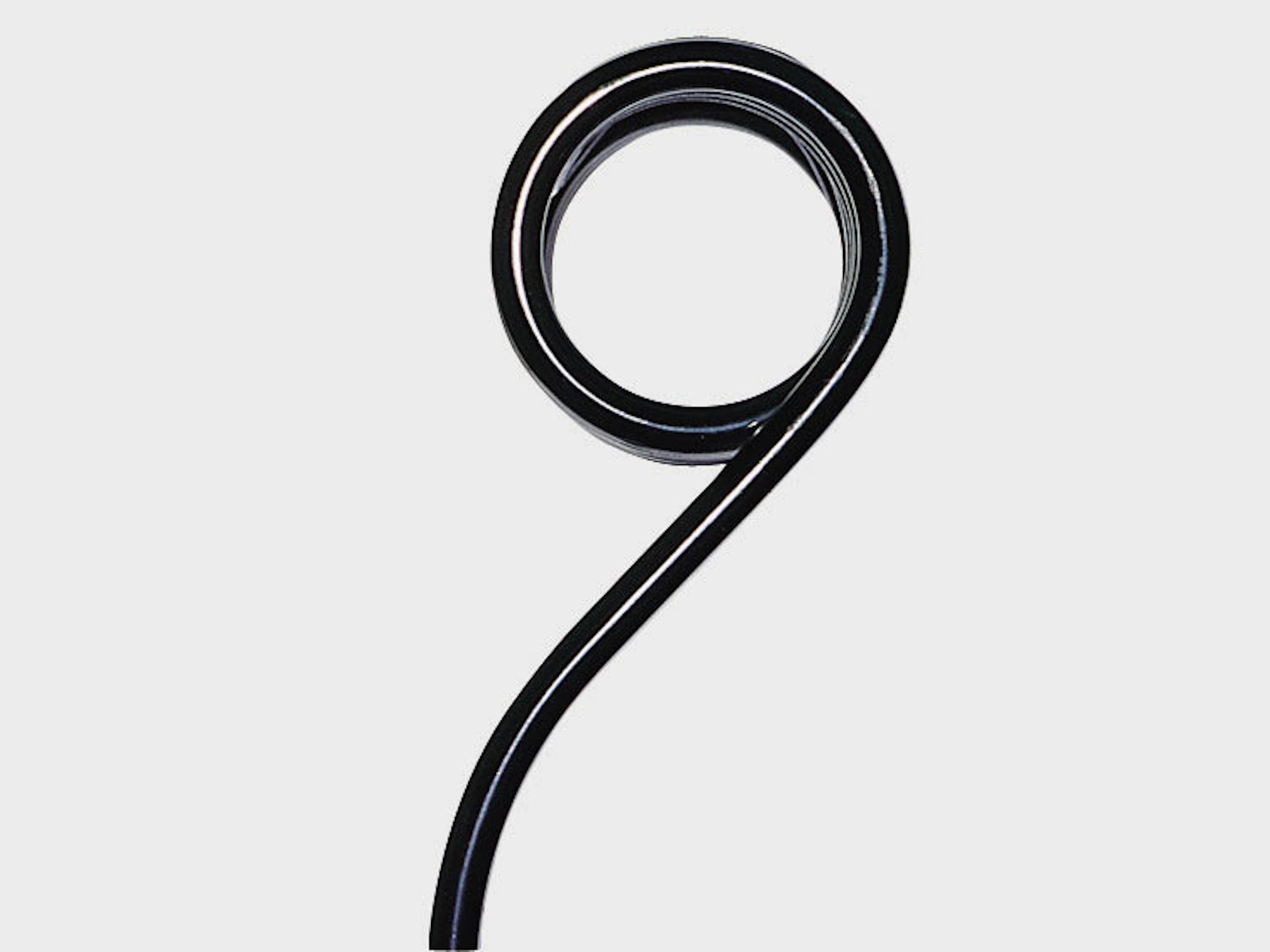

Super-C Tine

• The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

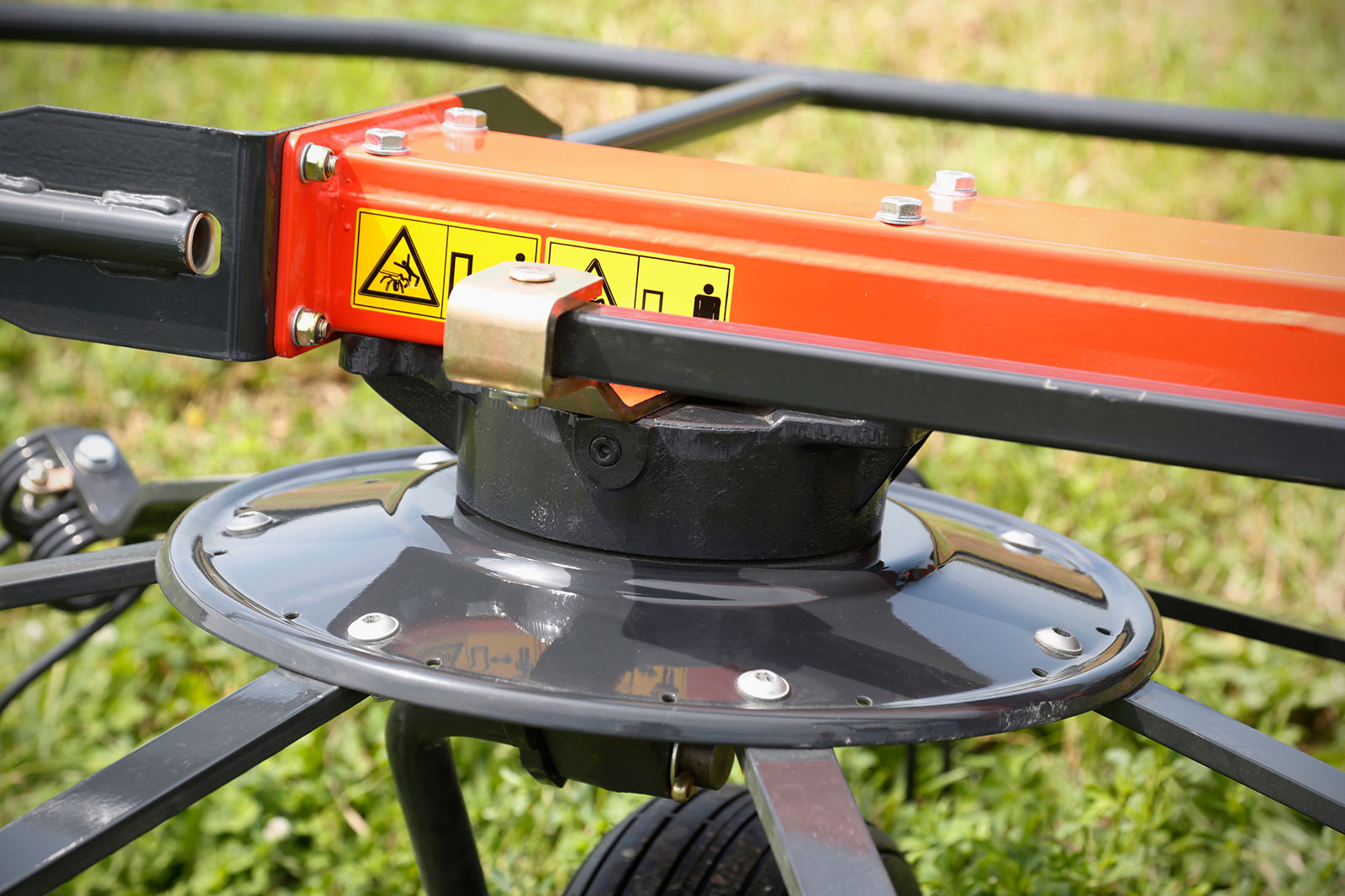

Rotor Gearbox

• These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

Large Working Widths
Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

• TE6583T – 27'3"
• TE8590C – 29'6"
• TE8511T – 36’1”
• TE10511C – 36'9"

Optional Features:

• Reduc. Gearbox for Night Swaths
• Front Wheel (16 x 6.5-8)
• Tandem Axles
