Description

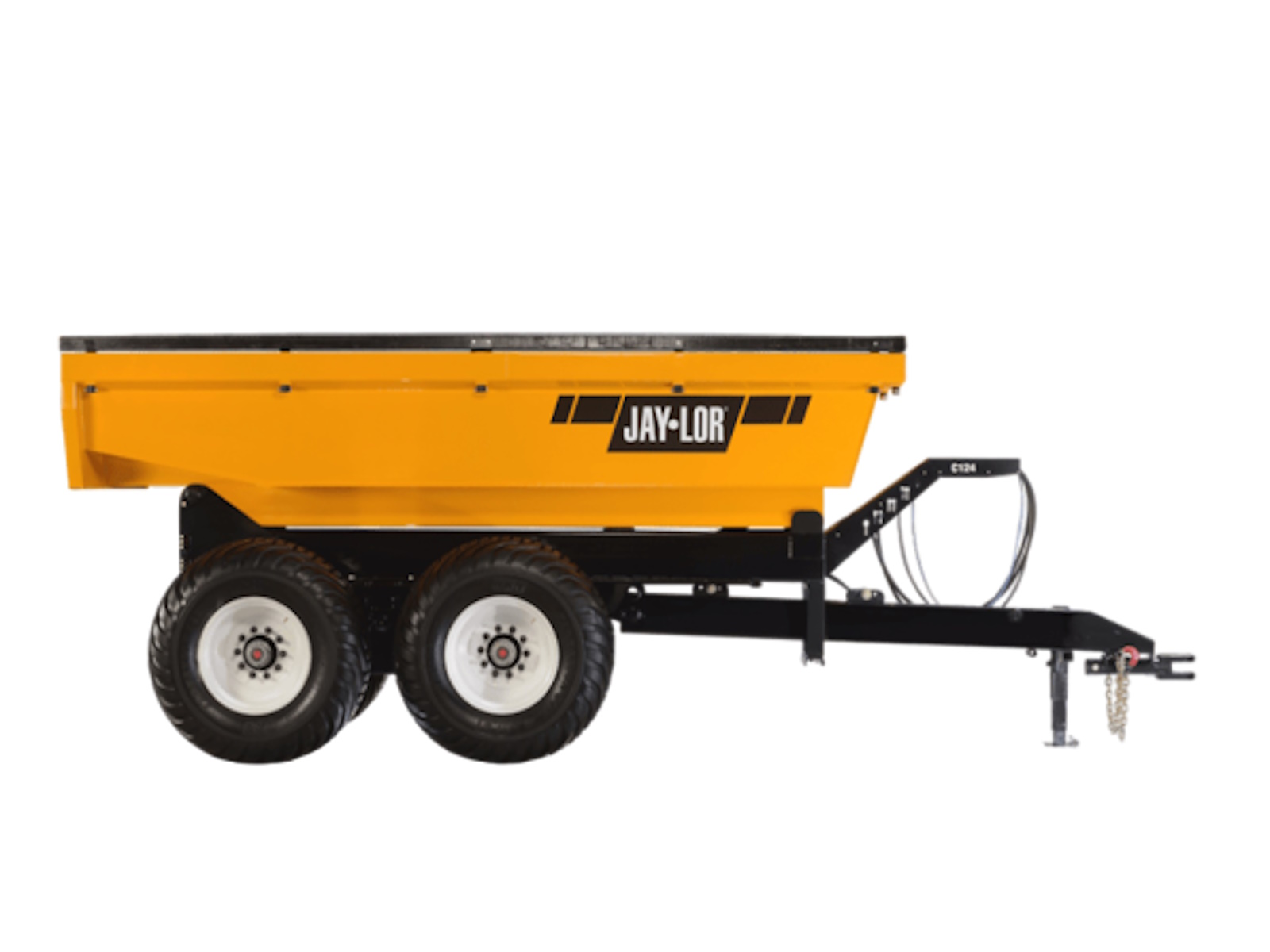

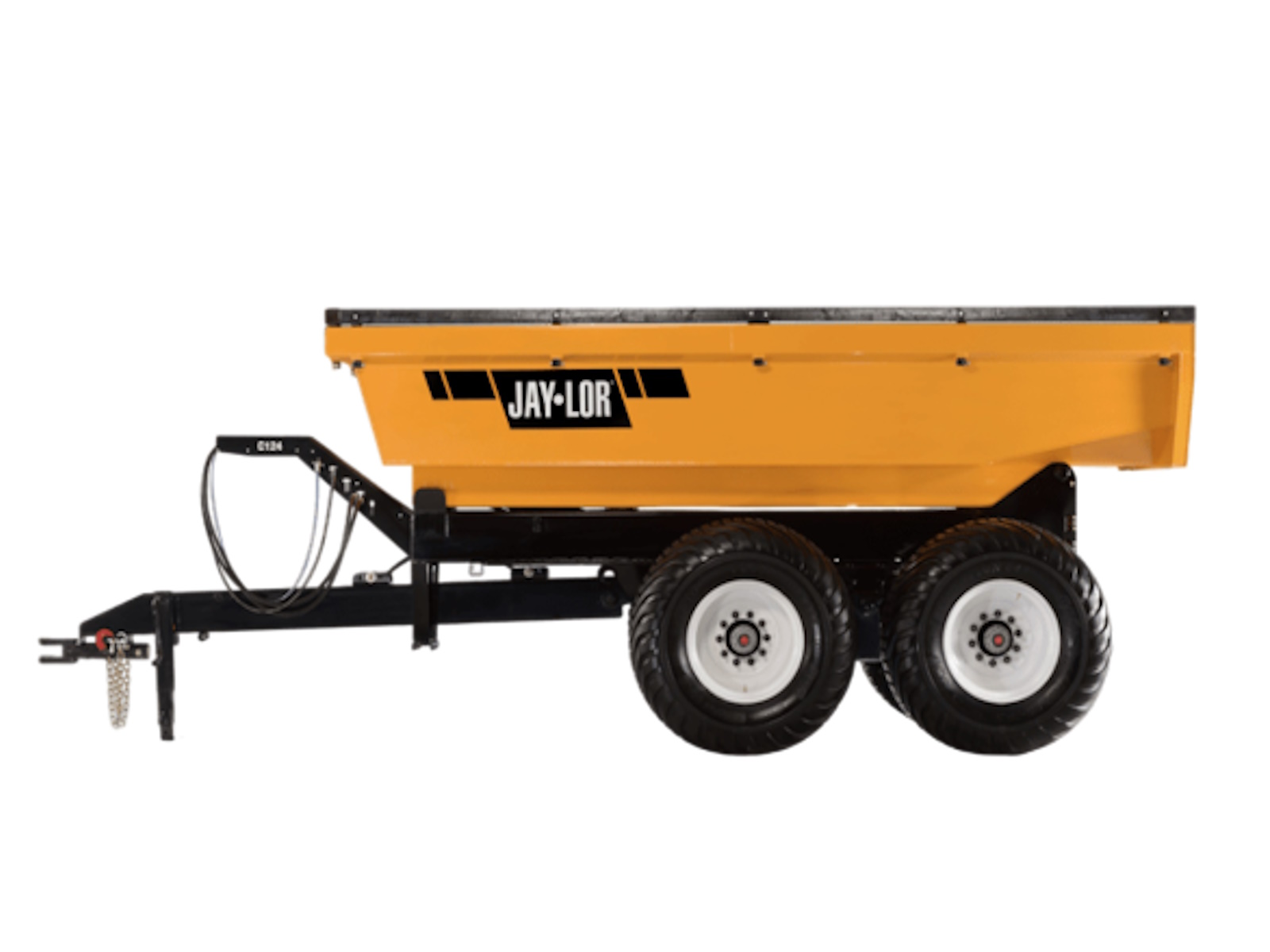

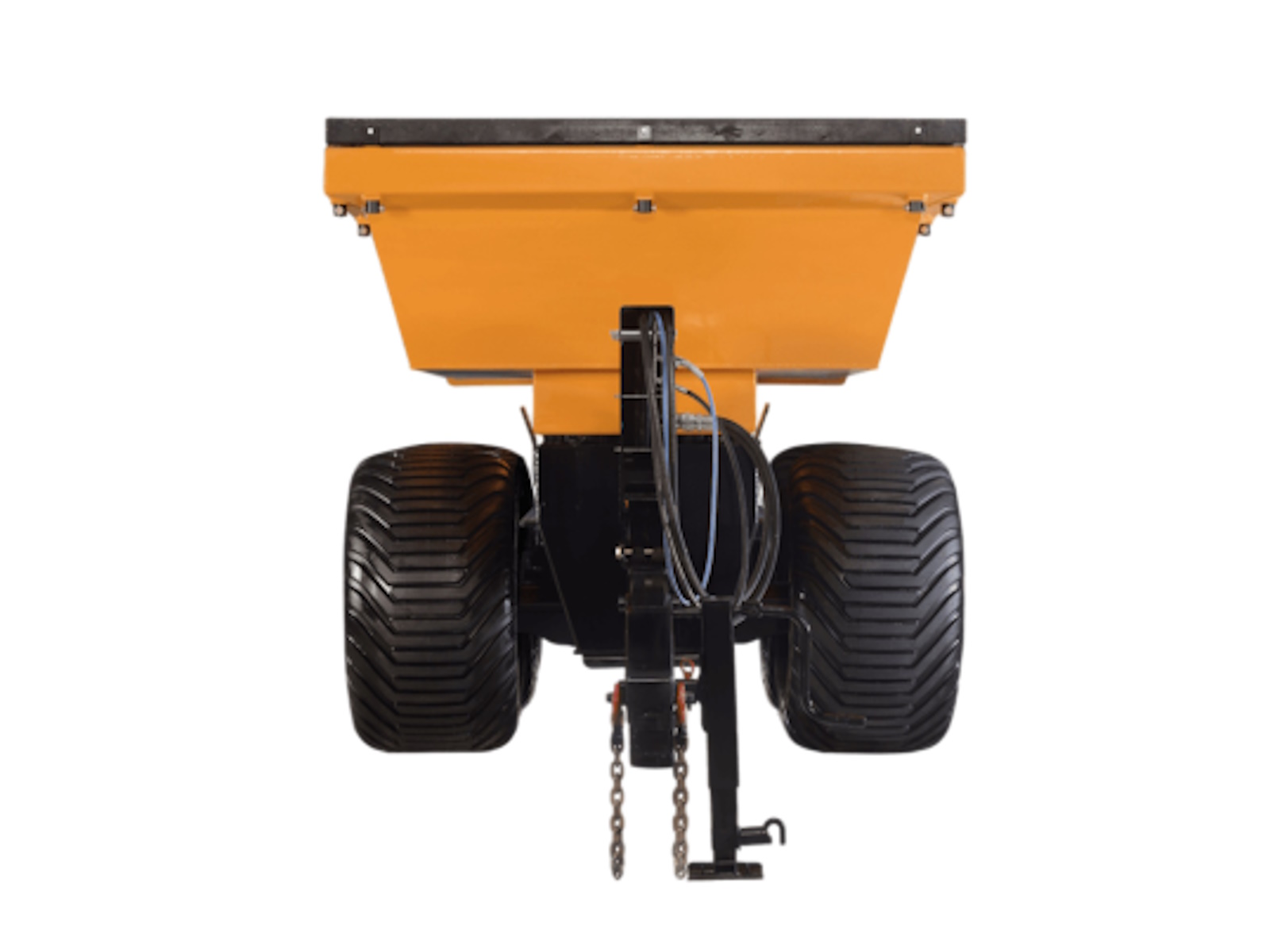

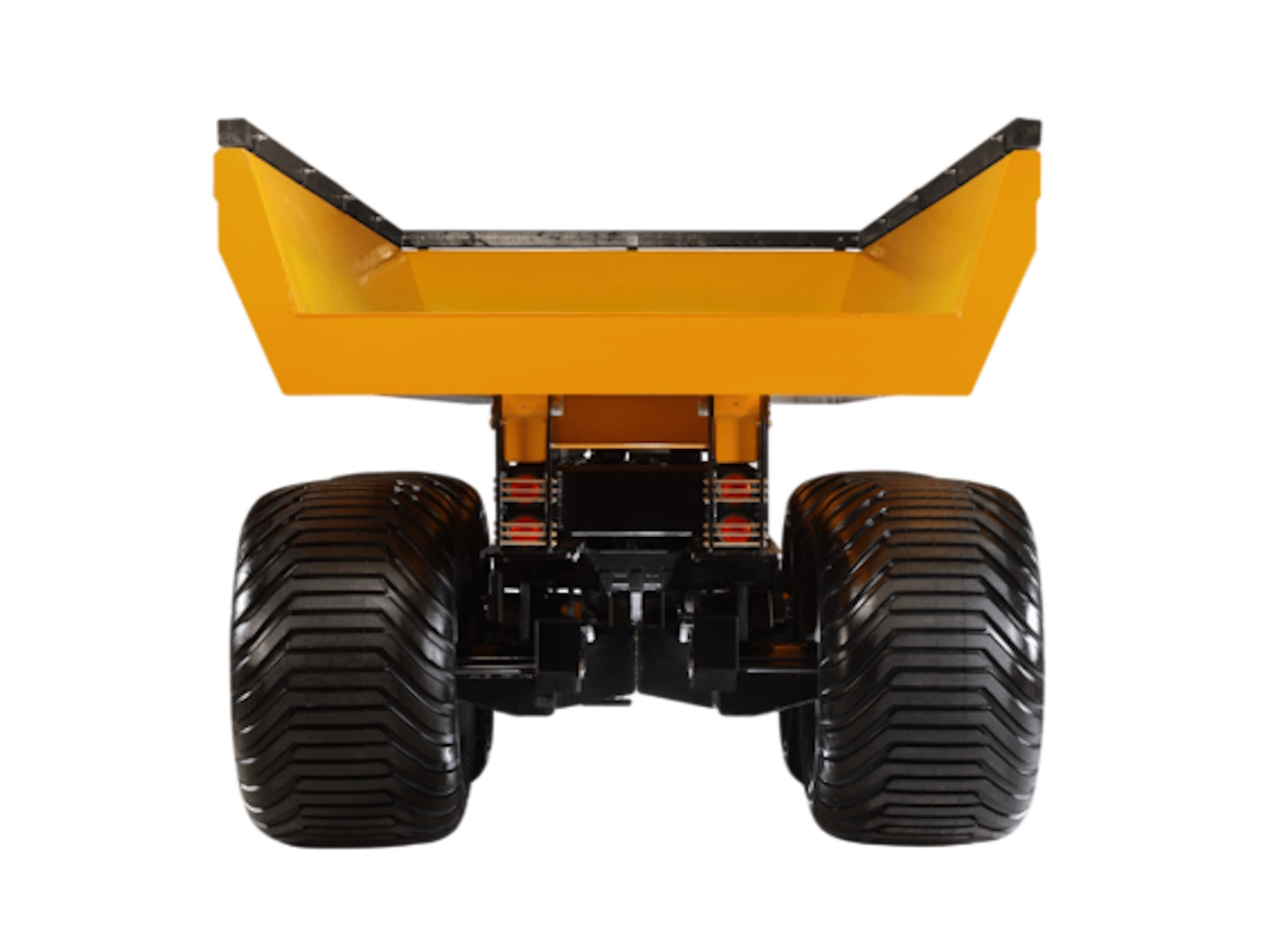

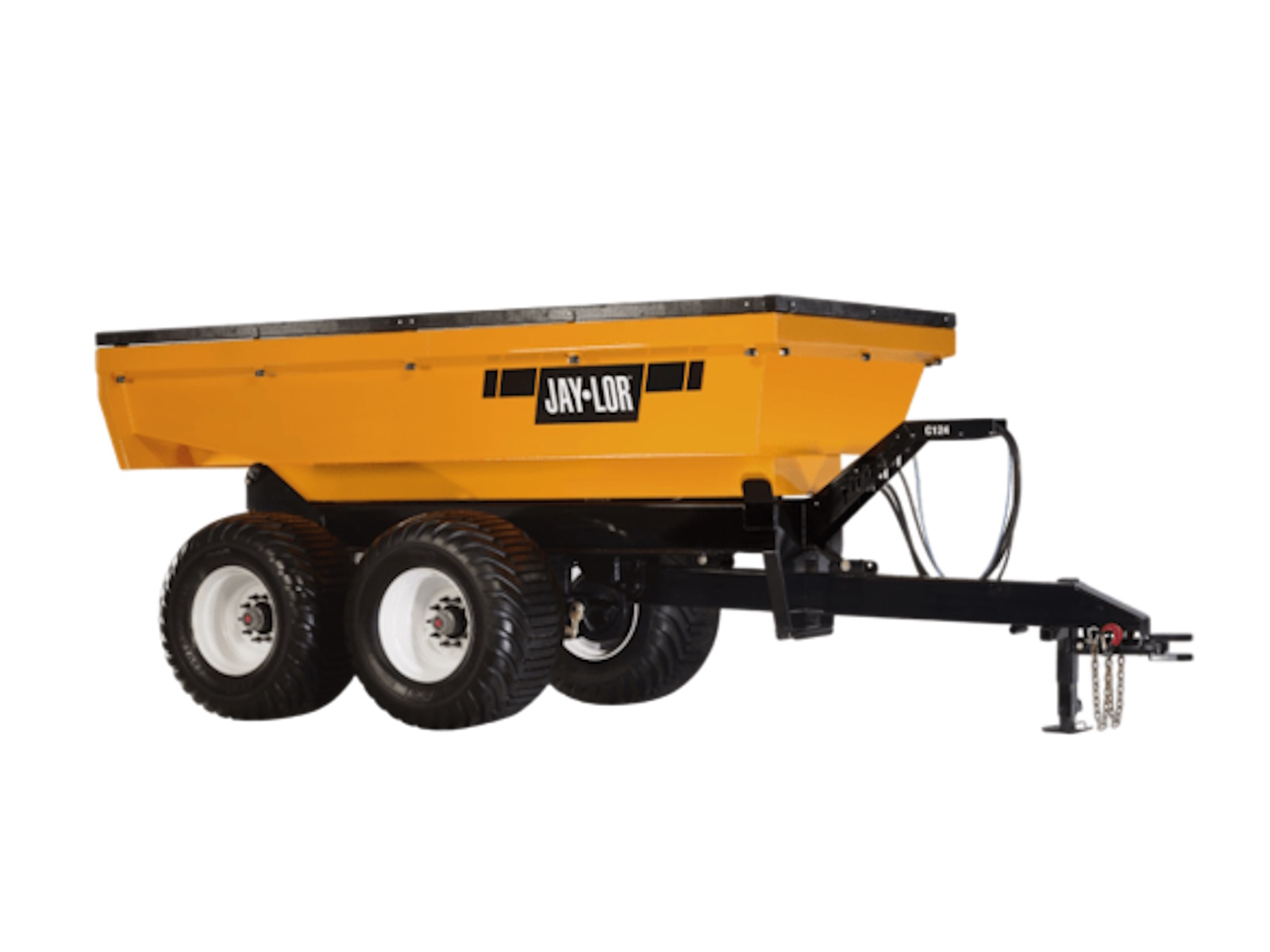

2025 Jaylor C124
The C124 Construction Dump Wagons are engineered to excel in the most demanding conditions. Our unique dual-double-acting cylinder configuration provides exceptional stability while requiring less oil volume than conventional multi-stage cylinders. Material easily flows out due to the aggressive body taper, often emptying the wagon in less than 20 seconds.
The box is constructed from AR400 steel, fully welded and reinforced through the engineered monocoque body. Jaylor is a class of its own when it comes to durability and never compromising payload-to-weight ratio. Fatigue-beating tongue suspension and unsurpassed visibility of shallow tapered sidewalls help you keep material and profits flowing.
Features May Include:
- AR400 Steel Body with extra heavy floor
- Heavy Duty Walking Beam Axle
- Dual Lift Cylinders for added Power and Stability
- Double-acting Cylinders for Rapid Box Decent
- Spring Suspension Tongue
- Wood Protection Rails
- Protected LED Road Lights
- 7 Position Adjustable Axle
- Tapered Body for Easy Unloading
- Manual Implement Jack
Info
Industry
Agriculture
Make
Jaylor
Model
C124
Trim
Base
Year
2025
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Dump Trailer
Specs
Load Capacity
Struck: 300ft³ | Heaped: 470ft³
Weight
60400 lbs
Height
96 in | Box Height: 34 in | Loading: 96 in
Length
274 in | Box Floor: 191 in | Box Top: 191 in
Width
107 in | Box Front: 68 in | Box Rear: 72 in
Tires
445/65 R22.5 RADIAL (4) | Recommend: 700/40 22.5 BIAS (2)
Wheels
Tandem Walking Beam
Cylinders
Twin Double-Acting
Oil Capacity
From Tractor: 2.64GAL
Notes
Tongue Style: HD Spring Ride| Dumping Angle: 55DEG | Cycle Time: 55SEC | Floor Material: AR400 | Floor Thickness: 3/8in | Wall Material: AR400 | Wall Thickness: 1/4in | Pit-Run Gravel Heaped Capacity: 48700 lbs | Top Soil Heaped Capacity: 36100 lbs | Wet Sand Heaped Capacity: 46600 lbs | Beef Manure Heaped Capacity: 24 300 lbs
