2026 Great Plains 3P606NT

2026 Great Plains 3P606NT

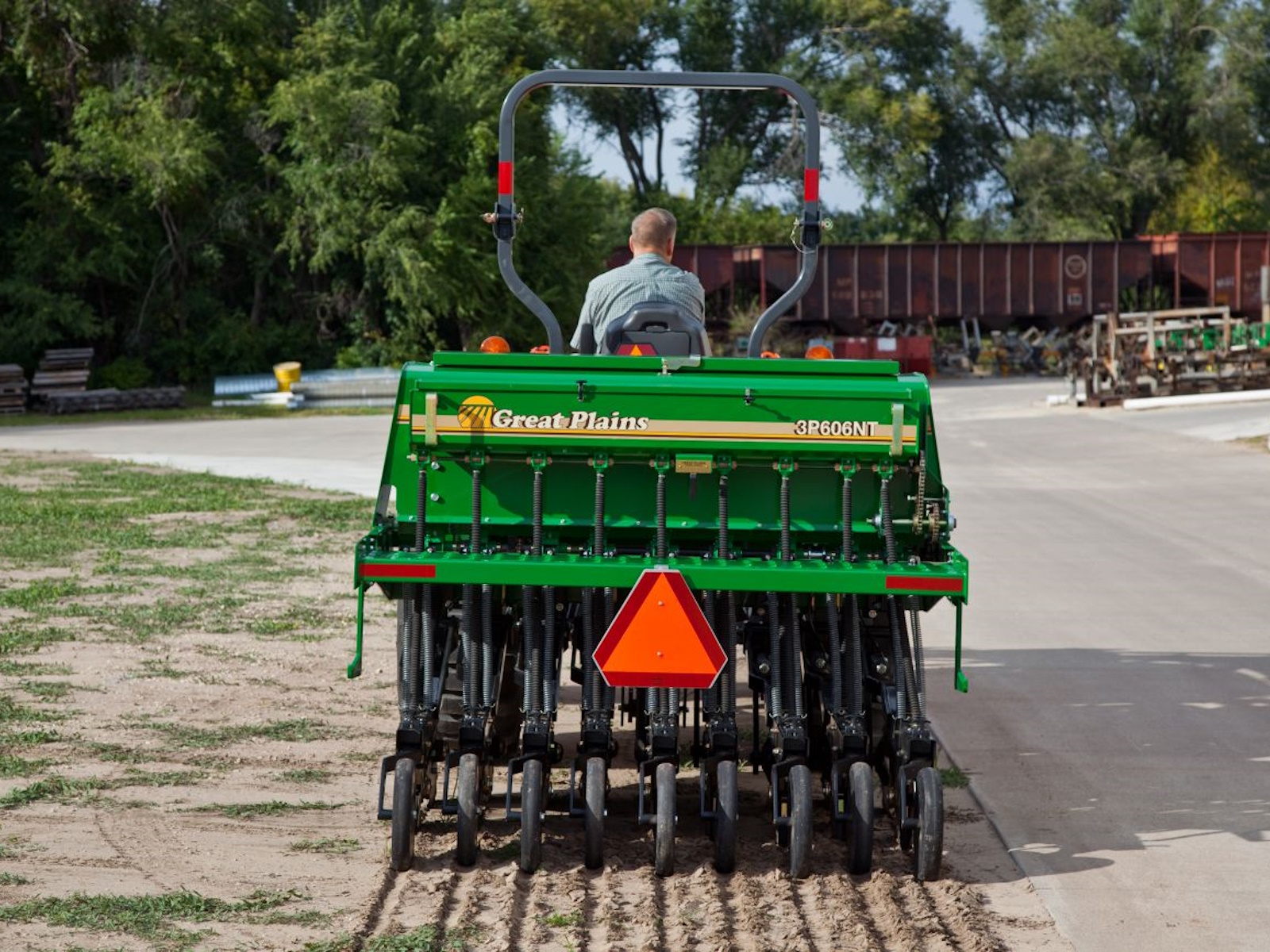

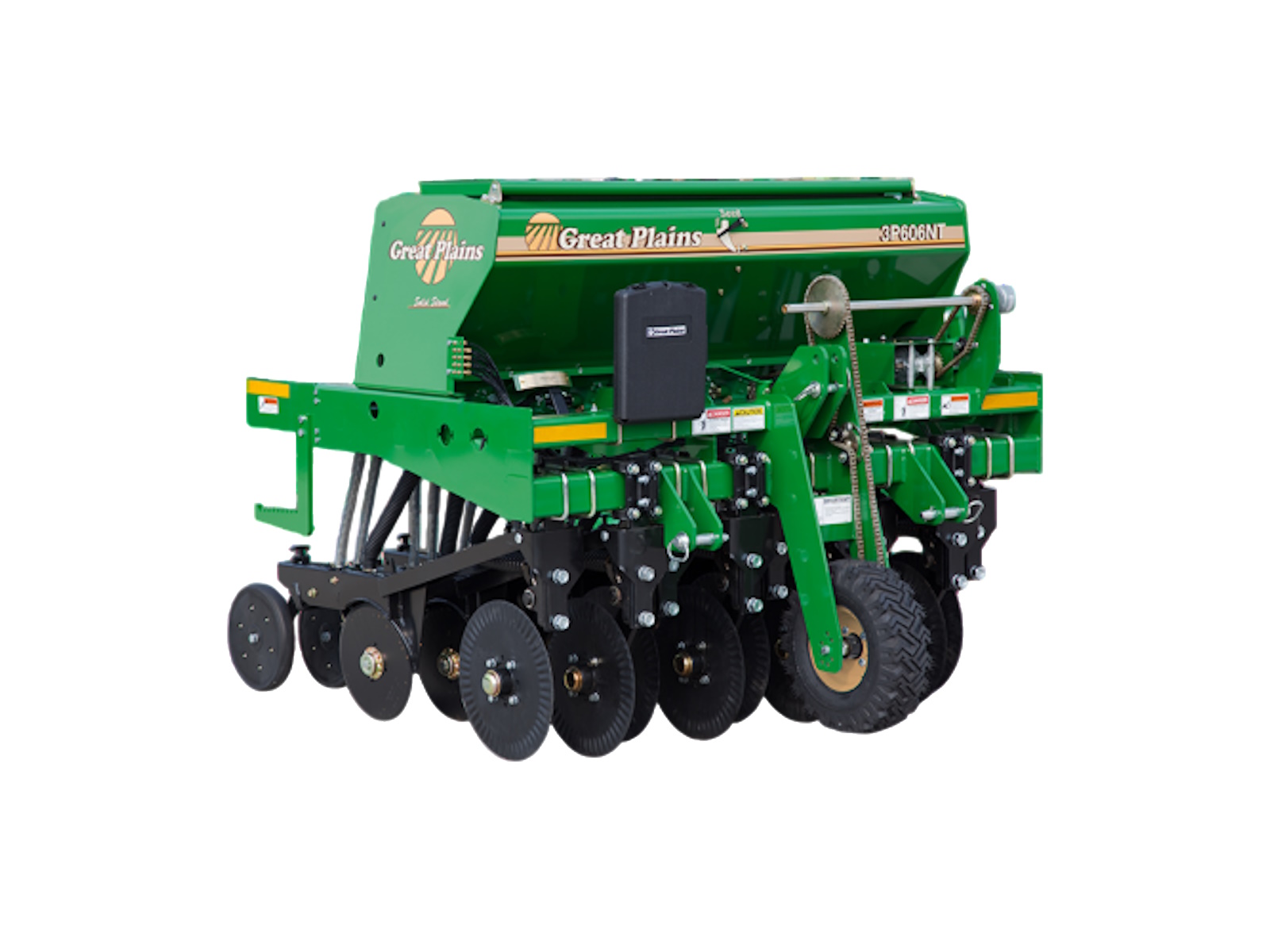

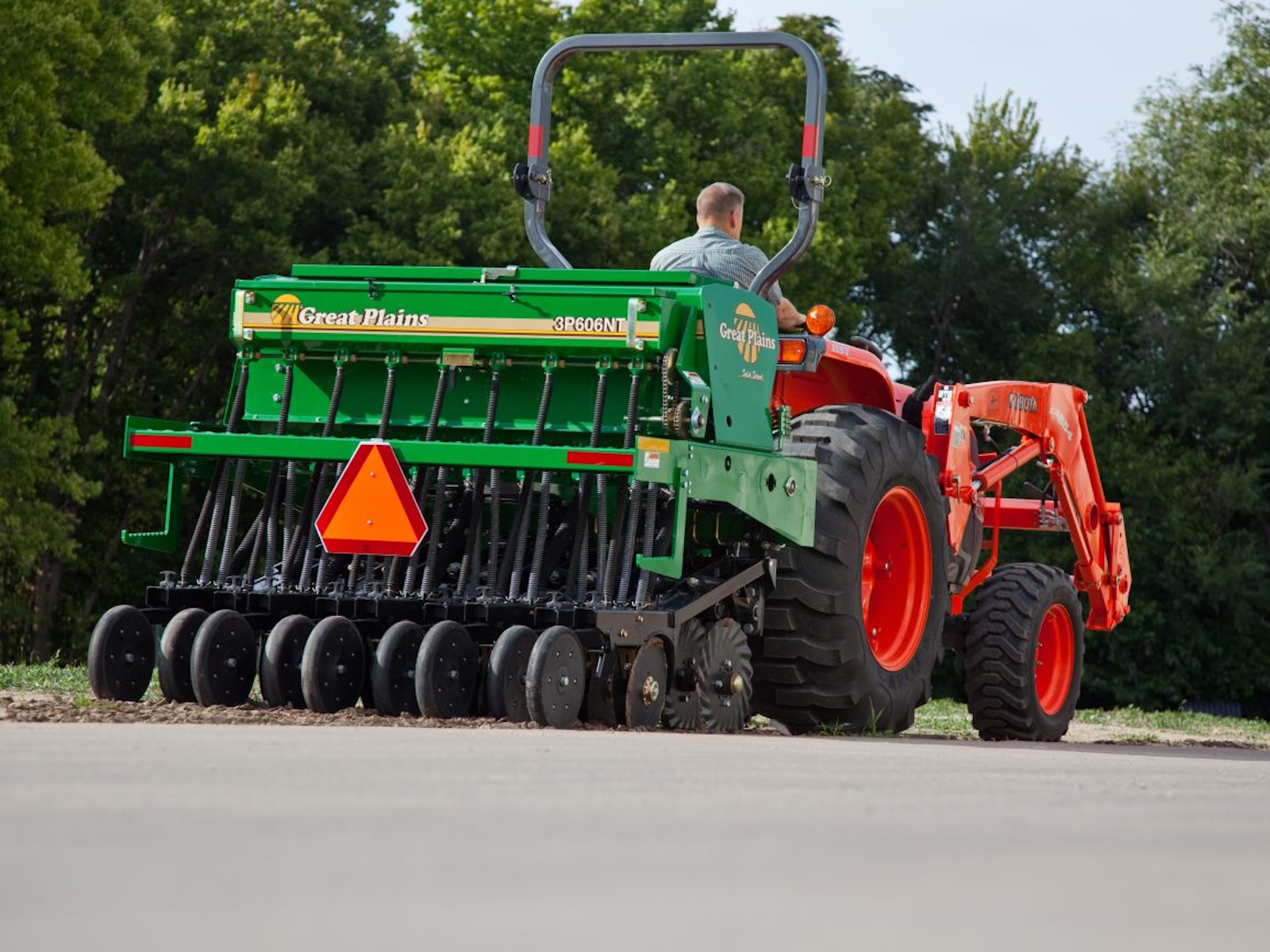

6' Mounted No-Till Compact Drill

Seed close to field edges with the 3P606NT 3-Point Mounted No-Till Drill. This rugged 6' seeder is ideal when space is limited or when maneuvering among trees and other obstacles.

Loaded with features, this heavy-duty no-till includes 450 lb. pre-loaded coulters, an easily-accessible calibration crank, a ground-driven metering system, and rain-tight seed box lids.

Equipped with the finest double disc min-till opener, the drill’s lead coulters are staggered 4" to aid in residue flow while preparing a mini-seedbed for the 06 Series Openers to plant into. Coulter blade options include 5/16" fluted or our exclusive 5/8" Turbo Blades.

All 3P606NTs come standard with V-bottom seed box inserts. A native grass seed box can be added for seeding big and little bluestem, smooth brome, and other “fluffy” native grass seed mixes. A small seeds box, which is a smaller version of the standard fluted feed box, can also be added to accurately meter small seeds like clover and alfalfa. Add both boxes to seed three different types of seed at the same time – all at different rates.

Features May Include:

06 Series Opener

• The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter to cut residue and prepare a mini seedbed for the trailing double-disc opener. The opener discs are 13.5" in diameter and 4mm thick with 205 triple-lip sealed bearings, and ¼" opener disc lead. Our unique full-length seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place.

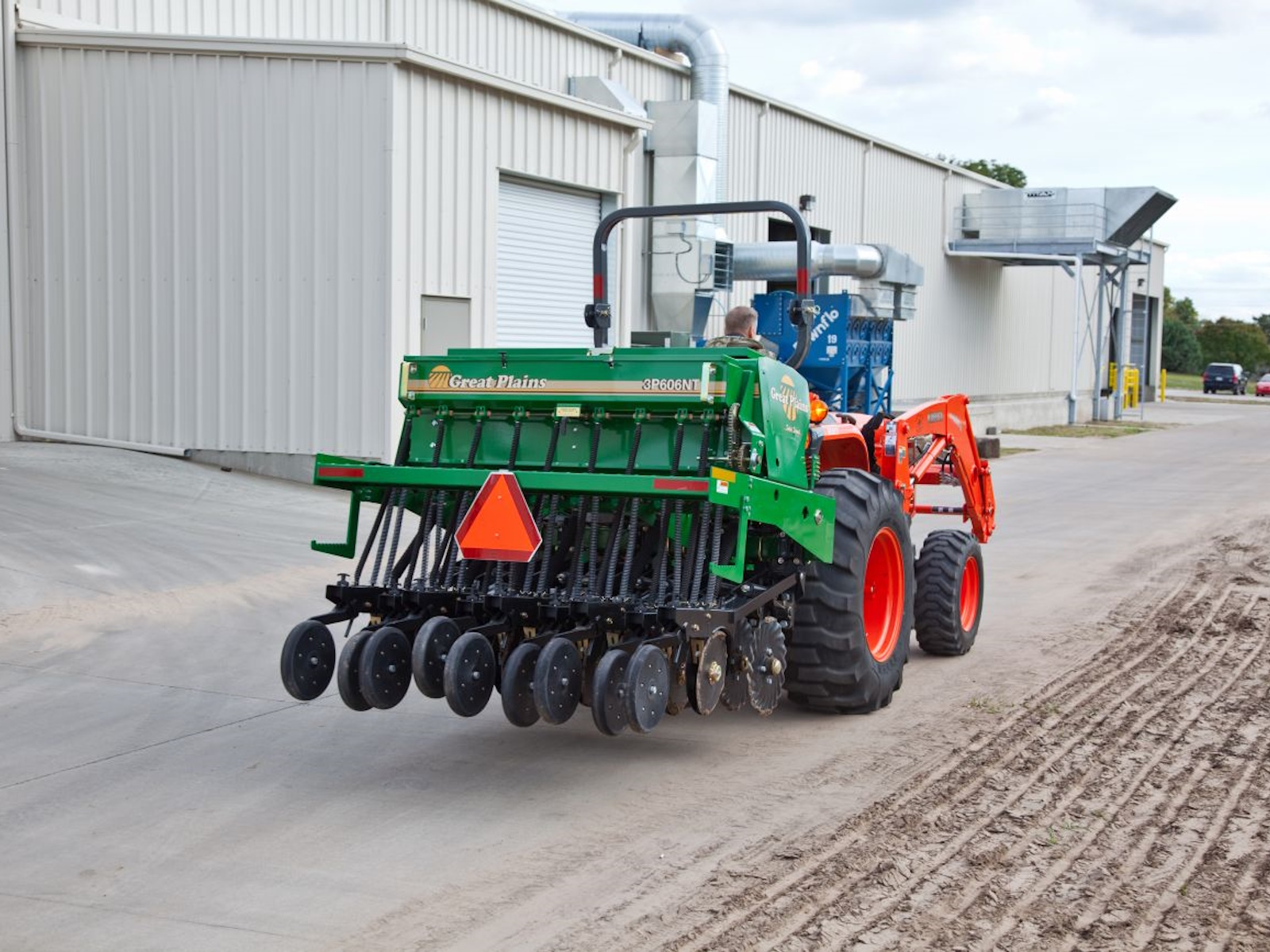

3-POINT MOUNTED

• Category II 3-point mounting setup.

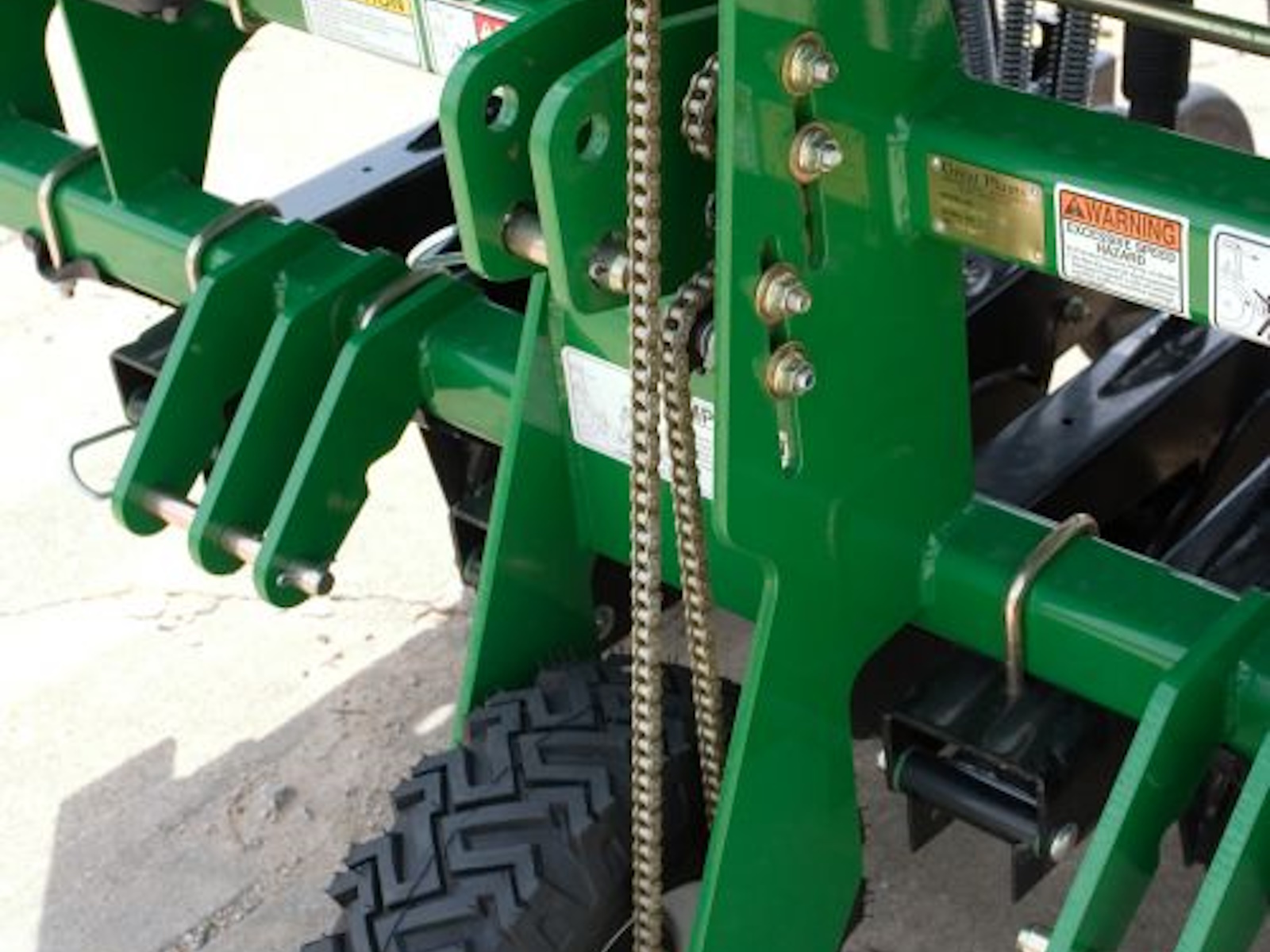

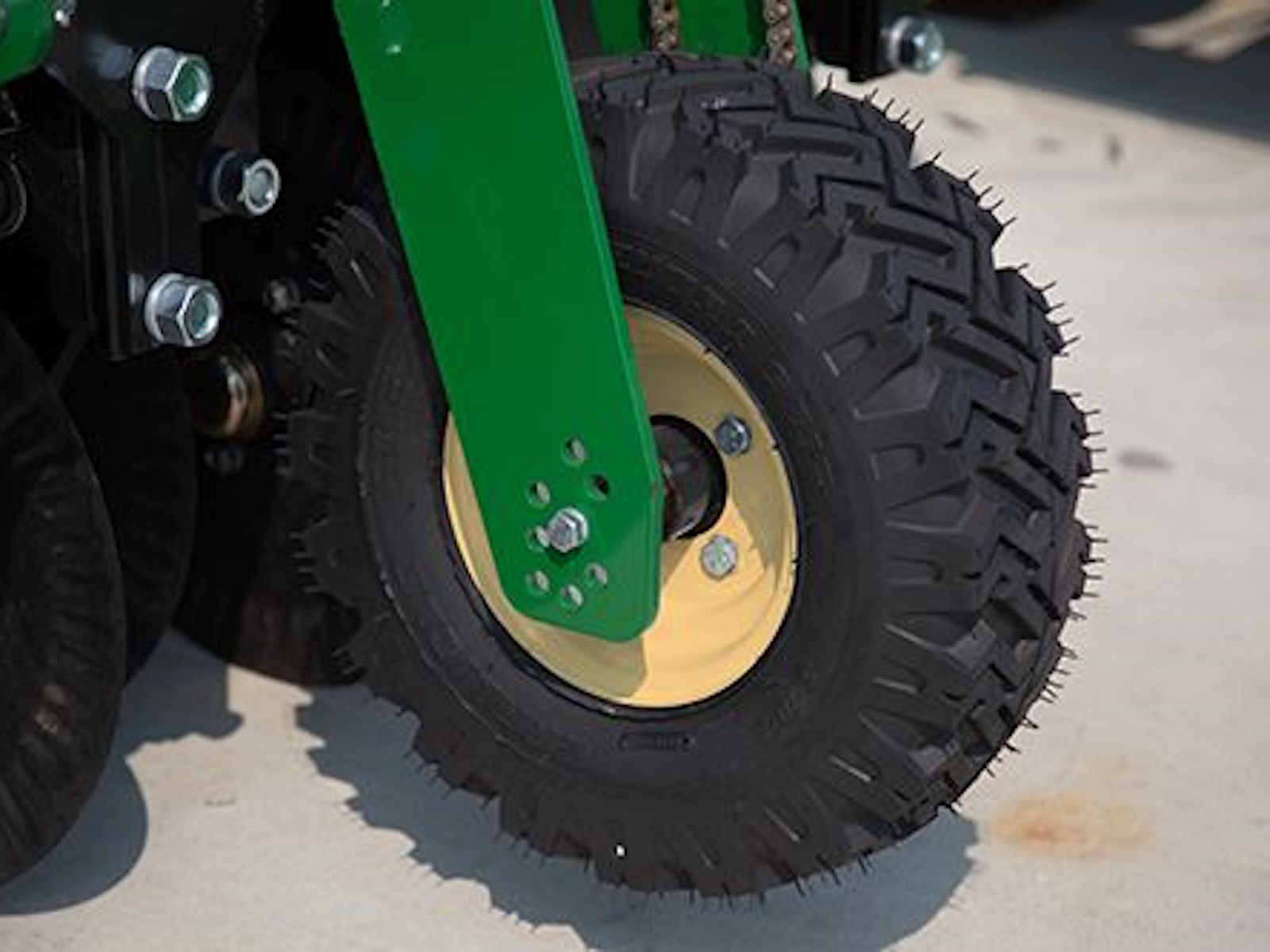

CENTER-MOUNTED DRIVE WHEEL

• Eight settings allow the height of the ground drive wheel to be repositioned as needed.

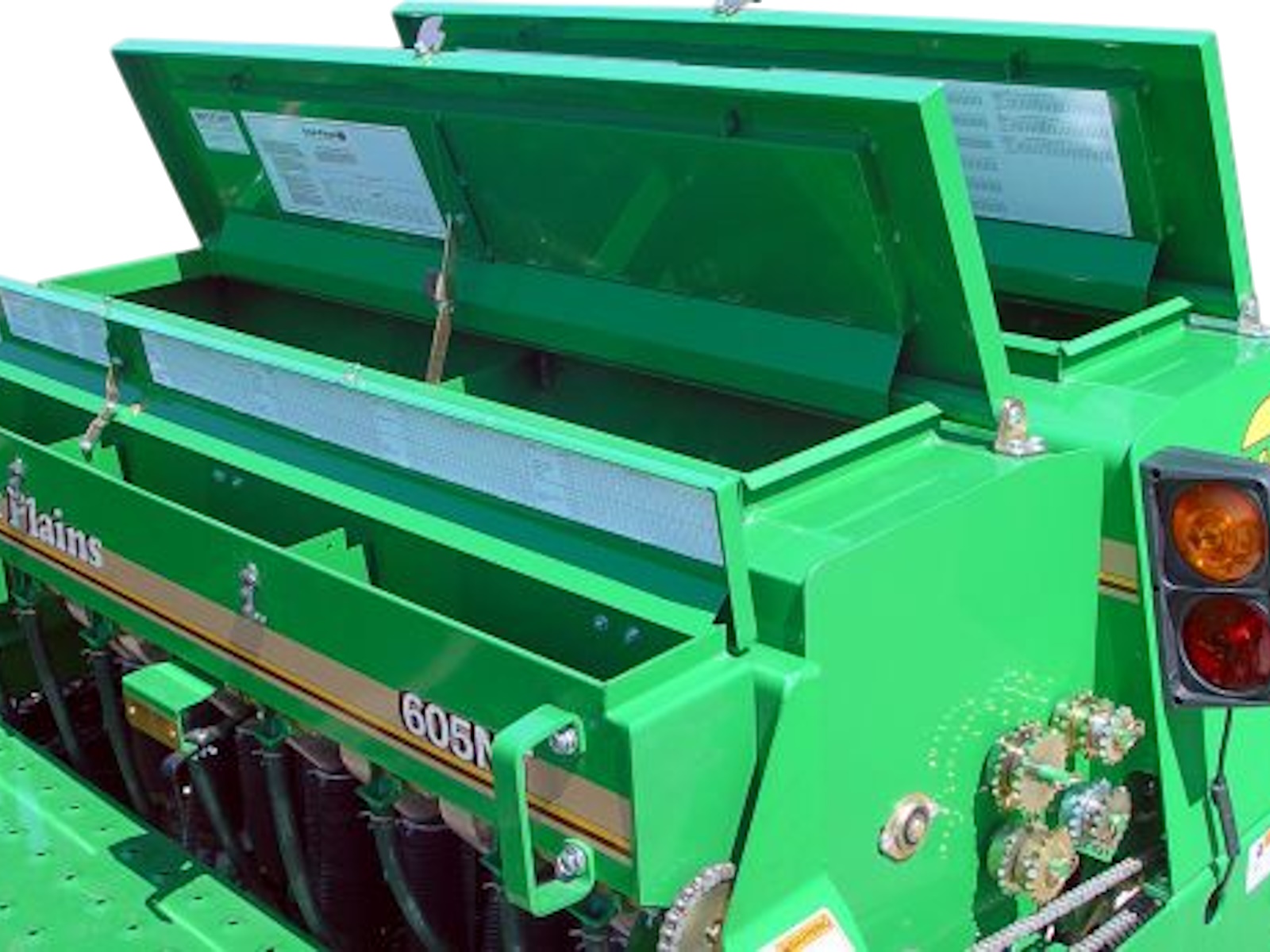

VERSATILE BOX COMBINATIONS

• Seed up to three different seeds at the same time (main seedbox, Native Grass, Small Seeds).

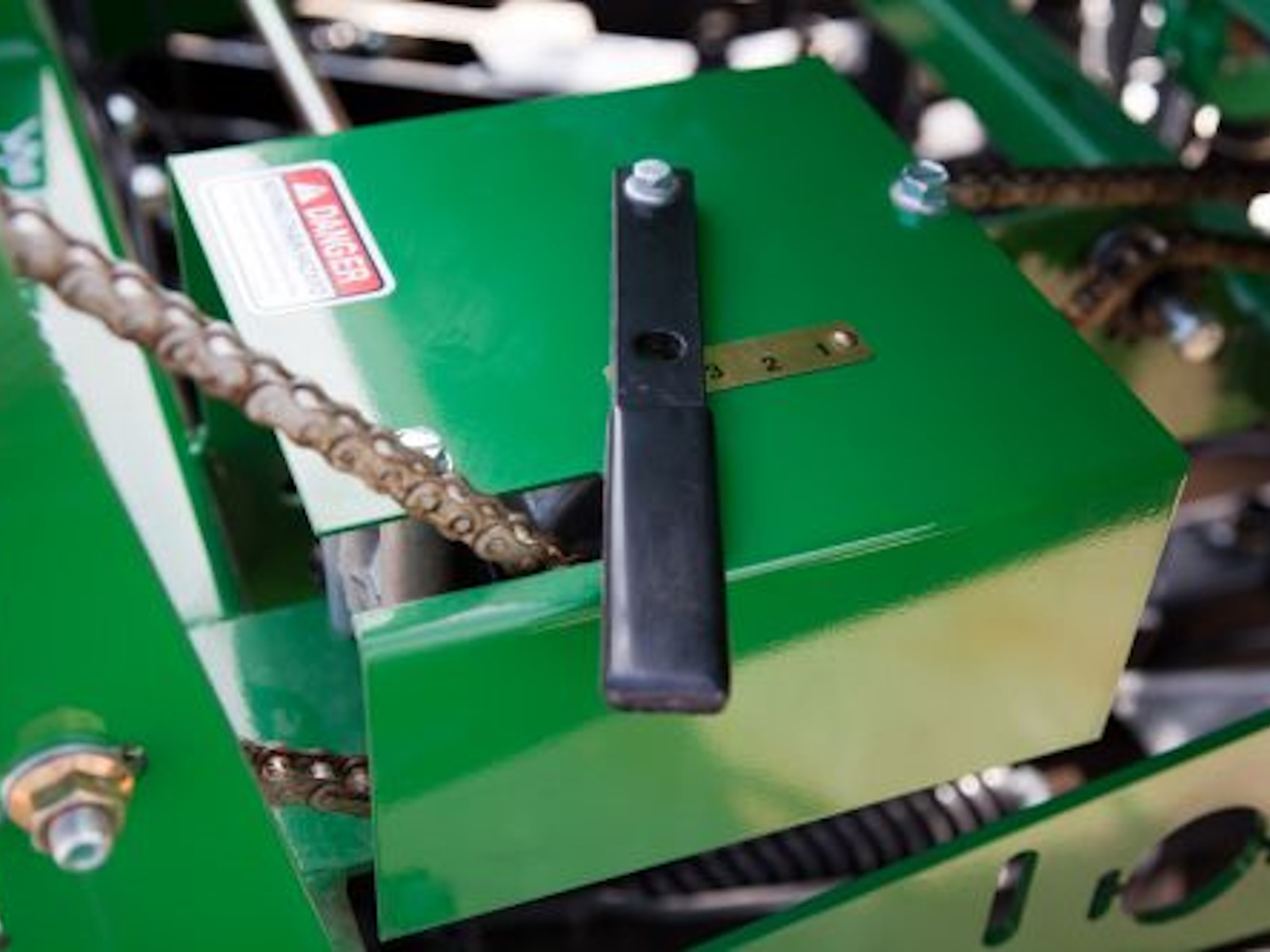

4-Speed Gearbox

• Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

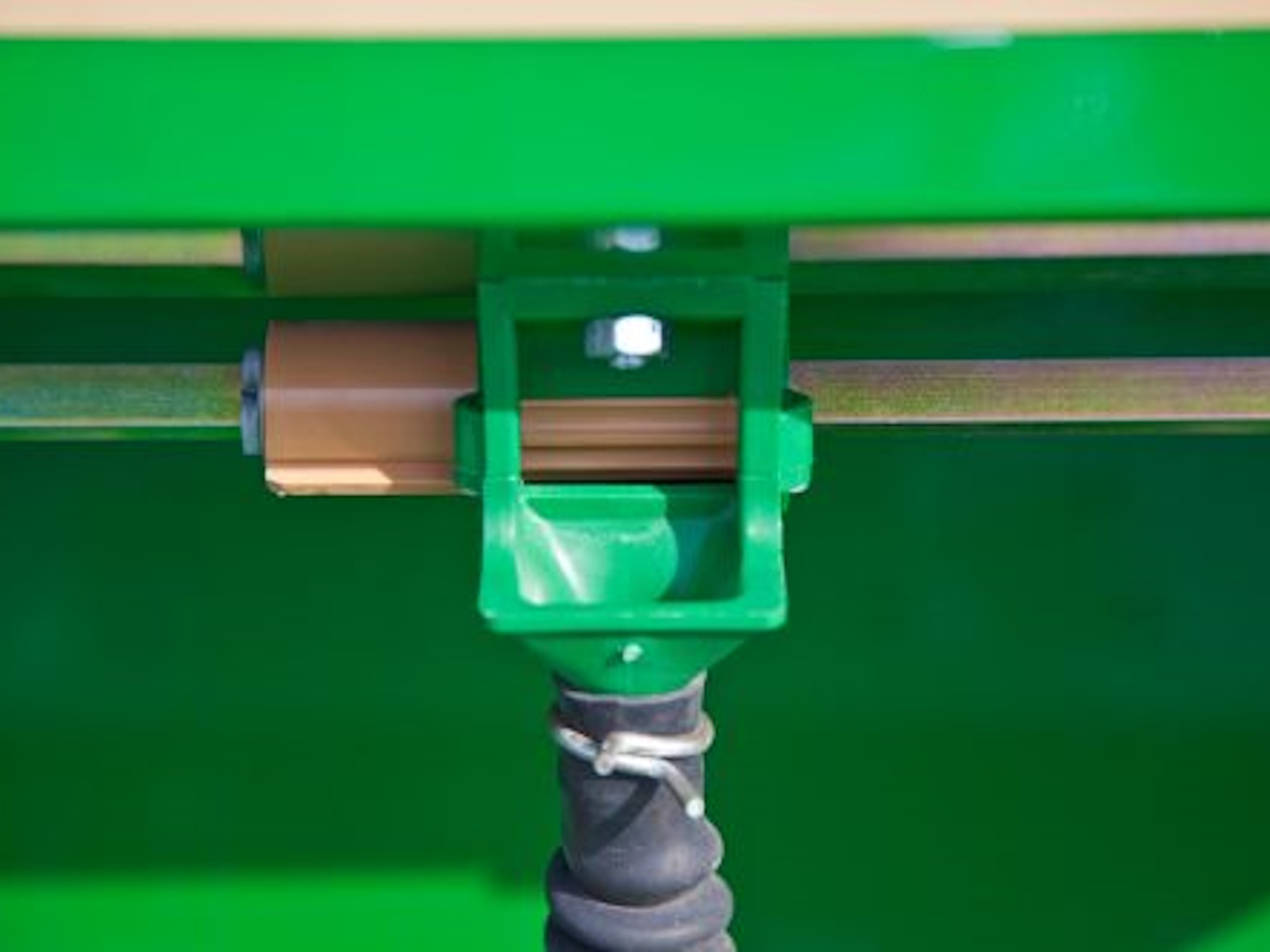

Fluted Seed Cups

• With powdered metal flutes, these 1¾" seed cups deliver outstanding accuracy.

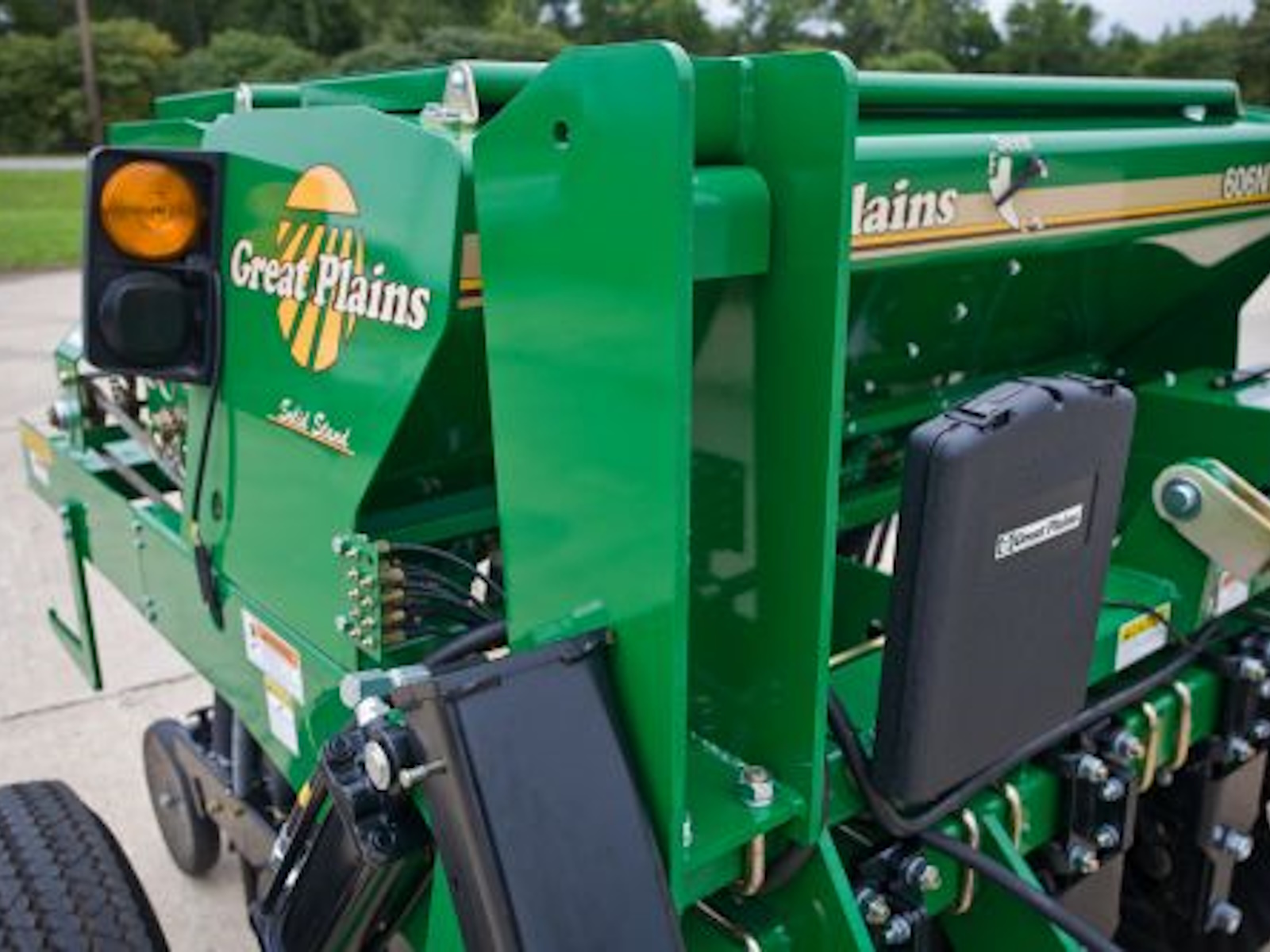

GreatPlainsAg Mobile App

• Calibrate your drill with the step-by-step calibration assistant. Access manuals, specs, maintenance guides, and more right from your phone.

Large Box Capacity

• With a 2 bu./ft. capacity, a larger seed box reduces downtime and covers more acres per fill.

Lead Coulter Options

• Choose between a 5/16" fluted coulter blade (left) that penetrates easily for minimum tillage or a 5/8" Turbo coulter blade (right) that is more aggressive and prepares a mini seedbed ahead of the opener. Preloaded springs offer 450 lbs. of down pressure per row on the leading coulter.

Press Wheel Options

• Choices include, from left, 3"x13" double rib; 3"x13" center rib; 2"x13" smooth; 1"x12" double-V; or double wedge-style press wheels that create a pinching action to close the seed trench.

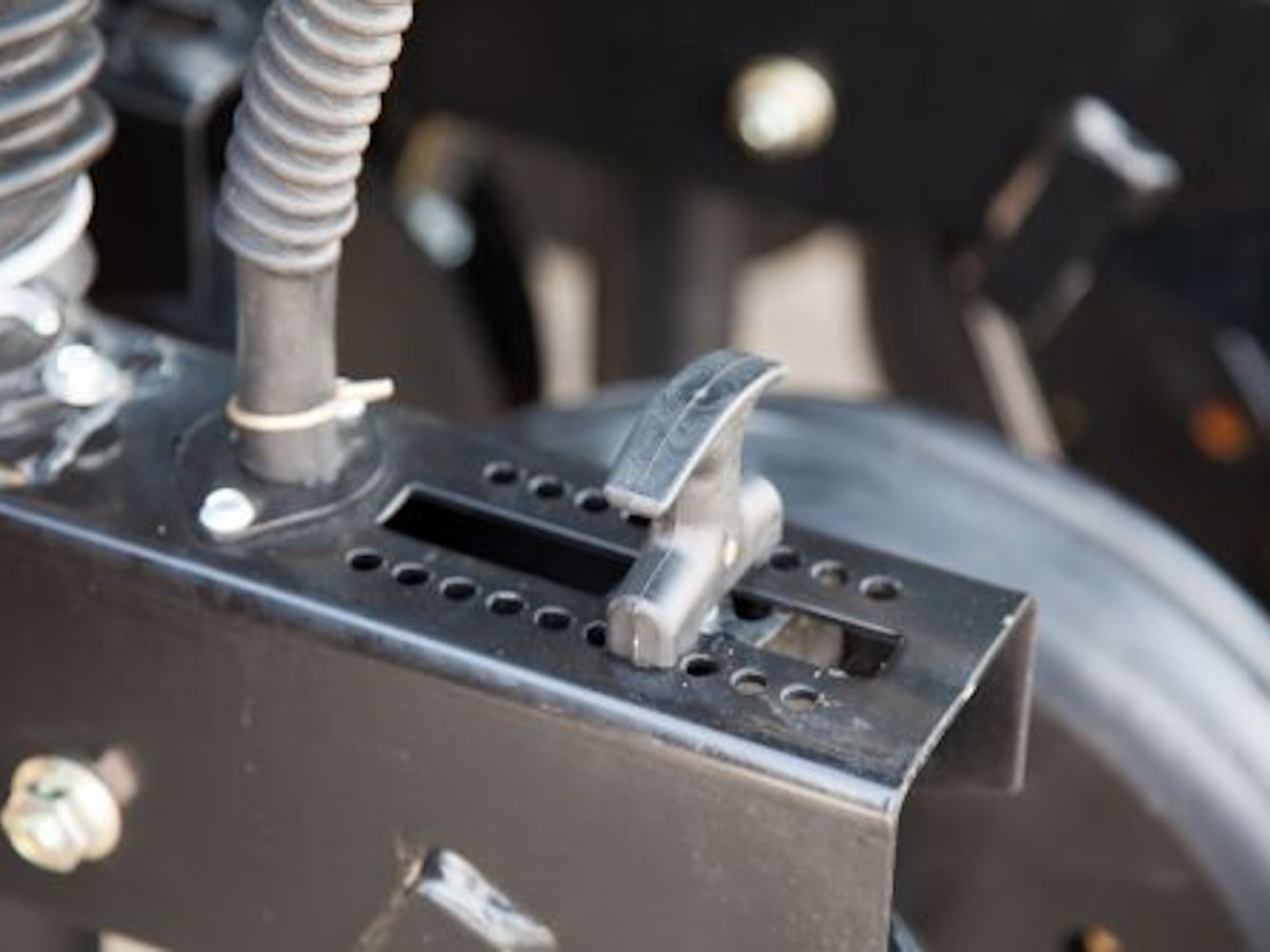

T-Handle Opener Depth Adjustment

• Provides 18 different positions for accurate depth control.

OPTIONAL SEED BOX AGITATOR

• Eliminates bridging and provides consistent seed flow to the seed cups.

OPTIONAL WEIGHT BRACKET

• A weight bracket that can be added to each end of the drill to add up to 600 pounds of weight for better penetration in extremely difficult no-till conditions.
