2023 Crary Stringer Trailers

2023 Crary Water Solutions Stringer Trailers

3 POINT MODEL

Category 2 or 3 hitch.

Electric brake for spool reel with corded remote - allows control of table speed for proper tile stringing.

Single circuit tractor hydraulics used for table pivot.

11 foot diameter table with folding wings for tile loading and allows narrow width at 8.5 feet.

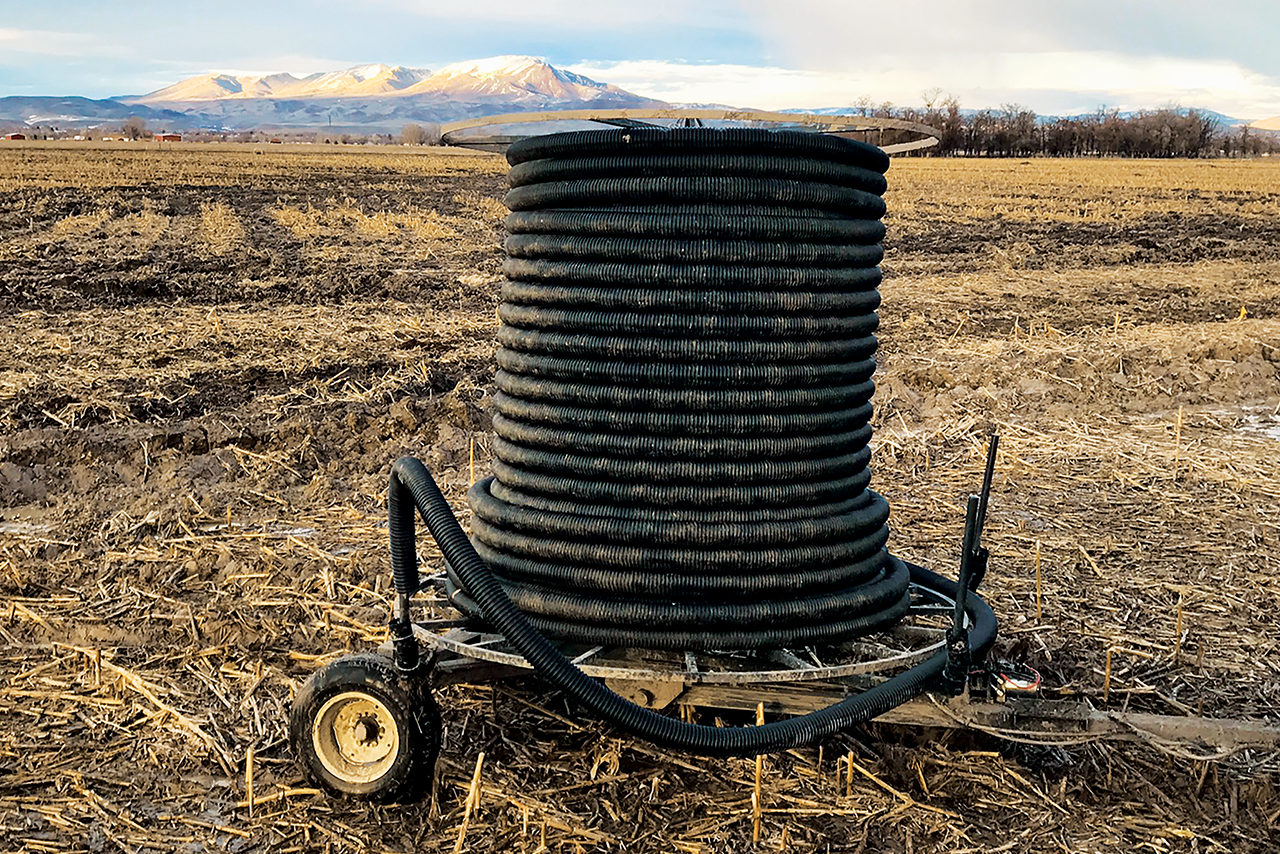

SINGLE-AXLE STRINGER TRAILER

Wide, heavy duty, high speed tires: 225-75R15

Running lights standard.

Simple, effective friction pivot table brake.

Heavy duty 8 bolt hub with 9.5 foot main table.

Includes 4 adjustable tile guides that help unrolling maxi rolls.

Full 10.34 inch diameter heavy steel mast, with over 8 feet of usable height.

Pin hitch.

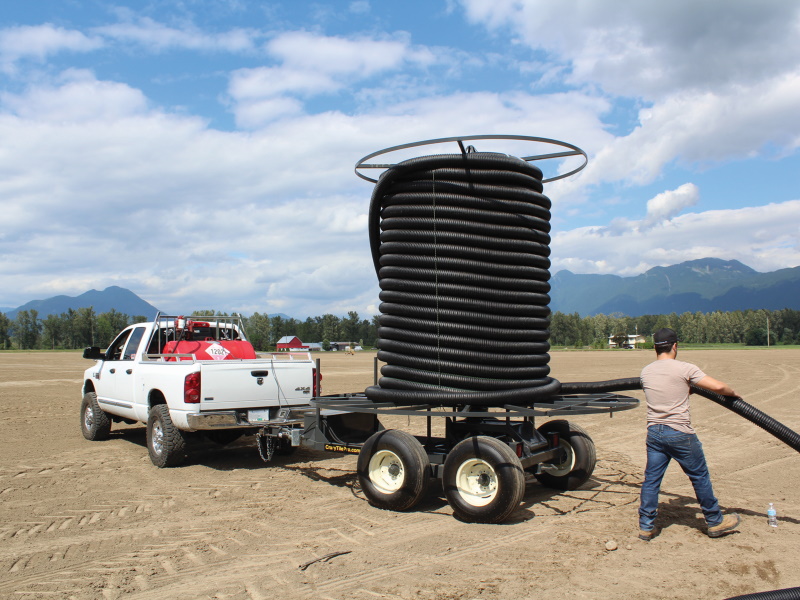

DUAL-AXLE STRINGER TRAILER

Walking tandem axle – improves ride in rough field conditions.

Heavy duty construction with bolt in replaceable table spindle.

Electric brake control & lift switch with 30 feet of rubberized cord – provides full control from tow vehicle.

11 foot diameter table with folding wings for tile loading and allows narrow width at 8.5 feet.

Electric brake for spool reel - allows control of table speed for proper tile stringing.

Optional heavy duty electric/hydraulic pump with tilt cylinder specced to provide fast cycle time for years of trouble free use.

Simple manual lock for table loading and when towing trailer.

Tail light kit for on-road travel.

11L-15 8 ply flotation tires.

Pin hitch.

TRUCK MOUNTED STRINGER KIT

Designed for 3/4 and 1-ton chassis.

Electric/hydraulic pump with optional enclosure.

Electric brake for spool reel - allows control of table speed for proper tile stringing.

11 foot diameter table with folding wings for tile loading and allows narrow width at 8.5 feet.

Installation fabrication required to mount onto truck chassis.
