2027 Case IH 610 Liquid System

2027 Case IH 610 Liquid System

From its large tanks to its big booms, and all the plumbing in between, the 610 Liquid System is designed to help applicators cover a lot of acres in a short window.

610 Liquid System Highlights

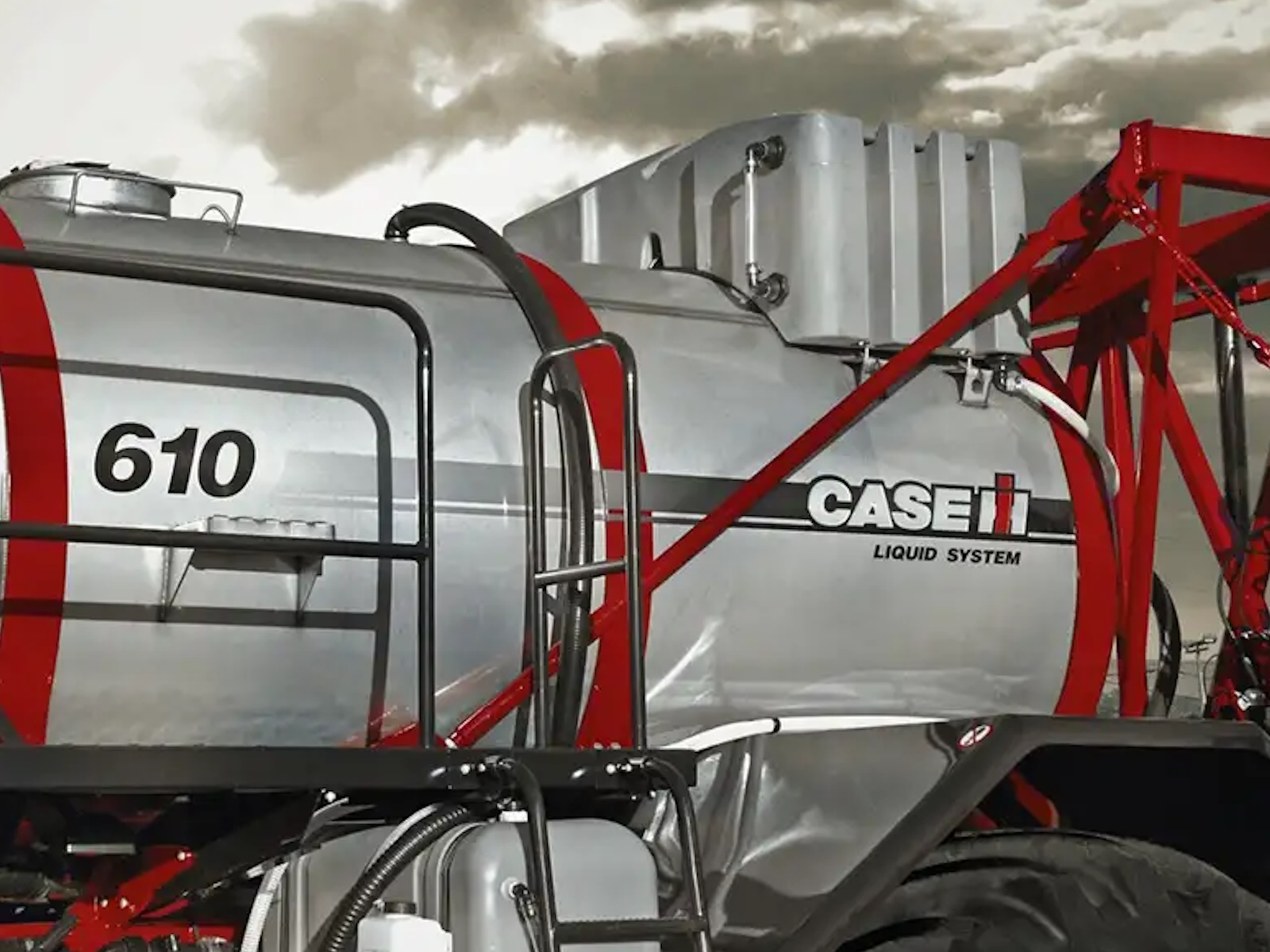

Tanks

Whichever tank size you choose, you get solid design and long-lasting construction

• Available in 1,800 and 2,000 gal (6,814 and 7,571 L) capacities
• Constructed from 12-gauge, 304 stainless steel
• Internal baffles (one on the smaller tank and two on the larger tank) provide stability
• Full-length sump for uninterrupted product flow
• A 2 in (5.1 cm) removable sparge tube runs the length of the tank for continuous in-field agitation
• Optional fresh water rinse system cleans the tanks and reduces the chance of residual chemical contamination

Booms

• Available in either 70 or 65/85 ft (21.3- or 18.2/25.9-m) boom widths
• All booms are self-centering
• Hydraulic leveling cylinders maintain the boom’s centered spraying position, keeping the centering chains tight
• Hydraulic accumulators attached to the main leveling cylinders absorb vertical shock loads
• Outer breakaways absorb horizontal shock loads through a combination of shock absorbers and spring
• The boom is brought safely back to its original position once the obstruction is cleared

Plumbing

• The 610 Liquid System features the hard-working, hydraulically controlled Defco 7600 pump
• Pulse Width Modulation (PWM) controls the pump speed to accurately deliver the proper rate of product
• Precise control of pump speed reduces wear on the impeller and internal components
• Pump housing alignment further enhances system efficiency and productivity

Service

When application windows are short, time is money. The Case IH 610 Liquid System features an operator-friendly service center for loading product, chemical induction, foam tank filling and foam concentrate transfer — all completed from one location.

• Hydraulically-driven pump features a large load valve for quick tank fill
• A side ladder provides access to the walkway and tank top during reloading
• Remote electronic controls allow the operator to adjust engine speed and product pump speed while manipulating the mechanical product valves
• A large red “panic” button allows your to shut down the system in a hurry, if necessary
• A remote-mounted light provides visibility in low-light conditions

Leading the Industry

Get more out of every season. Whether applying liquids, granular materials, or both, ride high in a machine designed to meet the needs of professional applicators. Combine a rugged 3- or 4- wheel Titan series Floater with either the big tanks and efficient plumbing of the 610 Liquid System or the precise co-application flexibility of the FA 1030 Air Boom applicators you can cover more acres, more accurately.

Features May Include:

Engine

Productive Power

• Available in two horsepower ratings, the Titan 40 Series’ diesel engine features the world-class innovations of FPT Powertrain Technologies. This 8.7-liter engine is designed to meet tough conditions while delivering optimum fuel efficiency and ease of service.

Operator Environment

More Comfort Means More Acres

• When application windows are narrow and every hour in the field counts, operator comfort is no luxury - it's absolutely essential. Air-ride seating, ergonomically placed, easy-to-reach controls and an ultra-quiet interior are just a few of the features that let operators work longer with less fatigue.

Control Options

Optimum Control, Maximum Efficiency

Viper 4+

• 12.1-inch Touch-Screen Interface
• Displays boom status, application rate and pressure readings
• Functions as a stand-alone rate controller or it can be an integral part of guidance or mapping systems
• Available for the FA 1030 Air Boom Applicator and 610 Liquid System

RS1 Autoguidance

• Compatible with the Viper 4+ controllers
• Guidance, GPS receiver and Slingshot® functions all in one component
• Includes fleet management, wireless data transfer, remote diagnostics and over-the-air-updates

Optional 392 Receiver

• Factory installed GNSS receiver capable of a wide range of accuracy levels.
• Can utilize WAAS and RangePoint RTX (subscription purchased separately)
• Requires Pro 700 display and AccuGuide autoguidance system for repeatable guidance

3-Wheel Floaters

Durable and Responsive Design

• From its solid, durable frame to robust drivetrain, a Titan 40 Series 3-wheel chassis is designed to work as hard as the rest of your crew during your application windows.

4-wheel Floaters

Handle the Most Demanding Field Conditions

• 4-wheel Titan 40 Series Floaters are built to withstand heavy loads while at the same time offering a more comfortable ride. Available with either a 340 hp or 410 hp engine.

Maintenance & Uptime

Run Better, For Longer

At Case IH, "maximum uptime" is one of the pillars of every product we offer. That means designing and building equipment that optimizes time in the field every day. Get in the field faster and stay there longer with time-saving features:

• Front-tilt hood for access to the engine, coolers and daily checkpoints
• Swing-out grill for radiator and cooling system maintenance (4-wheel floaters)
• Swing-out compartments on each side (3-wheel floaters)
• Ground-level service to the air tanks
• Convenient swing-out steps on 3-wheel models
• Halogen or LED lighting choices to extend the workday
