2026 Brillion 330D-1-42

2026 Brillion 330D-1-42

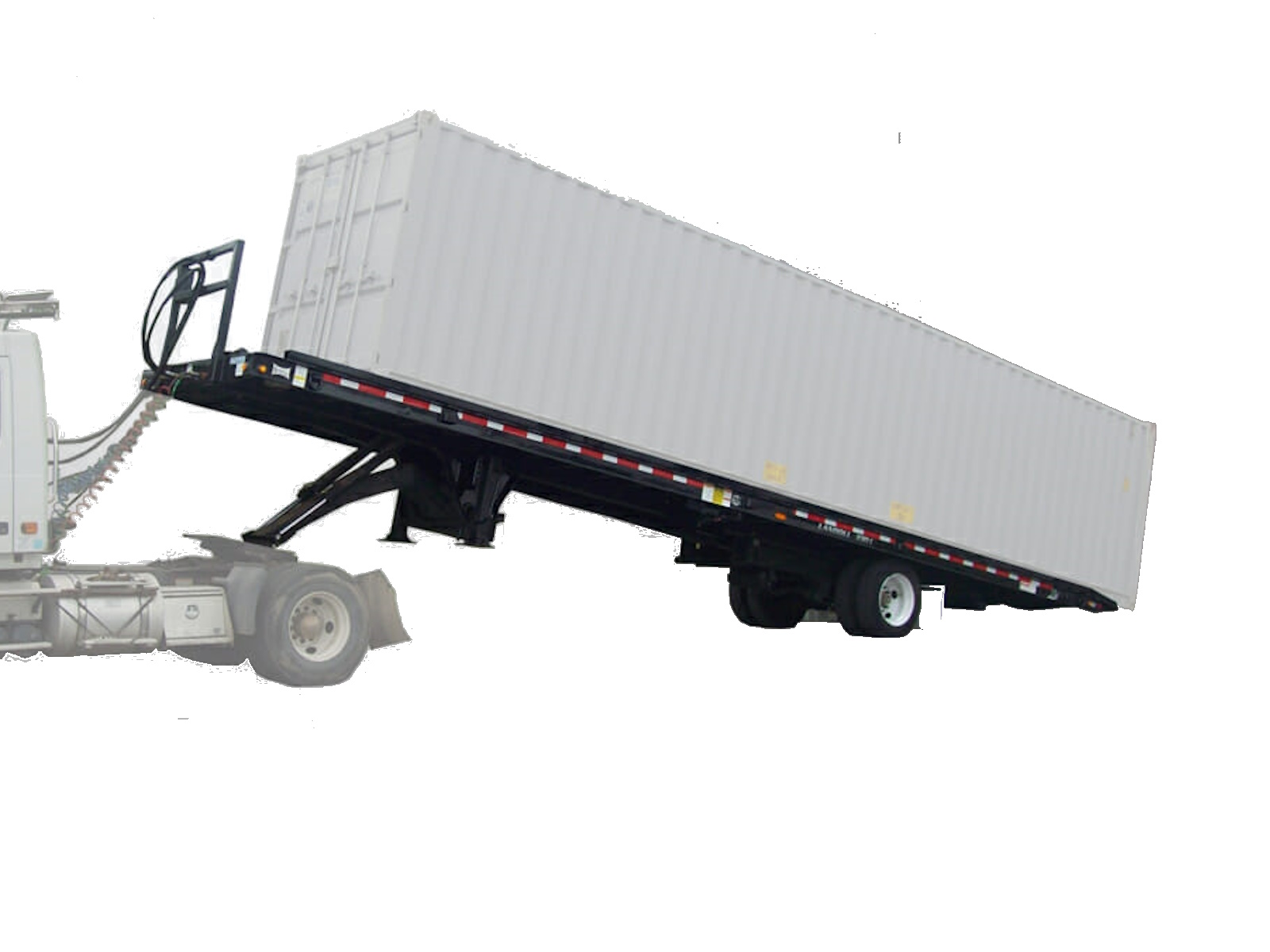

FULL-FEATURED CONTAINER HAULING

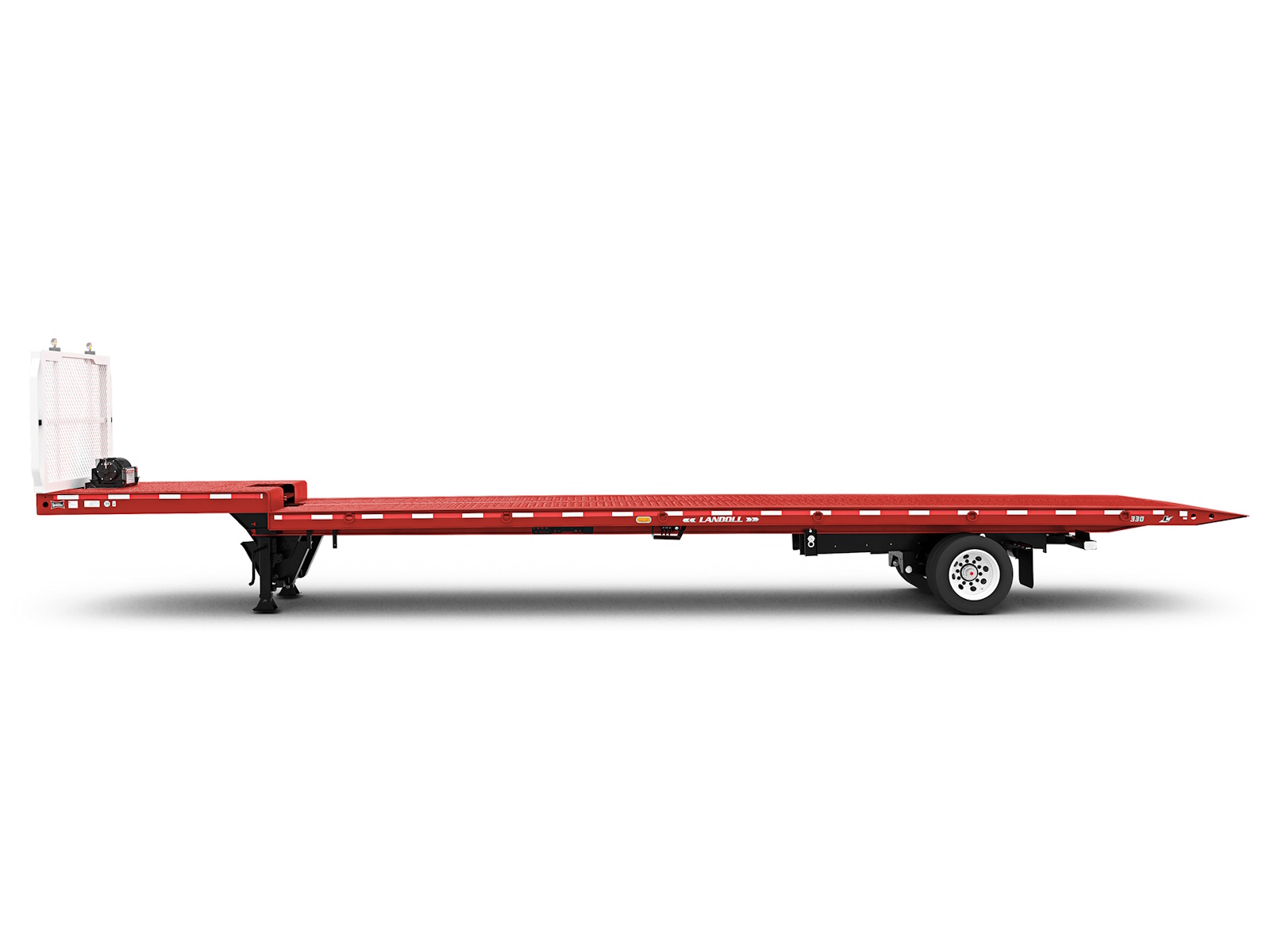

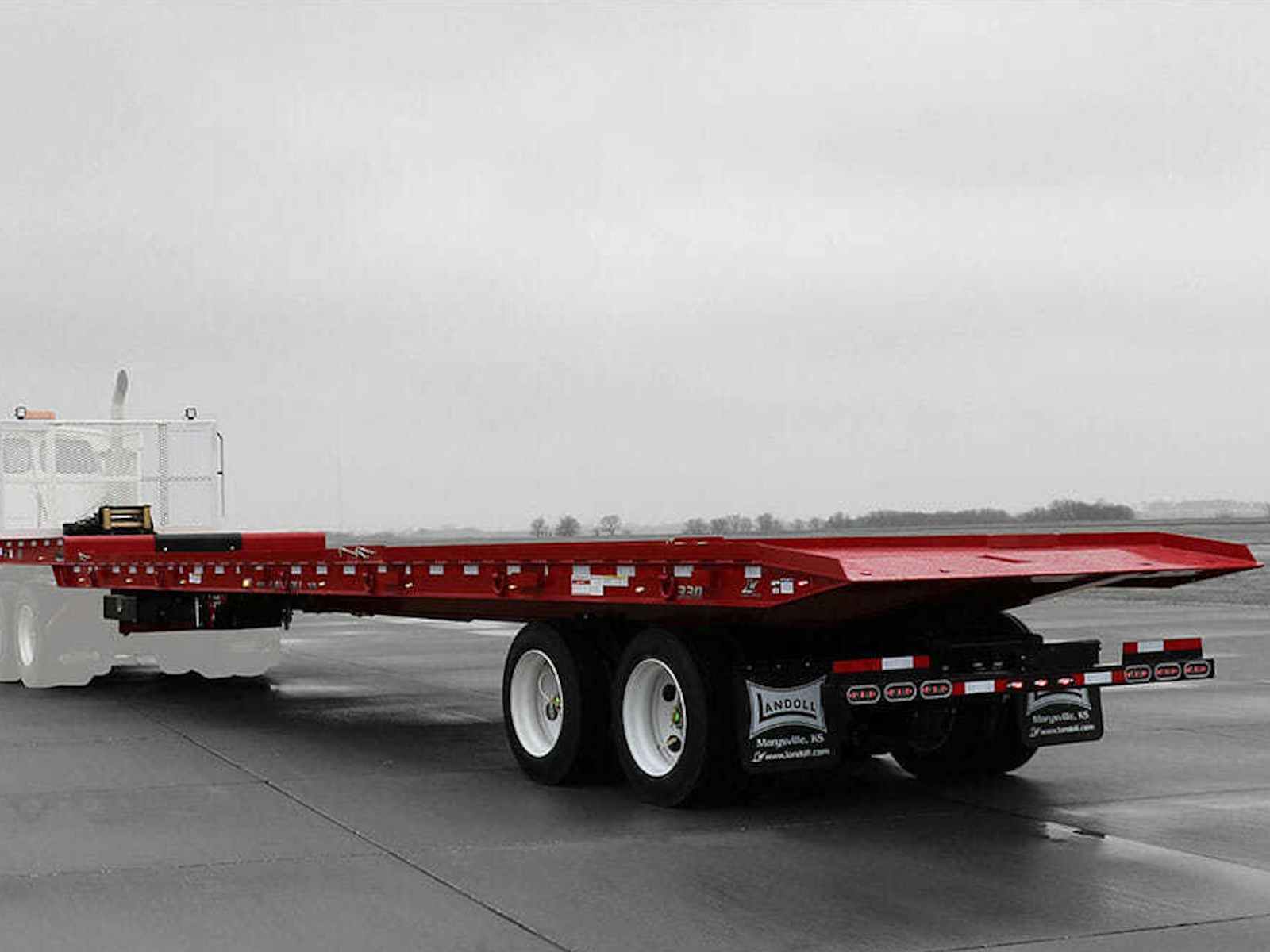

The 330D container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 5/16” skid plate and side rail built in. The full-width solid approach plate has four keyhole tie-downs. The 330D is also available with a single drop frame to haul high cube containers

VERSATILE FULL-TILT DESIGN

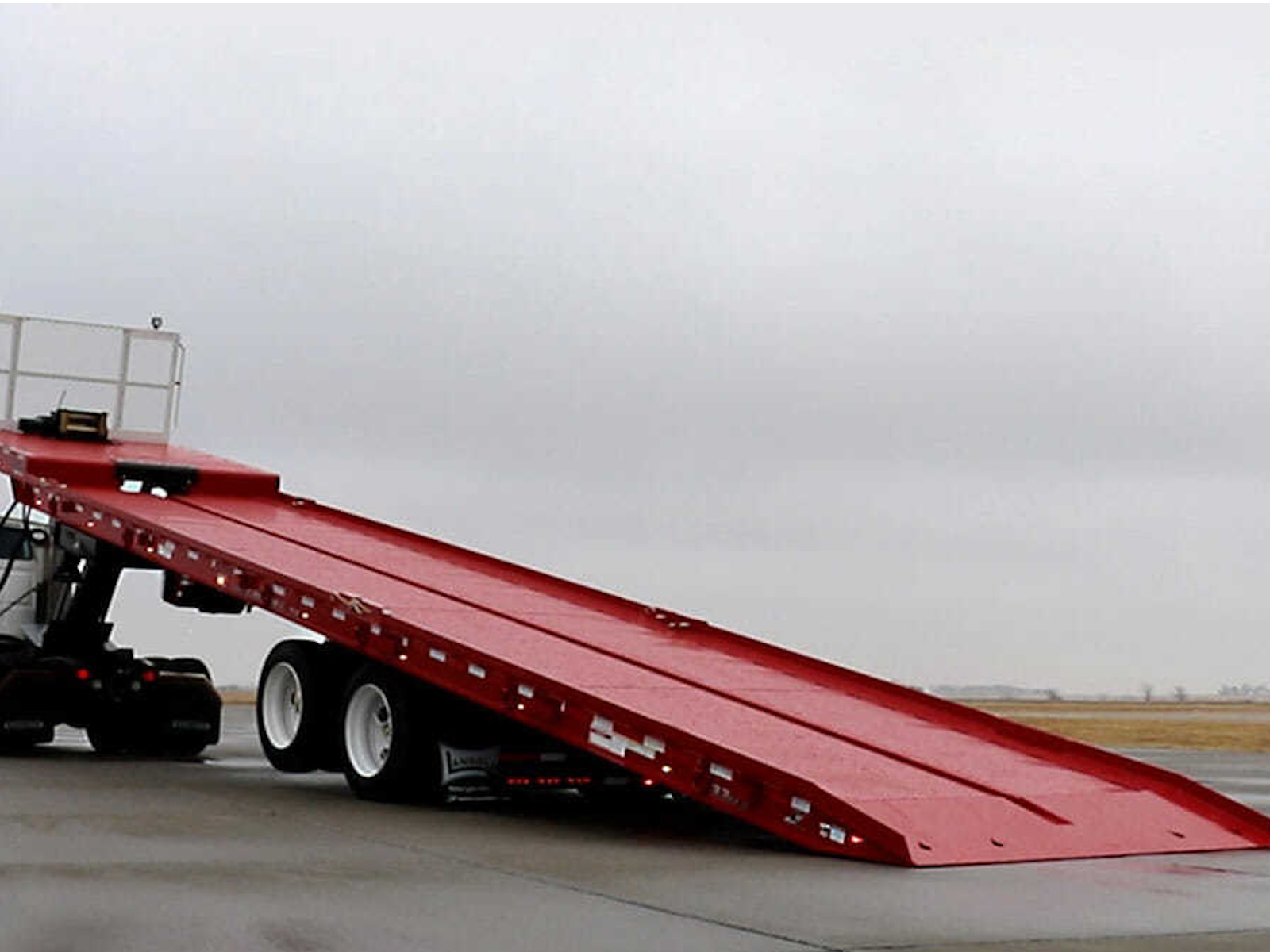

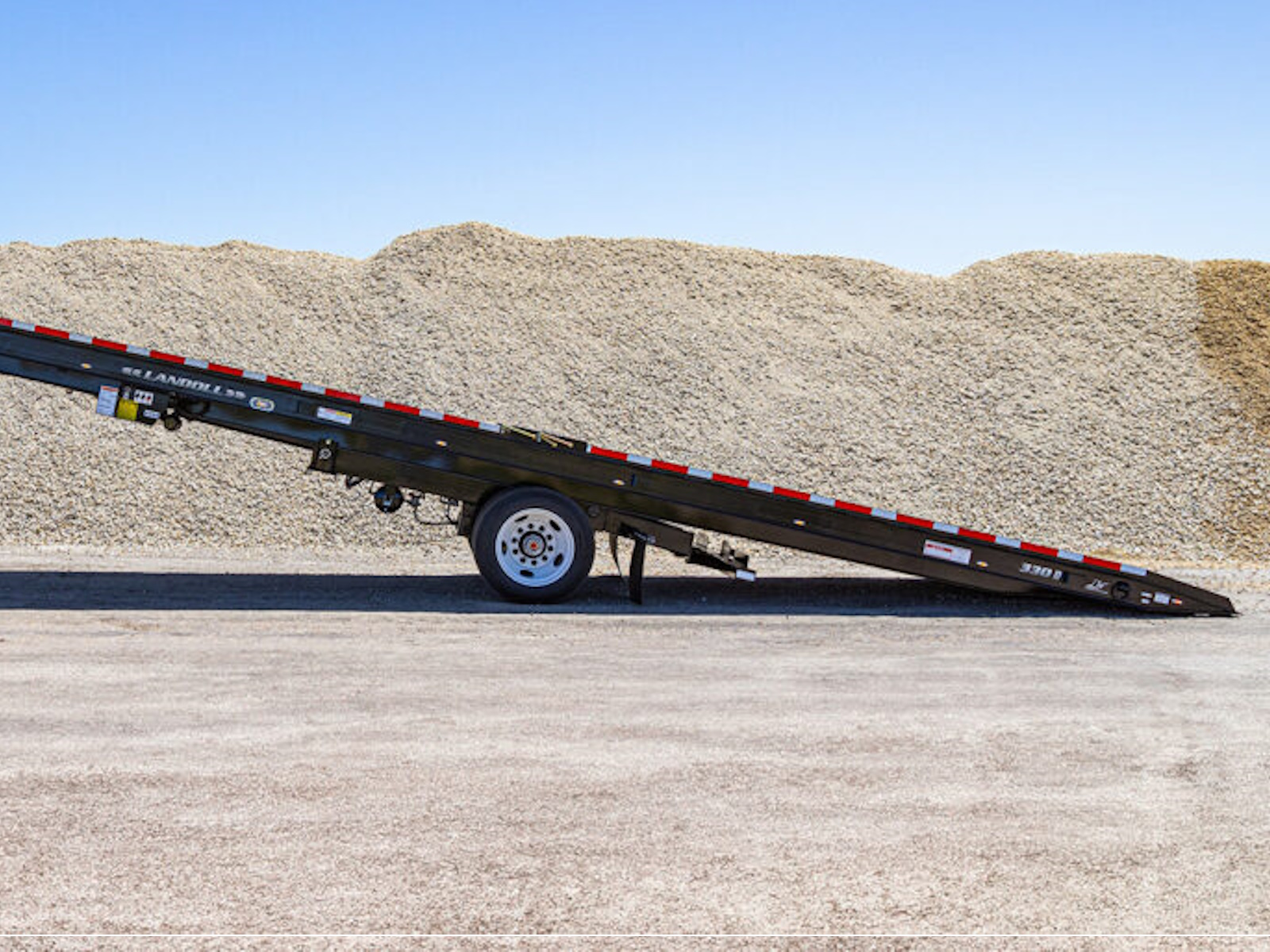

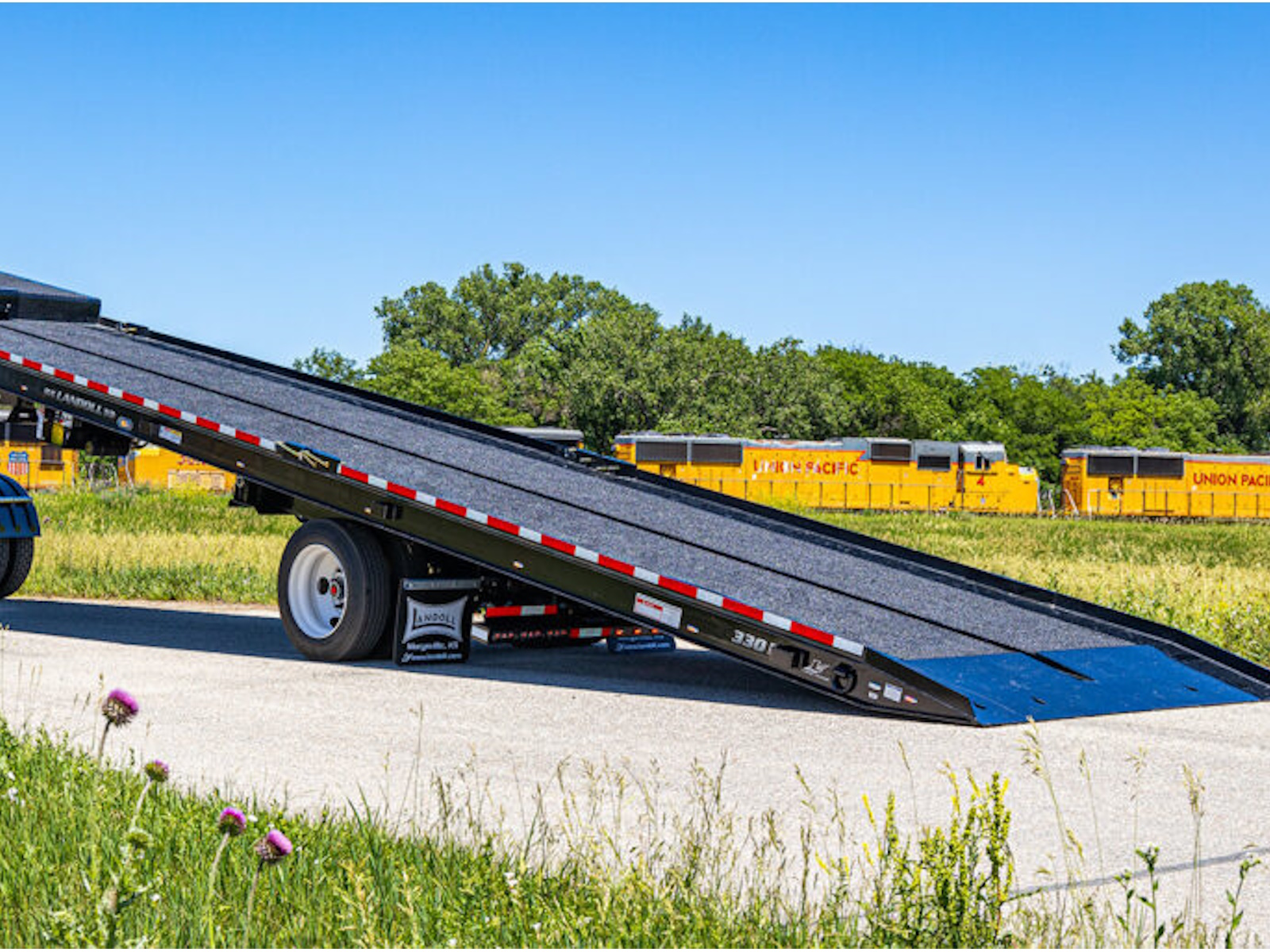

The tilt design provides a 12° load angle that allows container placement with hydraulic control at all times. Place containers right on target – beside buildings, in alleyways, or behind and within retail warehouses.

EASY LOAD & TRANSPORT

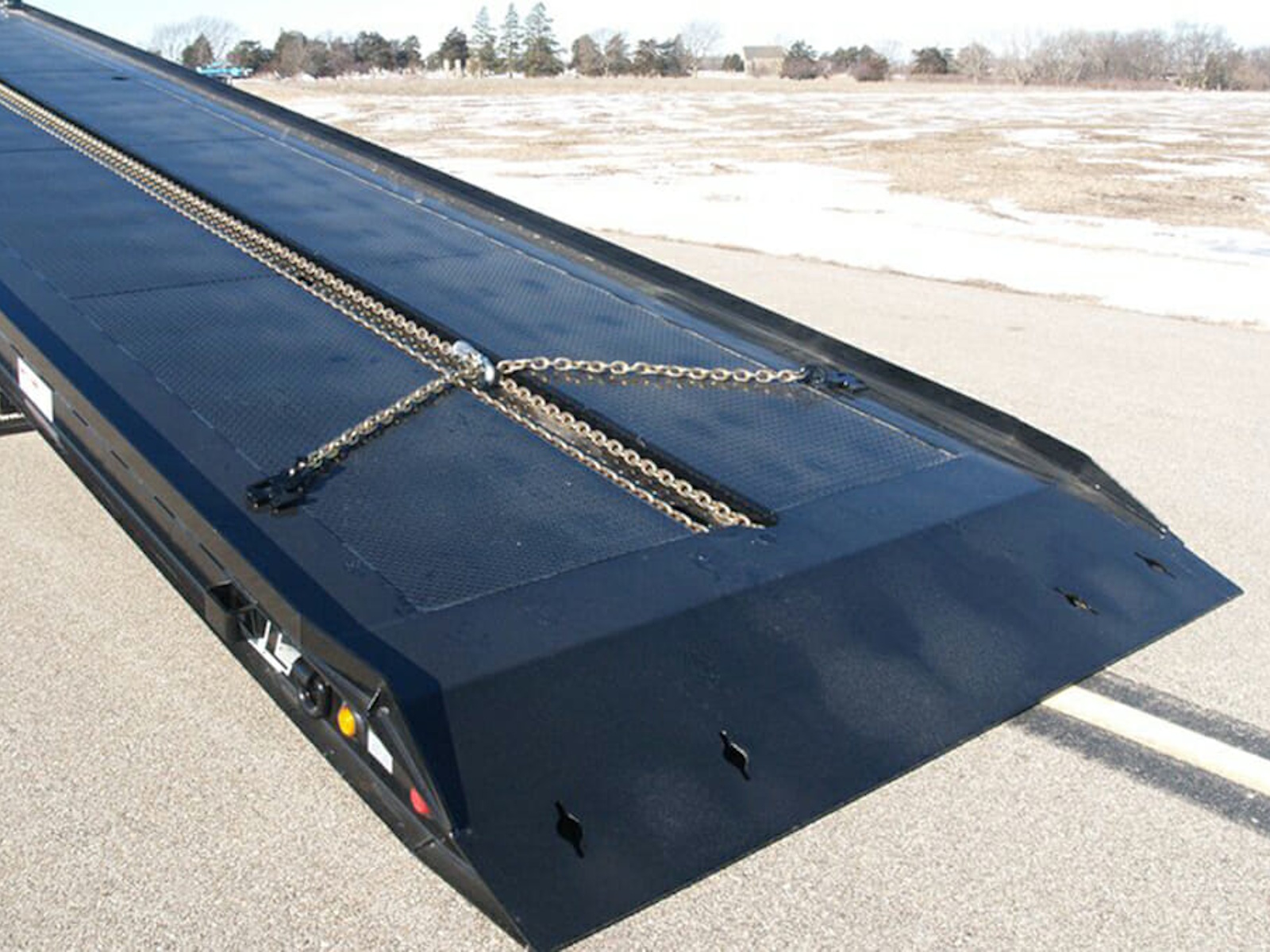

Choose the optional Chain Drive Load System to move multiple boxes on the same load. Other equipment includes full 25,000-lbs. air-brake axles, spring brakes, and 255/70R 22.5 tires. Built with a rugged frame and heavy-duty components, it’s a trailer that will perform for years.

Features May Include

• Capacity*    8 Ton (16,000 lbs.)
• Deck Rating    10,000 lbs. in 10′
• Estimated Base Weight    15,000 lbs. (48′) +/-3%
• Main Frame    Fabricated 80,000 PSI Yield Beams
• Crossmembers    18″ Centers
• Pin Setting    30″ (18″ at 90° Drop)
• Swing Clearance    72″
• Deck Width    102″
• Loaded Deck Height    42″
• Decking    1/8″ Steel Tread Plate, 5″ Cable Trough – Full Length, Formed Angle Skid Plate / Side 5/16″ x 12″ x 3-1/2″
• Load Angle    12°
• Tie Downs    (4) D-Rings – 2 per side, (4) 4″ Strap Ratchets Curbside with Opposing Hooks Street Side
• Parking Stands    Jost Two Speed Landing Gear

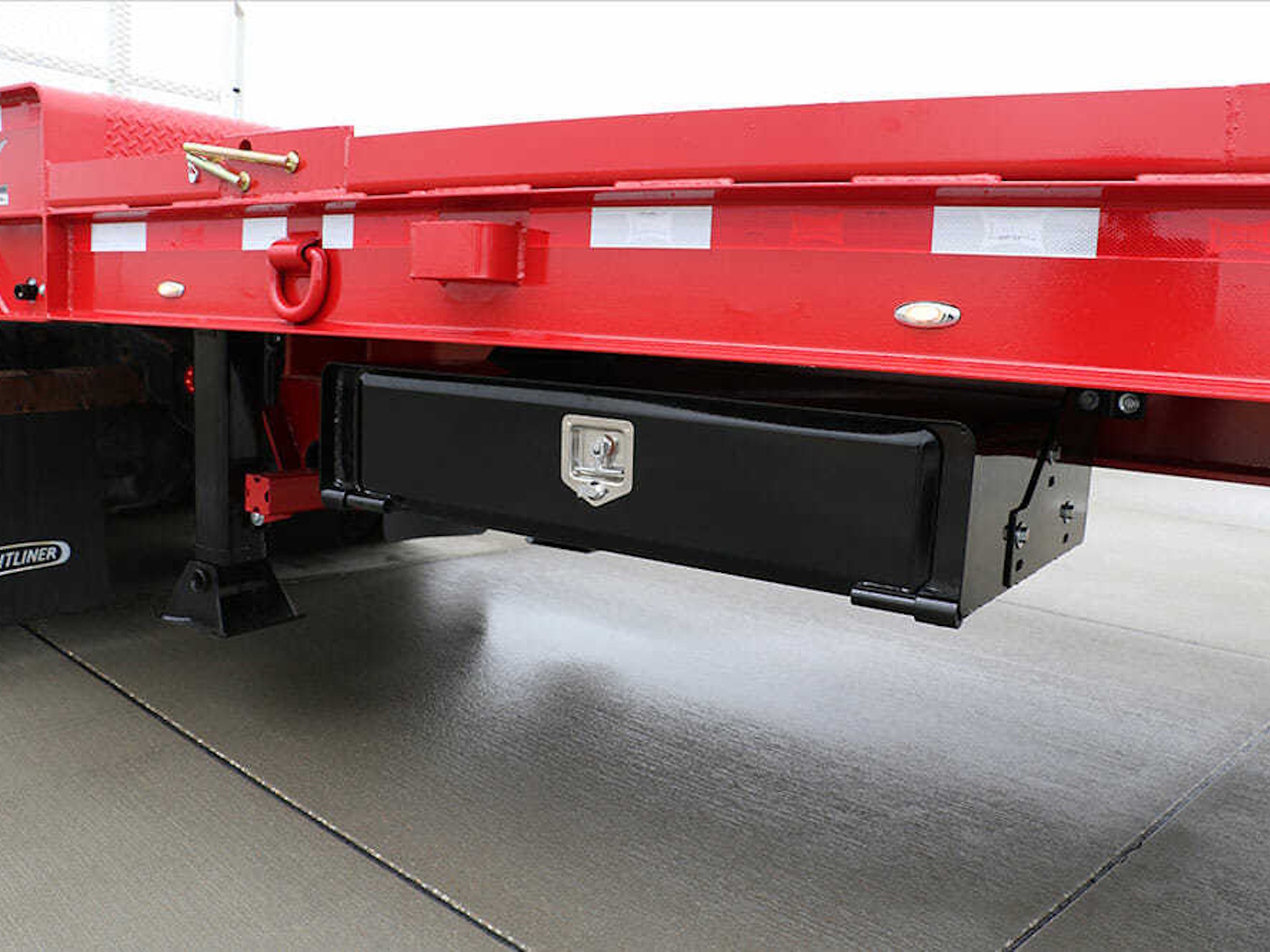

• Accessories    29″ Approach Plate with 4 Keyhole Tie Downs, 1 Pair Adjustable Container Stops (N/A with 90° DD Frame Option), 1 Toolbox, (42″W x 28″ D x 9″H)
• * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
• Suspension    Transpro Mono Leaf, 25,000 lbs. Capacity
• Undercarriage    Centralized Grease System; Powder Coated Black

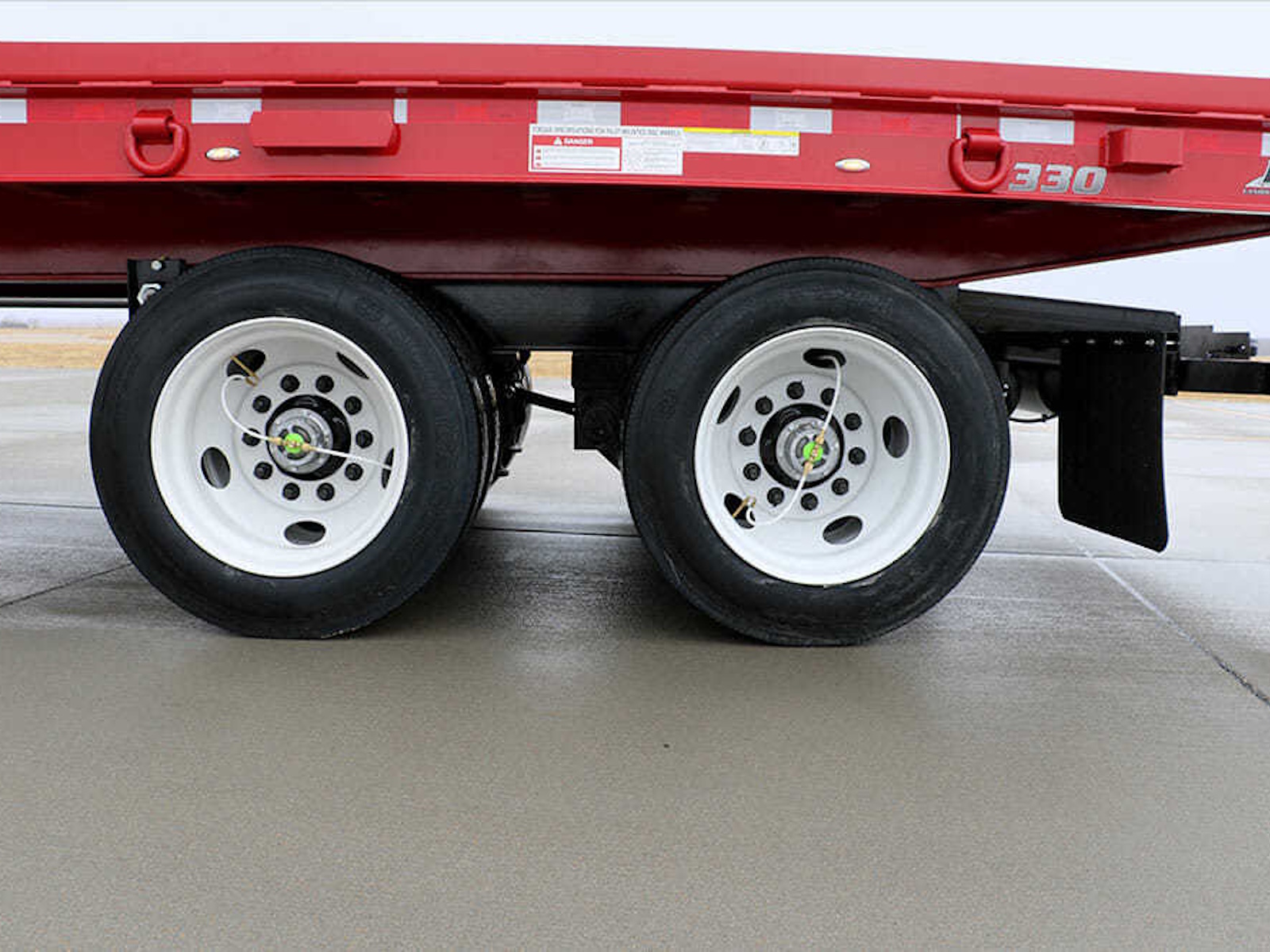

• Axles    (1) 25,000 lb. Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters
• Axles Prepped for Air Inflation
• Brakes    16.5 x 7 Full Air / Spring Brakes ABS, 2S1M
• Tires    255/70R 22.5 LRH Double Coin
• Rims    22.5 x 8.25 Tubeless
• Wheels    Steel Hub Pilot
• Oil Seal Hubs    Internal Mated Assembly
• Hydraulic Hook Up    3/4″ 150 Quick Couplers

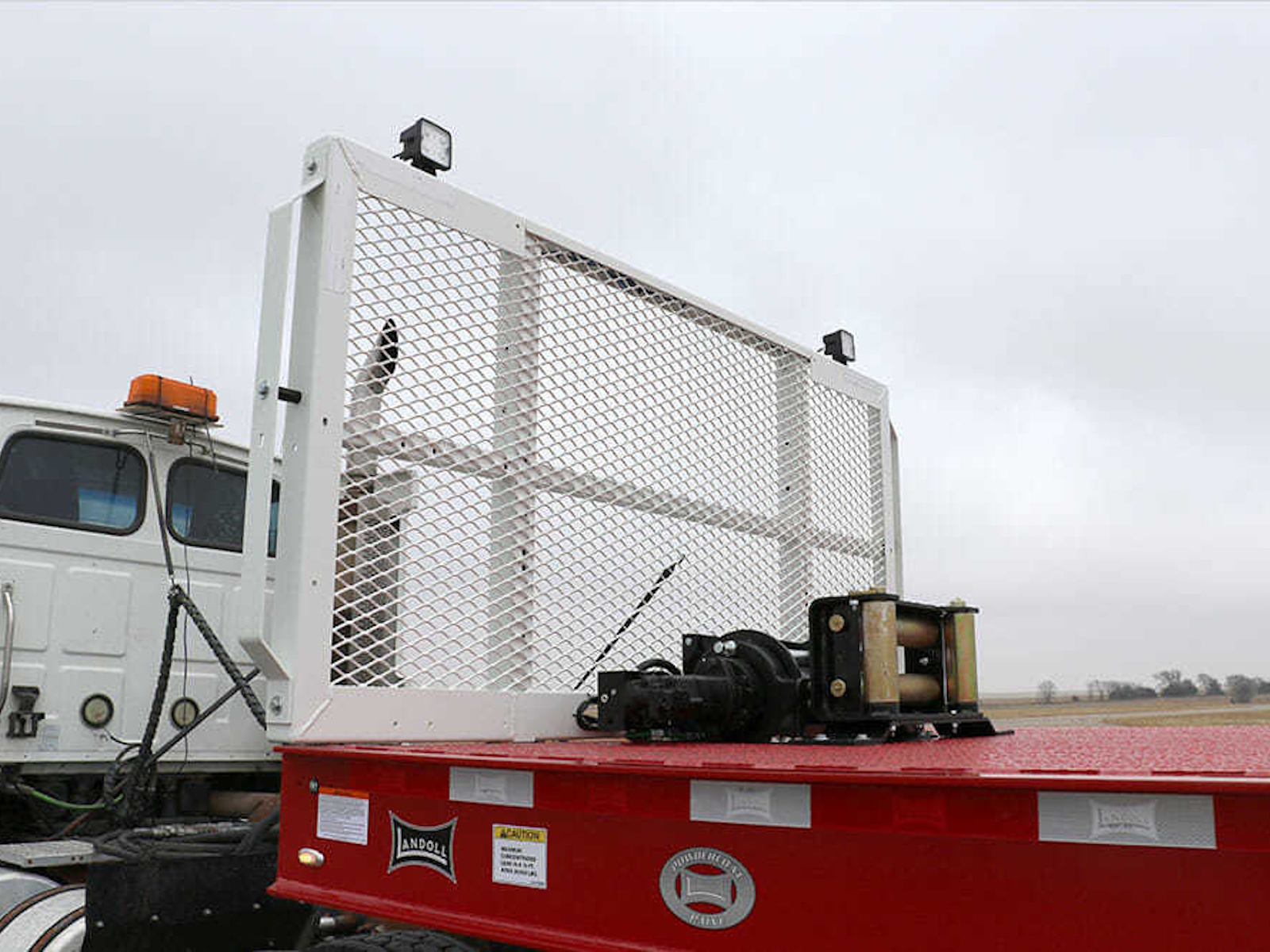

• Hydraulic Winch    12,000 lbs. Worm Gear with Spring Tension and 85′ of 1/2″ Cable
• Hydraulic Valve Body    Rexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max
• Hookup    7-Way Receptacle
• Lights    Grote MicroNova® LED Clear Lens (10-Year Warranty)
• Wiring Harness    Grote “Xtreme” Wiring Harness (7-Year Warranty)
• Finish    Steel Grit Shot Blast to Bright Metal
• Powder Coat Color    White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue
• Decals    Hi-Visibility Reflective Package
