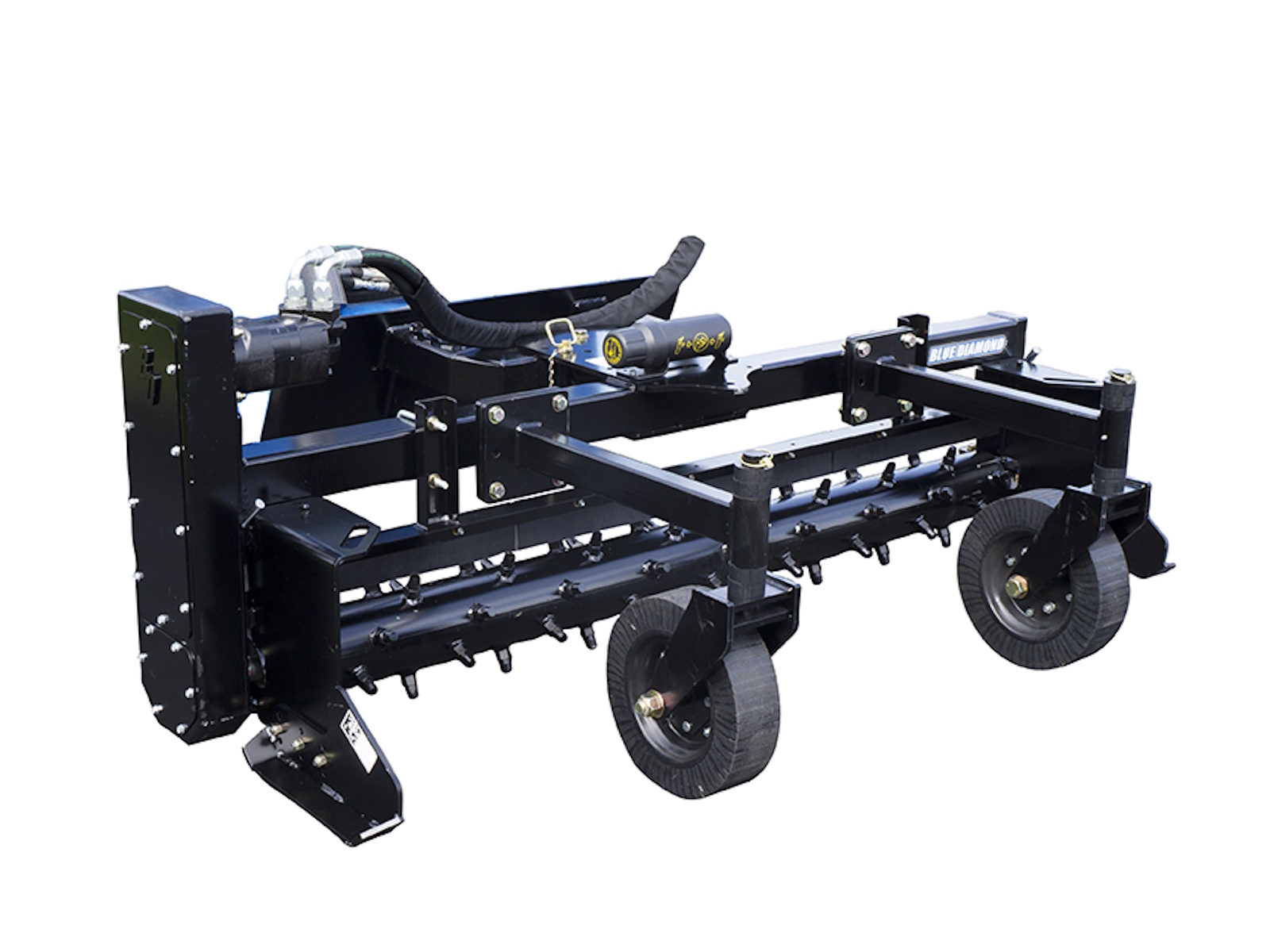

2026 Blue Diamond Attachments Power Rake – Extreme Duty 132115

2026 Blue Diamond Attachments Power Rake – Extreme Duty 132115

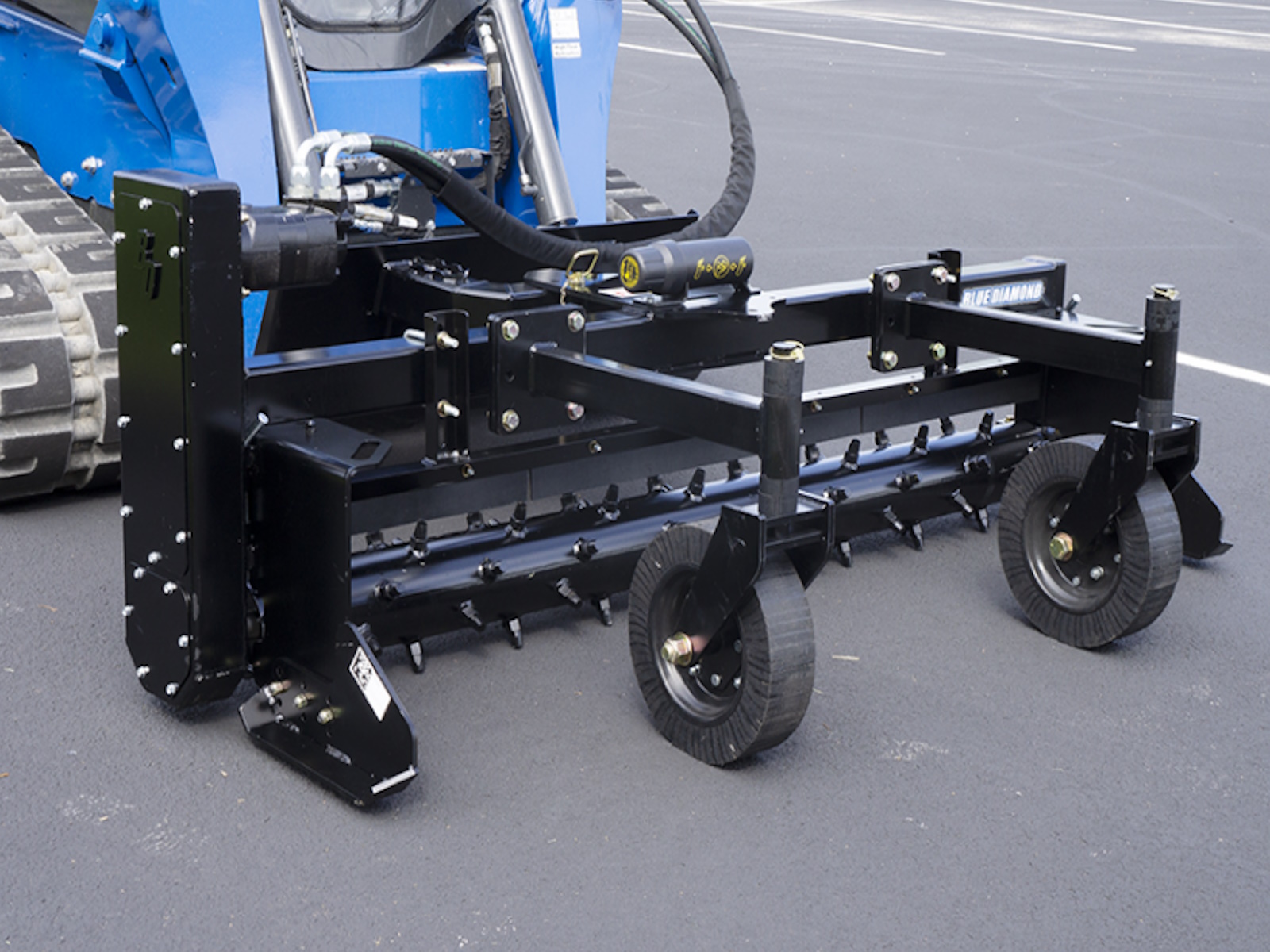

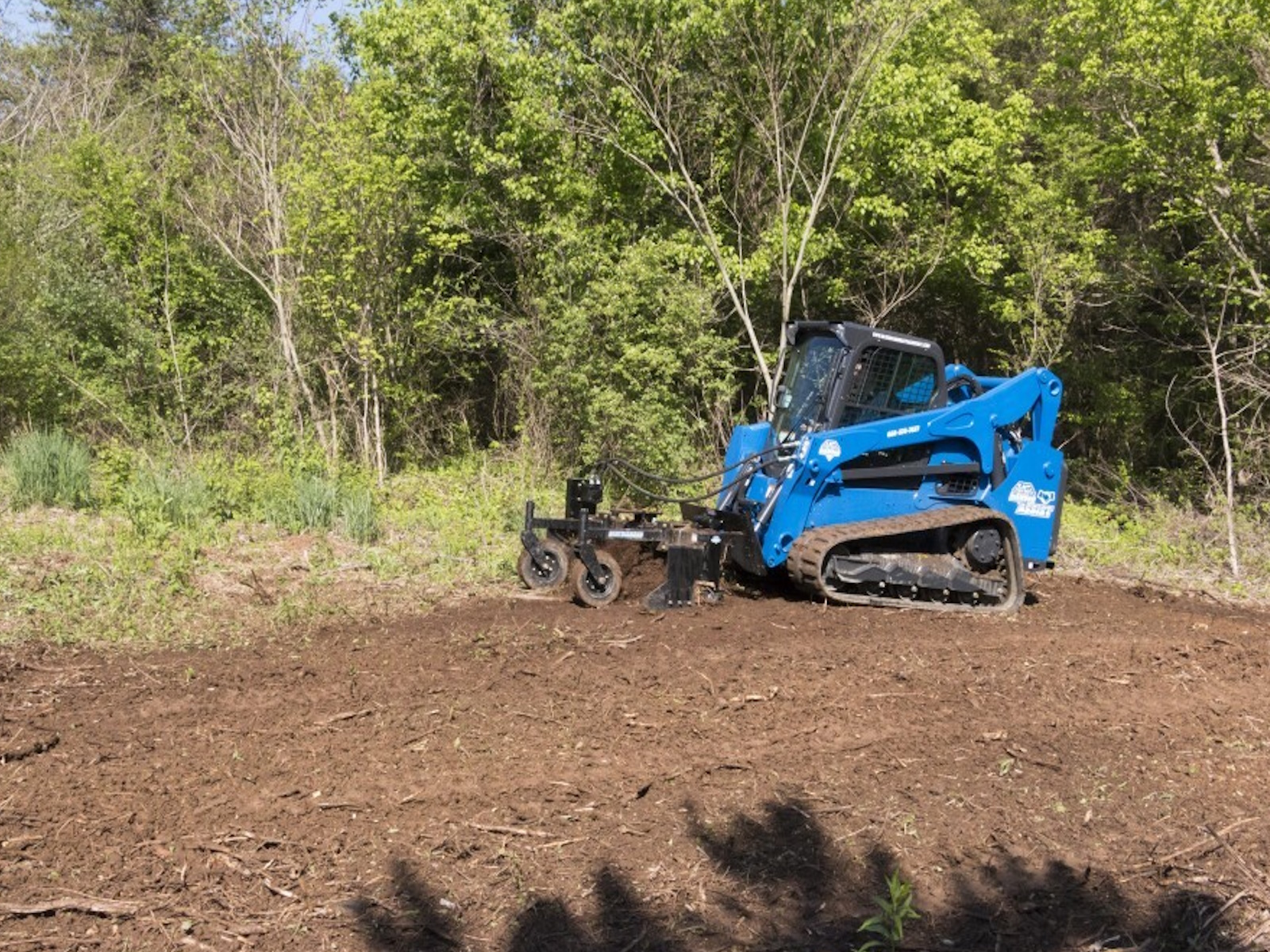

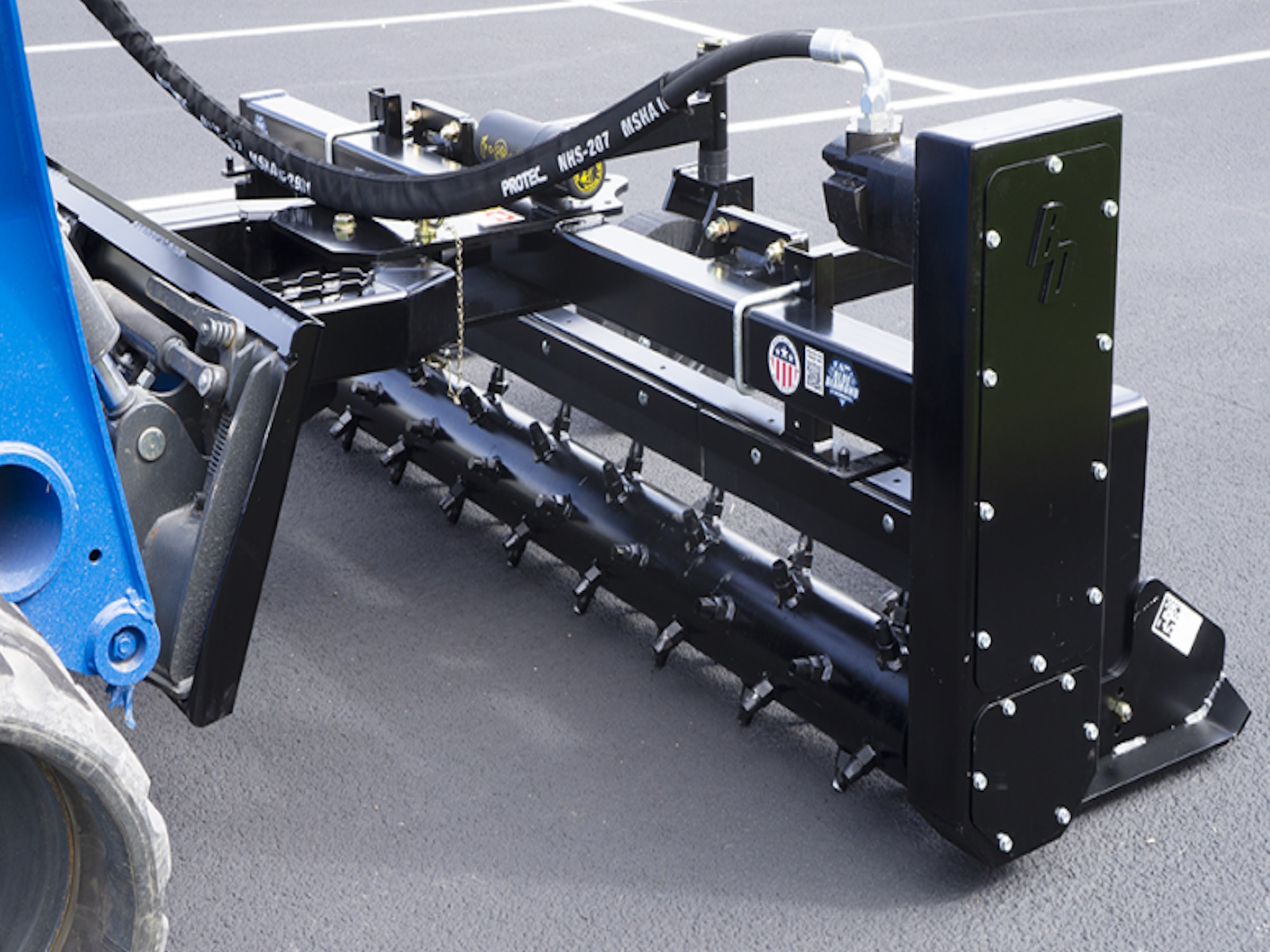

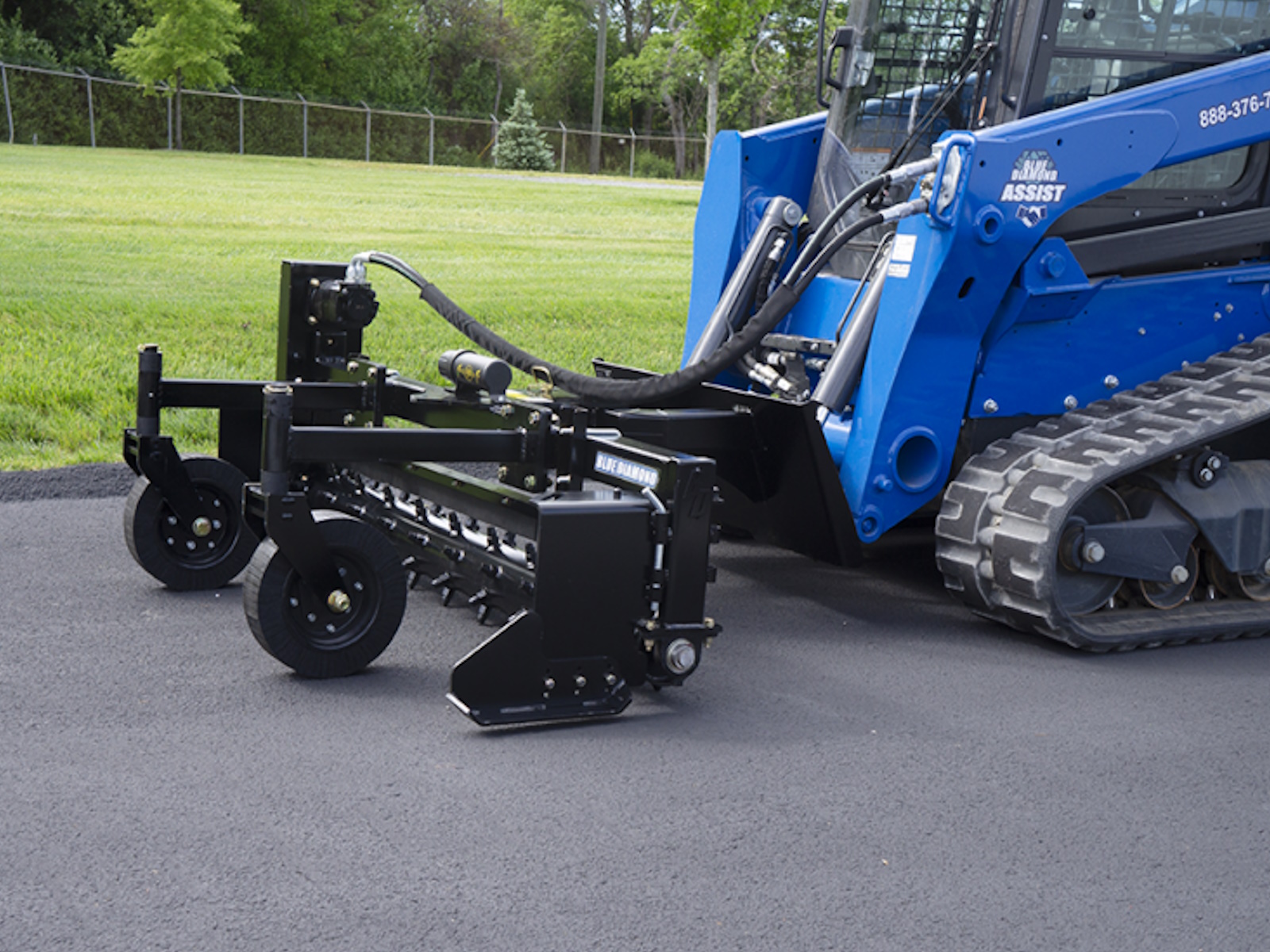

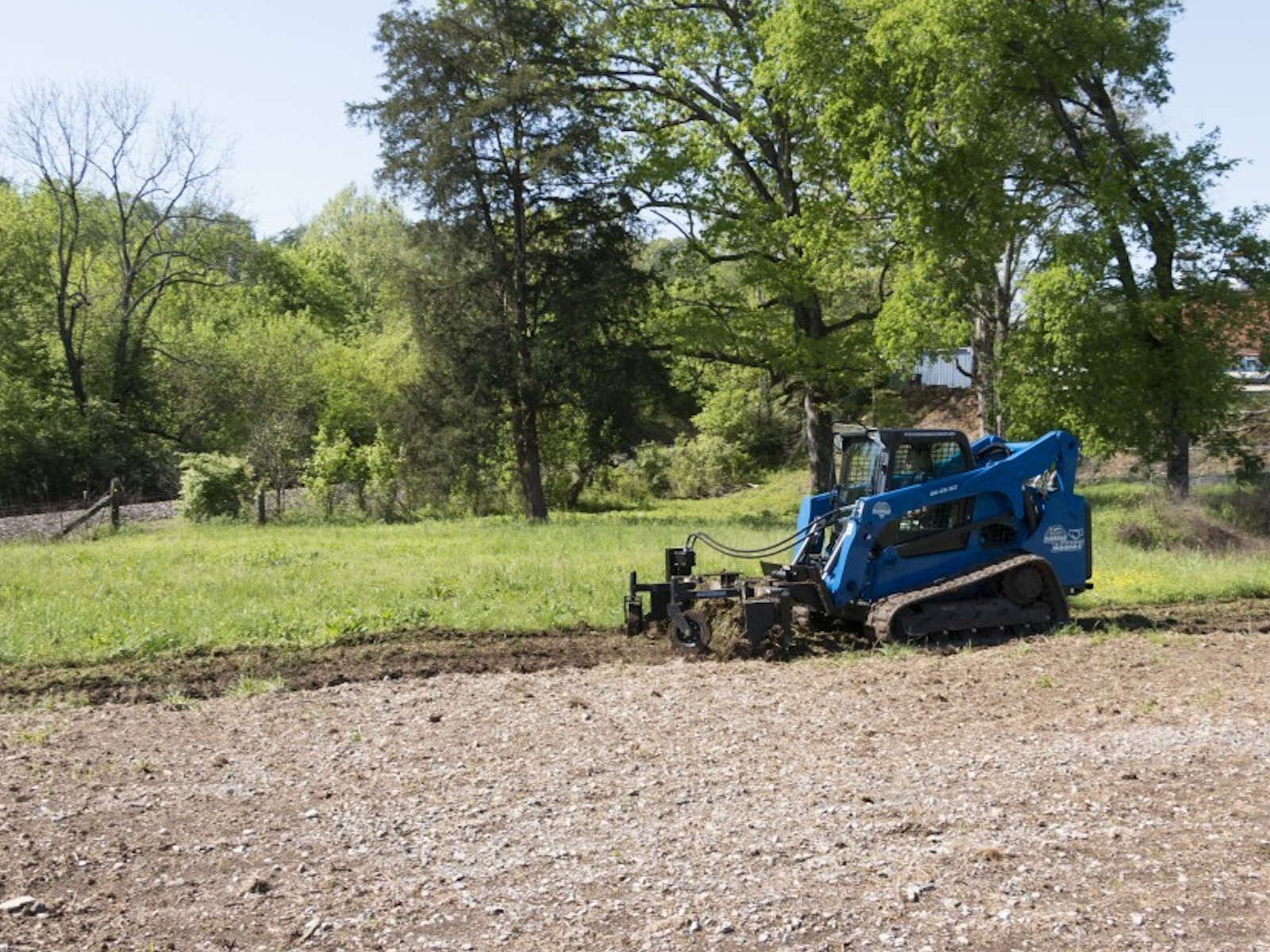

With machine sizes increasing in the industry, there is a need for a more powerful and durable power rake / soil conditioner attachment. The Blue Diamond Extreme Duty Power Rake is designed to power through jobs where others fail, and is set up for simple servicing. The low speed, high torque Geroler hydraulic motor and optimal drum size produce maximum torque, and the motor is kept out of the way, maximizing usable width in tighter areas. Aggressive 2" teeth are ideal for leaving a fresh seed bed with fewer passes. Our rental customers are finding this unit rents more often, is asked for by name, and the customers love the increased productivity over all other brands! Rental Reommended.

*Over 3,000 PSI requires a case drain.

Features May Include:

• Low speed, high torque Geroler Hydraulic motor
• 4" x 4" square tube frame
• 18 - 26 GPM hydraulic flow, max 4000 PSI
• Optional replaceable teeth versus fixed teeth that require welding to replace
• 1.5" spindle on castors with spacers versus friction adjusters that work loose
• Airless tires - no flats
• 1" front wheel axles versus competitive ¾”
• 1.5" motor shaft and high pressure seals
• 5 position, 20 degree angle, manual or hydraulic
• Optional bolt-on skid shoes add 30% load capacity over side plates alone
• 6 3/4" drum diameter, 10 3/4" including teeth
