2024 Alloway Alloway Windrow Shredder 18 FT

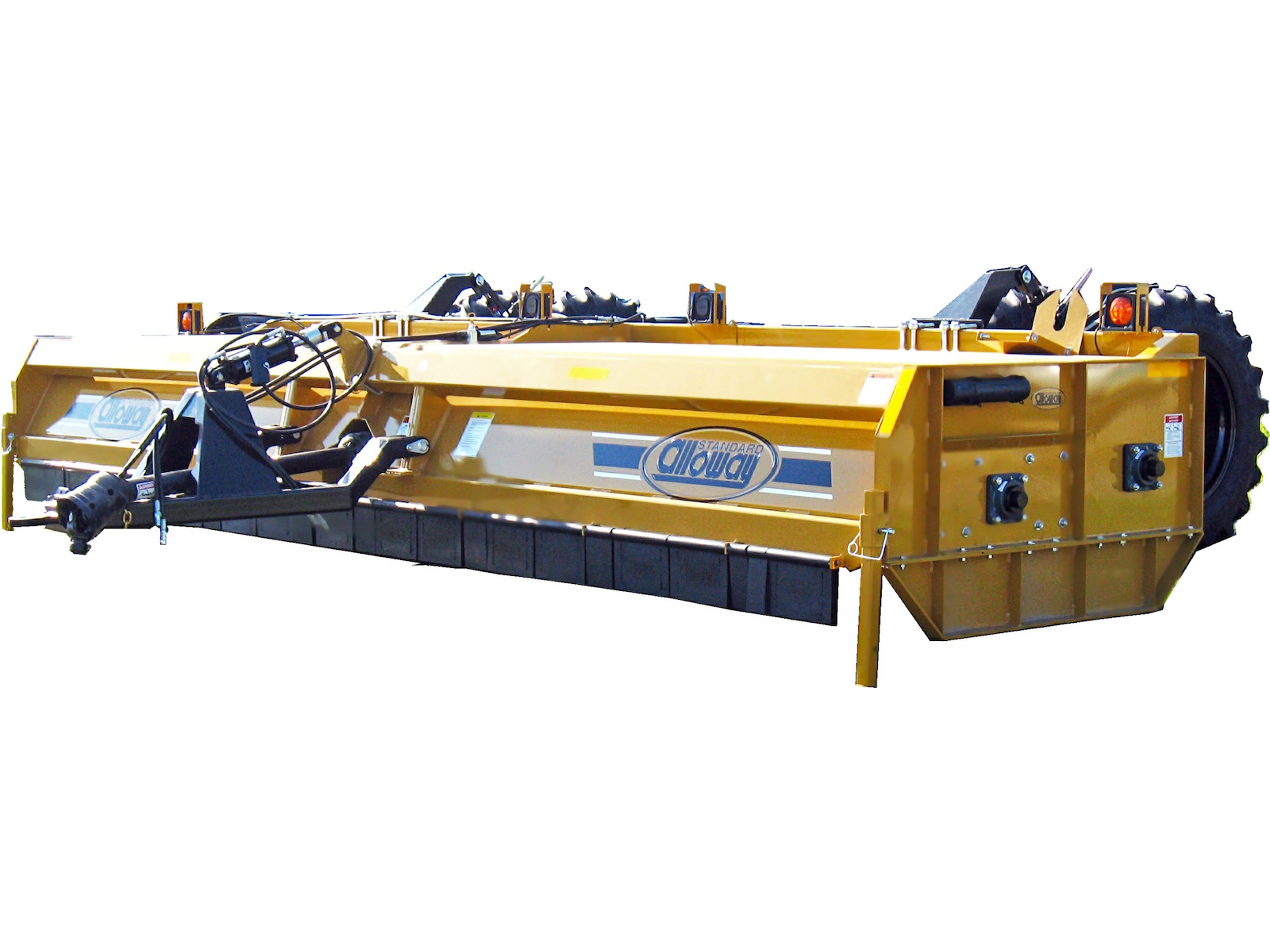

2024 Alloway Windrow Shredder 18 FT

Heavy Duty Windrow Shredder
From the originator of the Tri-Lateral Hood design and spiral mounted flail tubes, the Alloway Shredder has always been #1 in performance and durability. Alloway is back in the business of manufacturing a top-quality shredder line with a new heavier body, larger aluminum gearbox, 10” flail tubes, large tire options. We can keep up to the extra tough crops grown today.

Features may include:

• Heavy Duty Tri-Lateral Steel Body is ¼” thick throughout for extra strength, extended wear and quadruple shredding action. Contoured to create turbulence for triple shredding action.
• Rear Struts with screw jacks (optional hydraulic) allow for easy leveling and height adjustment.
• Centrally Mounted Gear Box eliminates extra belts, bearings, u-joints etc. Simplifies driveline.
• Optional Large Tires for longer wear and bearing life with 8 bolt hubs.
• Floating 3-Point Hitch provides smoother action, reduces hitch stress and pressure.
• Skid Plate helps prevent the machine from bottoming out and keeps rotor and knifes out of the dirt.
• Large 10″ Seamless Steel Flail Tube is dynamically balanced for smooth operation and has replaceable end shafts.
• 2-3/16″ Diameter Flail Tube Shafts and Bearings are double sealed for improved load capacity and bearing life.
• Spiral Mounted Flails were originally designed by Alloway for reduced pulsing and smoother operation.
• Heavy Duty Gear Box with extended housing for extra bearing support and larger oil capacity for cooler operation.
• Safety Light Kit is standard on all units and customized to each machine for added safety.
• Structural Steel Tube Cross Bracing for added support and stiffness of the frame.
• Center Hanger Bearing to allow faster auger speeds for high yielding crops. Center Bearings prevent shaft whip for smooth operation.
• Tapered Auger Trough to allow easy flow for high yielding crops.
• Bigger Hydraulic Auger Motor with more torque to easily handle high yielding crops.
